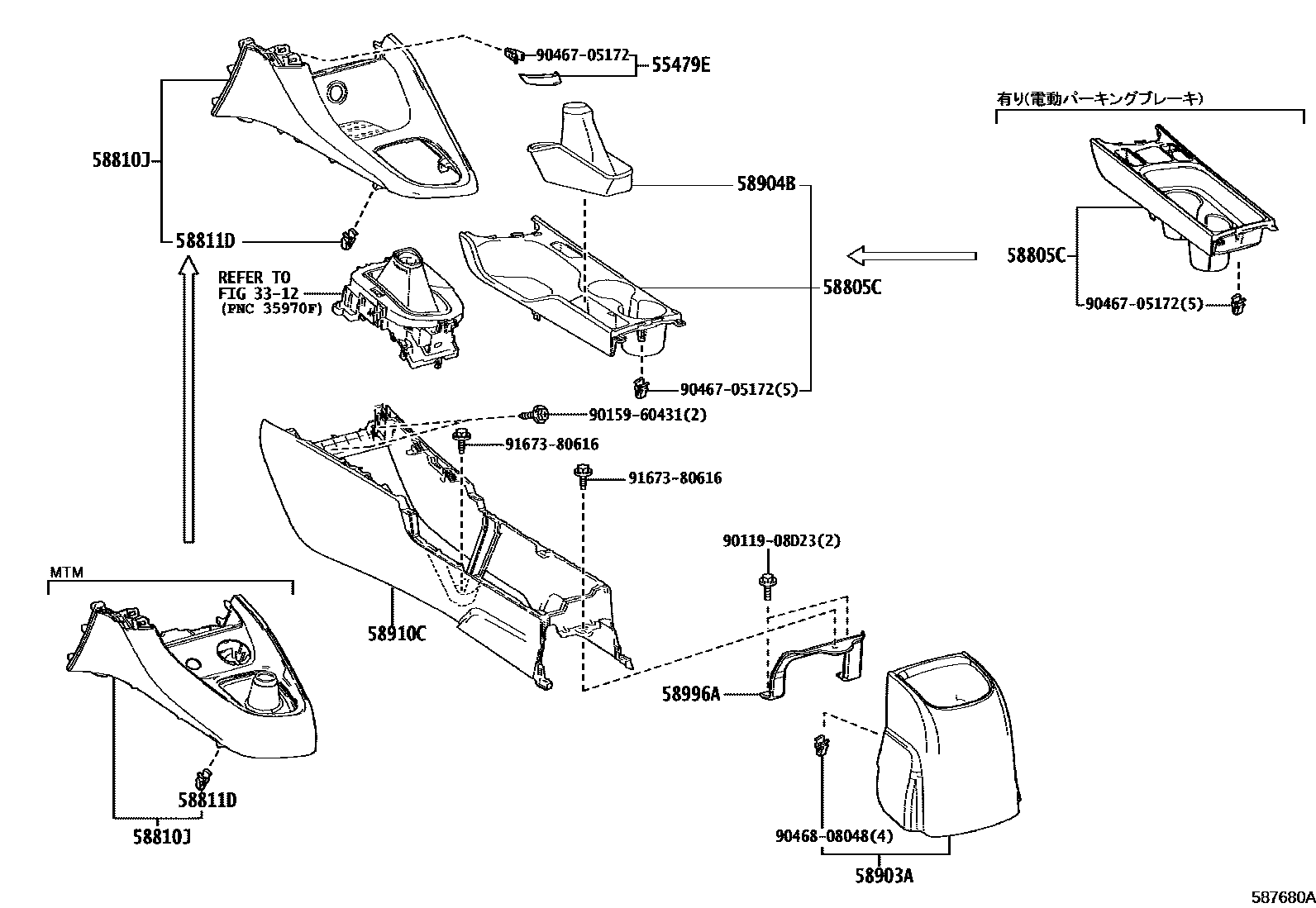

Toyota YARIS GR — CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
55479ECOVER, INSTRUMENT, LOWER CENTER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/MATTE BLACK,TRIM2#
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK/SILVER/GR RED,TRIM21
BLACK/SILVER/GRAY,TRIM20
BLACK/RED,TRIM3#
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK/GR RED,TRIM3#
BLACK/GR RED,TRIM21
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9011908D23
main90119-08D23
9015960431
main90159-60431
9046705172
main90467-05172
9046808048
main90468-08048
9167380616
main91673-80616
14 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota YARIS GR
This section contains 26 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS GR. Key components include: SHIFT LEVER & RETAINER, COVER, INSTRUMENT, LOWER CENTER, SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1, PANEL SUB-ASSY, CONSOLE, UPPER REAR, BOX ASSY, CONSOLE.
