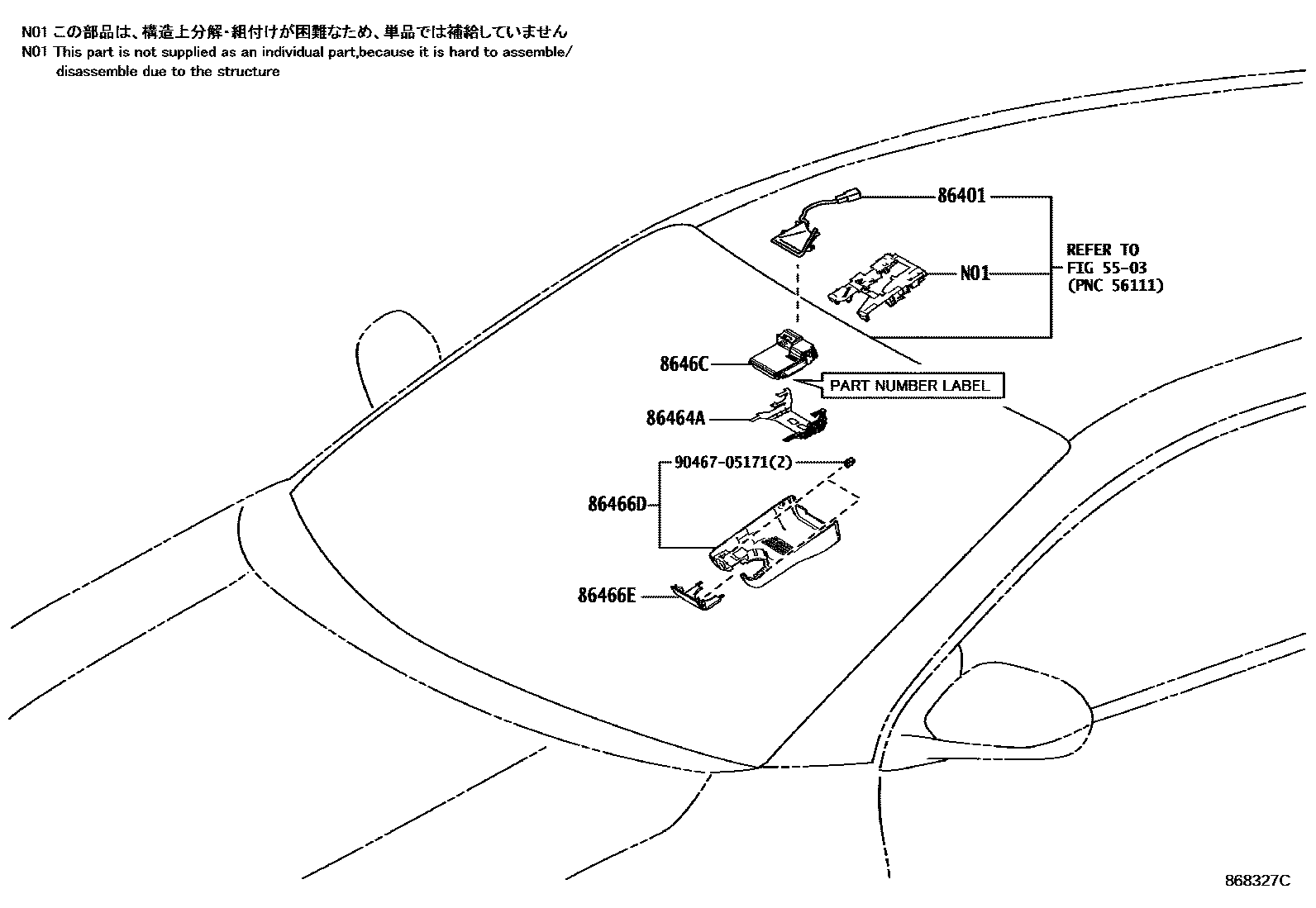

Toyota YARIS GR — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010

86464ALATCH, FORWARD RECOGNITION

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52160iGXPA16..LHD..EUR202404

IVORY COAST SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-52040iGXPA16..LHD..EUR202404

IVORY COAST SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-52440iGXPA16..LHD..EUR202404-202505

IVORY COAST SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
