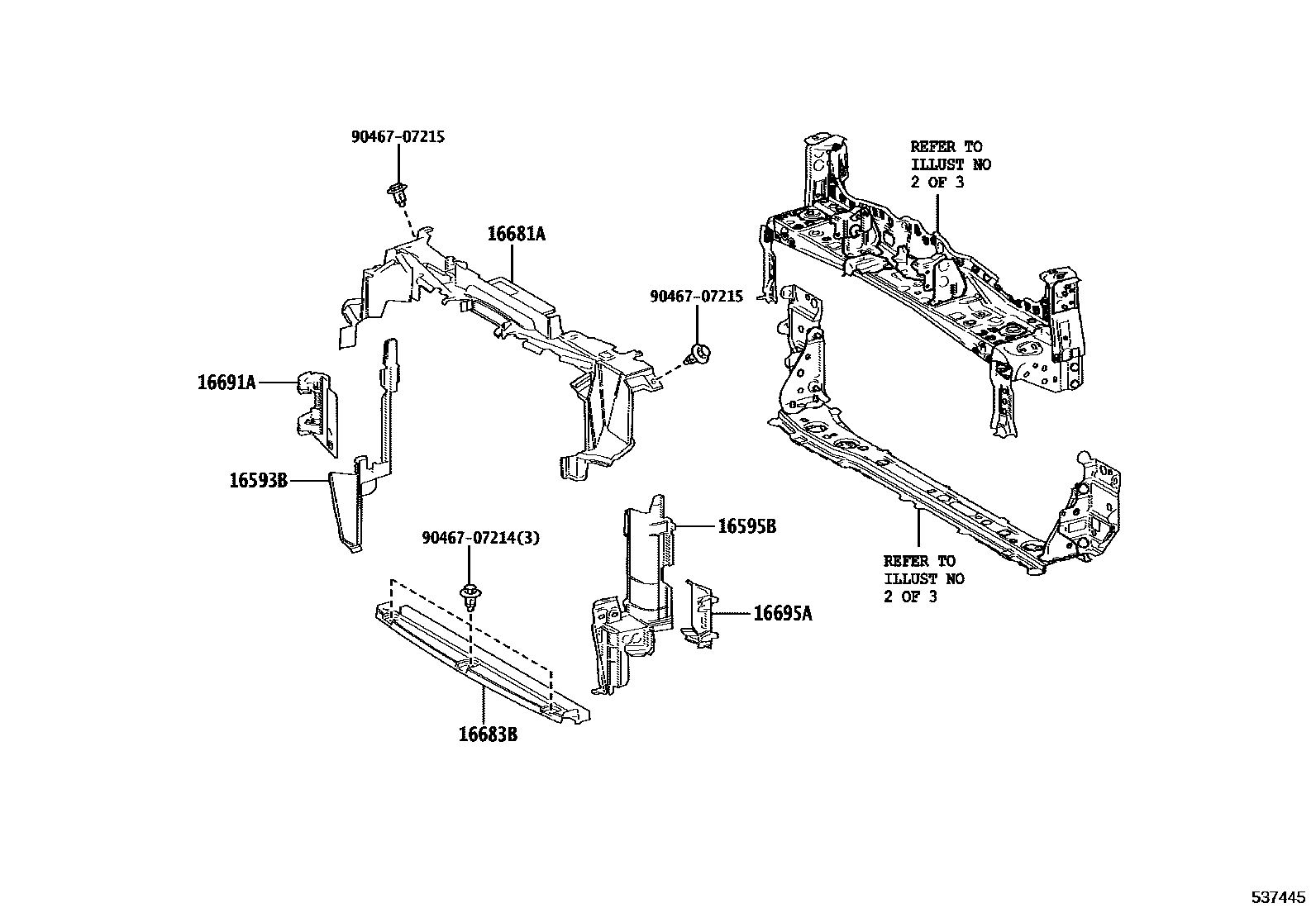

Toyota YARIS GR — FRONT FENDER APRON & DASH PANEL
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
16681APLATE, RADIATOR UPPER AIR GUIDE
16683BPLATE, RADIATOR LOWER AIR GUIDE, NO.2
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
9046707214
main90467-07214
9046707215
main90467-07215
8 parts on this diagram · 5 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota YARIS GR
This section contains 57 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota YARIS GR. Key components include: GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.1 LH, PLATE, RADIATOR UPPER AIR GUIDE, PLATE, RADIATOR LOWER AIR GUIDE, NO.2, PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH.
