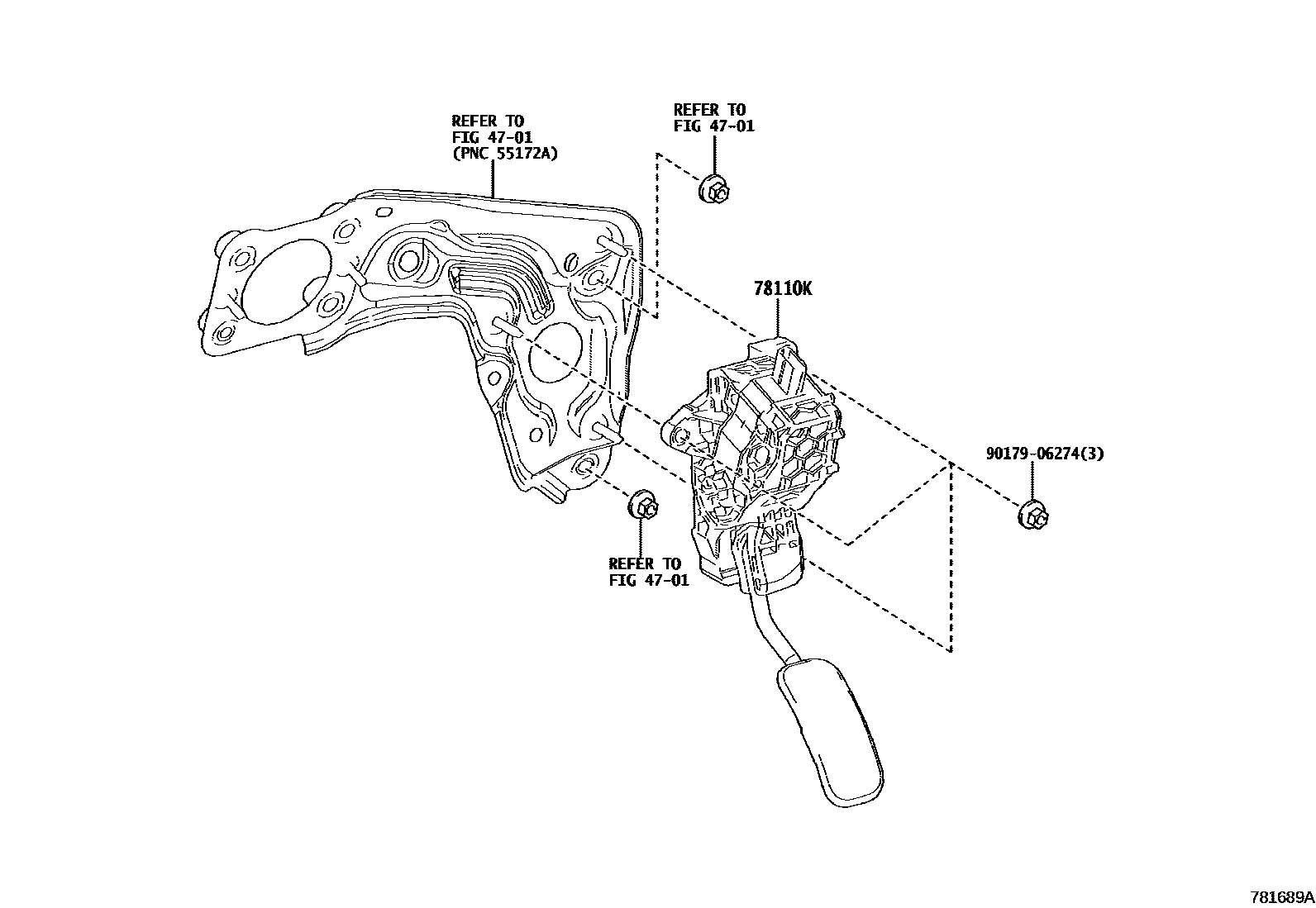

Toyota YARIS GR — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52121i202404

main78110-52170i202008-202010

HI GRADE PACKAGE

main78110-52171i202404

main78110-52310i202008-202010

main78110-52311i202412

main78110-52341i202404

9017906274

main90179-06274

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota YARIS GR

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota YARIS GR. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
