Toyota YARIS (FRP) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1COWL 0009 1COWL 0010 1COWL 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1IGNITION & COMBINATION SWITCH0016 1IGNITION & COMBINATION SWITCH0017 1DOOR,ROOF,FLOOR & LUGGAGE

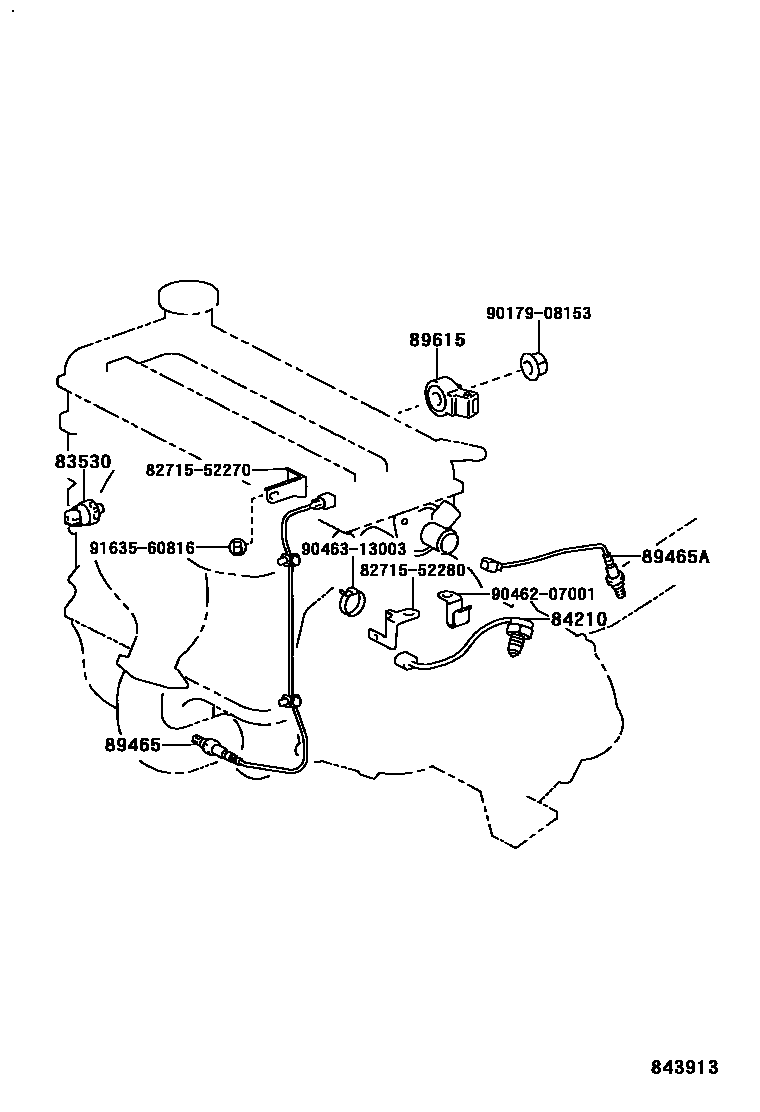

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNLP10,SCP1#..FRP200302

JAEGER

main83530-28020iSCP1#200101-200302

DENSO

main83530-60020iSCP1#200101-200302

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSCP12..5F200205-200302

sub84210-52050

main84210-60030iSCP10..FRP200302

89465SENSOR, OXYGEN

main89465-0D010iSCP10200101-200302

main89465-0D030iSCP12200205-200302

main89465-0D050iSCP10..FRP..(SOL,TRSTD)..5F200302

main89465-0D080iSCP10..FRP..5FS;SCP10..FRP..TSGS200302

89465ASENSOR, OXYGEN NO.2

main89465-0D020iSCP10200101-200302

main89465-0D040iSCP12200205-200302

main89465-0D060iSCP10..FRP..(SOL,TRSTD)..5F200302

main89465-0D070iSCP10..FRP..5FS;SCP10..FRP..TSGS200302

89615SENSOR, KNOCK CONTROL

main89615-02020iSCP12200205-200302

main89615-05010iSCP10..FRP..(SOL,TRSTD)..5F200302

main89615-20090iSCP12..FRP;SCP10..FRP..5FS;SCP10..FRP..TSGS200302

(J)

8271552270BRACKET,WIRING HARNESS CLAMP

main82715-52270

8271552280BRACKET,WIRING HARNESS CLAMP

main82715-52280

9017908153

main90179-08153

9046207001

main90462-07001

9046313003

main90463-13003

9163560816

main91635-60816

11 parts on this diagram · 17 diagrams in section
