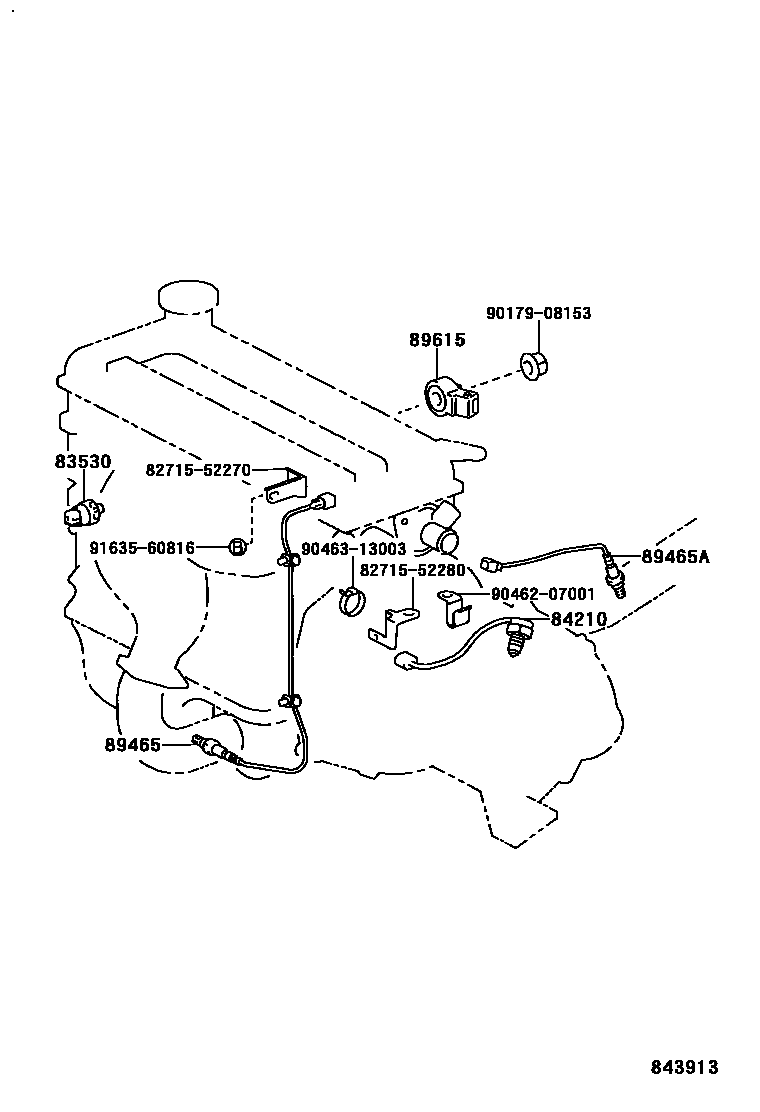

Toyota YARIS (FRP) — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
JAEGER
DENSO
YAZAKI
84210SWITCH ASSY, BACK-UP LAMP
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89615SENSOR, KNOCK CONTROL
(L)
(J)
8271552270BRACKET,WIRING HARNESS CLAMP
main82715-52270
8271552280BRACKET,WIRING HARNESS CLAMP
main82715-52280
9017908153
main90179-08153
9046207001
main90462-07001
9046313003
main90463-13003
9163560816
main91635-60816
11 parts on this diagram · 17 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota YARIS (FRP)
This section contains 128 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota YARIS (FRP). Key components include: RELAY ASSY, STARTER, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, SHIFT LOCK UNIT, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
