Toyota YARIS (FRP) — PRE-COLLISION SYSTEM

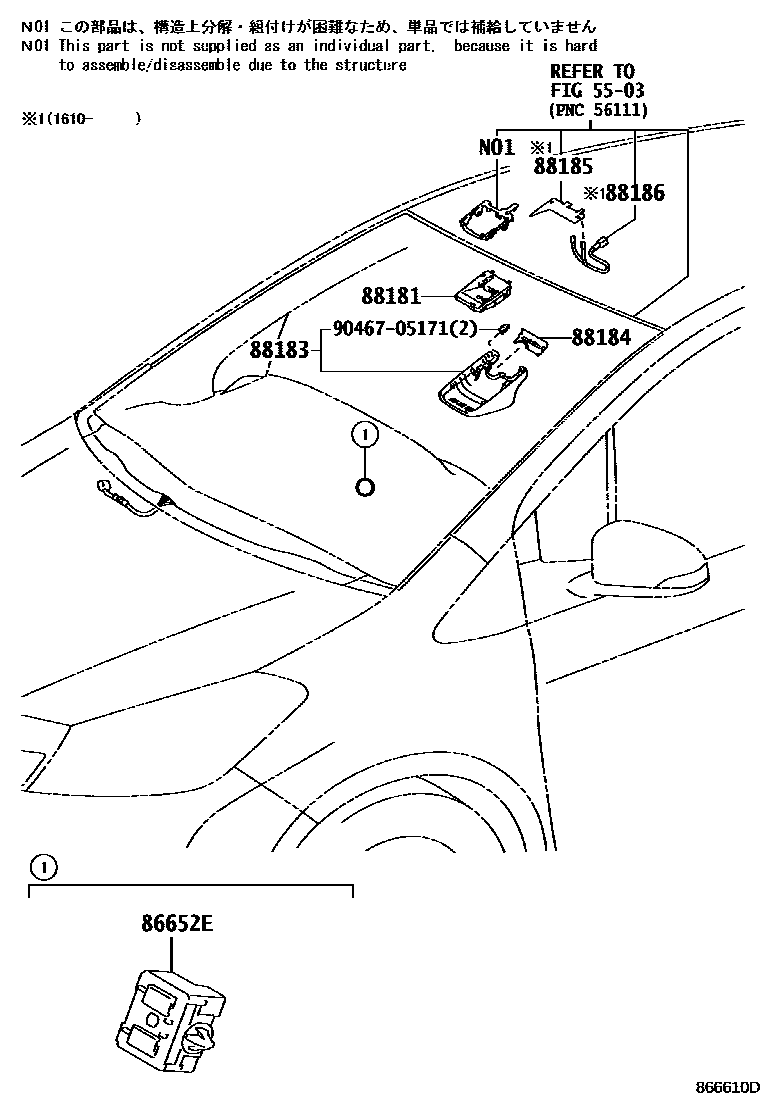

Parts diagram
5503COWL PANEL & WINDSHIELD GLASS
→ Go to FIG 55-03
86652EBUZZER, PRE-COLLISION CITY
88181SENSOR, PRE-COLLISION CITY
main88181-0D020i201703-201811
PRE-COLLISION SYSTEM-WITHOUT
main88181-0D050i201811-201907
PRE-COLLISION SYSTEM-WITHOUT
88183COVER, PRE-COLLISION CITY
main88183-52060i201703-201907
PRE-COLLISION SYSTEM-WITHOUT
88184COVER, PRE-COLLISION CITY, 2ND
main88184-52060i201703-201907
PRE-COLLISION SYSTEM-WITHOUT
88185HEATER, PRE-COLLISION CITY
main88185-0D010i201703-201907
PRE-COLLISION SYSTEM-WITHOUT
88186WIRE, PRE-COLLISION CITY HEATER
main88186-0D010i201703-201907
PRE-COLLISION SYSTEM-WITHOUT
9046705171
main90467-05171

8 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota YARIS (FRP)

This section contains 9 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota YARIS (FRP). Key components include: COWL PANEL & WINDSHIELD GLASS, SWITCH, LANE-KEEPING ASSIST MAIN, BUZZER, PRE-COLLISION CITY, SENSOR, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY.
