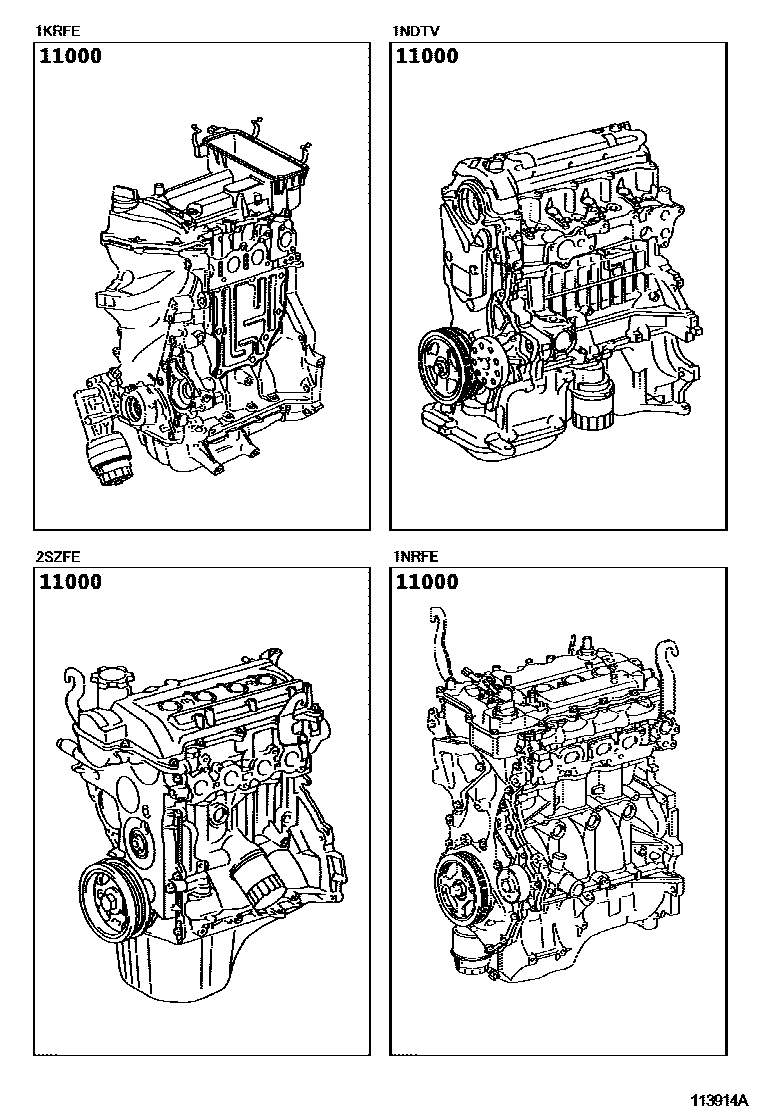

Toyota YARIS (FRP) — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0J060i200511-200802

main19000-0J061i200802-200811

main19000-0N020i200511-200610

ENGINE NO.=D001001-

sub88310-0D211

sub88446-12060

sub94151-80800

main19000-0N021i200610-200811

ENGINE NO.=D001001-

main19000-0N040i201011-201107

(L)

sub19000-0N041

sub16262-0N011

main19000-0Q021i200511-200811

(L)

main19000-0Q030i200811-201107

(L)

main19000-33250i200511-200610

ENGINE NO.=0002001-

sub88310-0D211

sub88446-12060

sub94151-80800

main19000-33251i200610-200811

ENGINE NO.=0002001-

main19000-33300i200811-200911

main19000-33301i200911-201007

sub16206-33041

sub16206-33051

sub16263-33030

sub90301-20016

main19000-33330i201007-201011

sub16206-33041

sub16206-33051

sub16263-33030

sub90301-20016

main19000-33331i201011-201107

(J)

sub19000-33332

sub16262-33011

main19000-40160i200511-200611

(J)

main19000-40161i200611-200811

(J)

sub19000-40162

main19000-40210i200811-201107

(J)

sub19000-40211

main19000-47080i200811-201002

sub91671-G0825

sub94188-00841

main19000-47081i201002-201107

sub19000-47082

main19000-47090i200902-201002

sub91671-G0825

sub94188-00841

main19000-47091i201002-201107

ENGINE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

sub19000-47092

main19000-0N031i201011-201107

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L)

sub19000-0N032

sub16262-0N011

main19000-33280i200811-200911

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(DPF & OBD)

main19000-33281i200911-201007

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(DPF & OBD)

sub19000-33282

sub16206-33041

sub16206-33051

sub16263-33030

sub90301-20016

main19000-33302i201011-201107

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(J)

sub19000-33303

sub16262-33011

1 parts on this diagram · 1 diagram in section
