Toyota YARIS (FRP) — PARTIAL ENGINE ASSEMBLY

Parts diagram

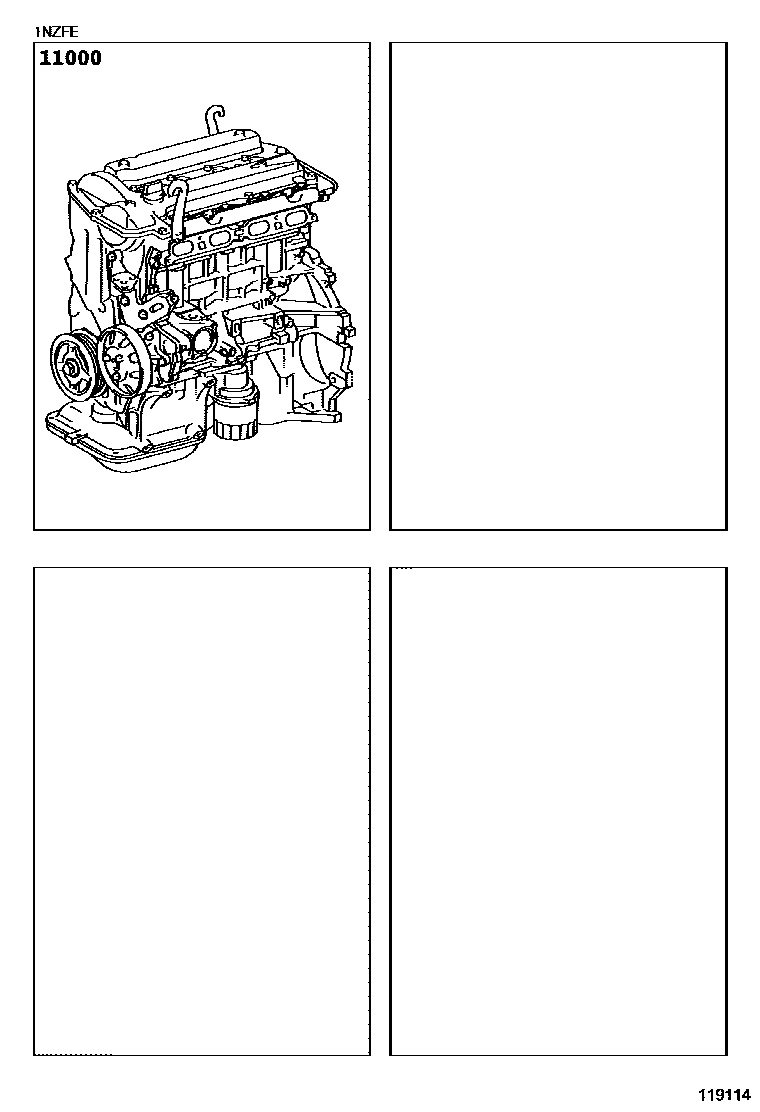

11000ENGINE ASSY, PARTIAL

main19000-21C11i201407-201703

main19000-21D90i201505-201607

MEXICO SPEC

1 parts on this diagram · 1 diagram in section
