Toyota YARIS (FRP) — HEATING & AIR CONDITIONING - SET

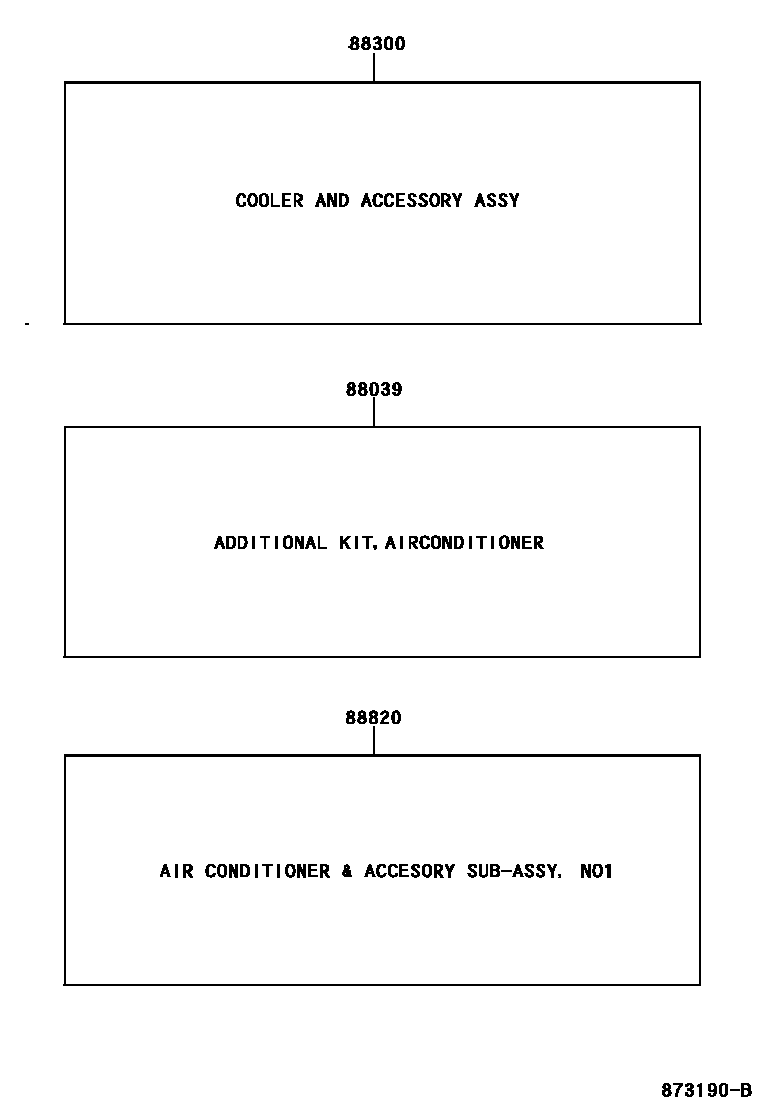

Parts diagram
88039ADDITIONAL KIT,AIRCONDITIONER
main88300-0D120i200306
W(BOOST VENTILATOR)
main88820-0D010i200101-200302
main88820-0D011i200302-200305
main88820-0D012i200305
main88820-0D020i200101-200302
main88820-0D021i200302-200305
W(AIR CONDITIONER)
main88820-0D022i200305
W(AIR CONDITIONER)
main88820-0D030i200101-200302
W(BOOST VENTILATOR)
main88820-0D031i200302-200305
W(BOOST VENTILATOR & AIR CONDITIONER)
main88820-0D032i200305
W(BOOST VENTILATOR & AIR CONDITIONER)
main88820-0D040i200302
W(AIR CONDITIONER)
main88820-0D050i200302
W(AIR CONDITIONER)
main88820-0D060i200302
W(BOOST VENTILATOR)
main88820-0D100i200305
main88820-0D110i200305
W(AIR CONDITIONER)
main88820-0D120i200305
W(BOOST VENTILATOR)
88300COOLER & ACCESSORY ASSY
main88300-0D010i200101-200302
main88300-0D011i200302
main88300-0D020i200101-200302
main88300-0D021i200302
main88300-0D030i200101-200302
W(BOOST VENTILATOR)
main88300-0D031i200302
W(BOOST VENTILATOR)
main88300-0D040i200205-200302
main88300-0D041i200302
main88300-0D050i200205-200302
main88300-0D051i200302
main88300-0D060i200205-200302
W(BOOST VENTILATOR)
main88300-0D061i200302
W(BOOST VENTILATOR)
main88300-0D080i200302-200308
main88300-0D081i200308
main88300-0D090i200302-200308
main88300-0D091i200308
main88300-0D100i200302-200308
W(BOOST VENTILATOR)
main88300-0D101i200308
W(BOOST VENTILATOR)
88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
main88820-52101i200302
main88820-52111i200302
main88820-52121i200302
W(BOOST VENTILATOR)

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota YARIS (FRP)

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota YARIS (FRP). Key components include: ADDITIONAL KIT,AIRCONDITIONER, COOLER & ACCESSORY ASSY, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1.
