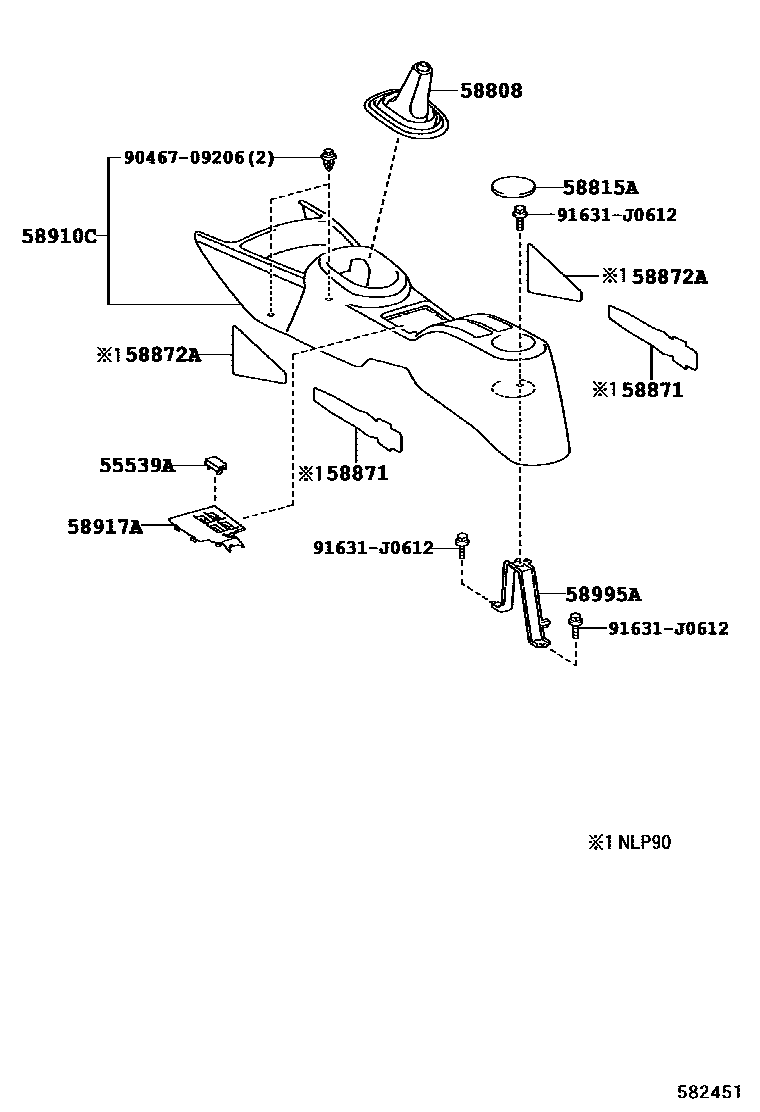

Toyota YARIS (FRP) — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-B0×4iKSP90,NLP90,SCP90..FRP..5F..SOL; KSP90,NLP90,SCP90..FRP..5F..TRSTD; KSP90,NLP90,SCP90..FRP..5FS..SOL;KSP90,NLP90,SCP90..FRP..5F..TRSTD; KSP90,NLP90,SCP90..FRP..LHD..5F..TRSTD; KSP90,NLP90..FRP..5F..TRSTD; KSP90,NLP90..FRP..LHD..5F..TRSTD; KSP90,SCP90..FRP..LHD..5F..SOL; KSP90,SCP90..FRP..LHD..5F..TRSTD; KSP90,SCP90..FRP..LHD..5FS..SOL;KSP90,NLP90,SCP90..FRP..LHD..5F..TRSTD; KSP90,SCP90..FRP..LHD..5FS..SOL;KSP90,SCP90..FRP..LHD..5F..TRSTD; KSP90..FRP..5FS..TRSTD; KSP90..FRP..5FS..TRSTD;NLP90..FRP..LHD..TRSTD; KSP90..FRP..LHD..5F..TRSTD; NLP90..FRP..LHD..5F..SOL; NLP90..FRP..LHD..5FS; NLP90..FRP..LHD..TRSTD200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&POWER DOOR LOCK-W/O&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT)&POWER DOOR LOCK-W/O&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT)&POWER DOOR LOCK-W/O,DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT)&POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)&SEATHEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT)&POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; COLD SPEC, WITH(REAR HEATER DUCT),DK.GRAY,TRIM1#; DK.GRAY,TRIM1#; DOOR INSIDE HANDLE=W/O PAINTED&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; DOOR INSIDE HANDLE=W/O PAINTED&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O,DK.GRAY,TRIM1#; FRONT HEATER-AIR INLET MODE & PTC HEATER&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT,DK.GRAY,TRIM1#; FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)&SEATHEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#; FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY),DK.GRAY,TRIM1#; POWER DOOR LOCK-W/O,DK.GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),DK.GRAY,TRIM1#
main55539-52060-E4×2iKSP90,NLP90..FRP..(5F,6F)..SOL; KSP90,NSP90..FRP..LHD..(5FS,6F,6FS)..SOL; KSP90..FRP..LHD..5F..SOL; NLP90..FRP..LHD..6F..SOL; NSP90..FRP..LHD..6F..SOL; NSP90..FRP..SOL;KSP90,NLP90..FRP..(5FS,6FS)200811-201001
ASH BROWN,TRIM4#; AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&ENGINE-WITHOUT(STOP & START SYSTEM)&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&ENGINE-WITHOUT(STOP & START SYSTEM)&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; COLD SPEC, WITH OUT(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; COLD SPEC, WITH(REAR HEATER DUCT)&ENGINE-WITHOUT(STOP & START SYSTEM)&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; COLD SPEC, WITH(REAR HEATER DUCT)&ENGINE-WITHOUT(STOP & START SYSTEM)&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; COLD SPEC, WITH(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; COLD SPEC, WITH(REAR HEATER DUCT)&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; ENGINE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; ENGINE-WITHOUT(STOP & START SYSTEM),ASH BROWN,TRIM4#; FRONT HEATER-AIR INLET & PTC600W&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; FRONT HEATER-AIR INLET & PTC600W&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; FRONT HEATER-POWER HEATER & AIR INLET&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; FRONT HEATER-POWER HEATER & AIR INLET&SEAT HEATER-DRIVER & PASSENGER&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; FRONT HEATER-POWER HEATER & AIR INLET&SEAT HEATER-DRIVER & PASSENGER,ASH BROWN,TRIM4#; FRONT HEATER-POWER HEATER & AIR INLET,ASH BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
58815ACARPET, CONSOLE BOX
58871CUSHION, CONSOLE BOX
58872ACUSHION, CONSOLE BOX, NO.2
58910CBOX ASSY, CONSOLE, REAR
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
58917ACOVER, CONSOLE BOX, REAR
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9046709206
main90467-09206
91631J0612
main91631-J0612
10 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota YARIS (FRP)
This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS (FRP). Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, CUSHION, CONSOLE BOX, CUSHION, CONSOLE BOX, NO.2.
