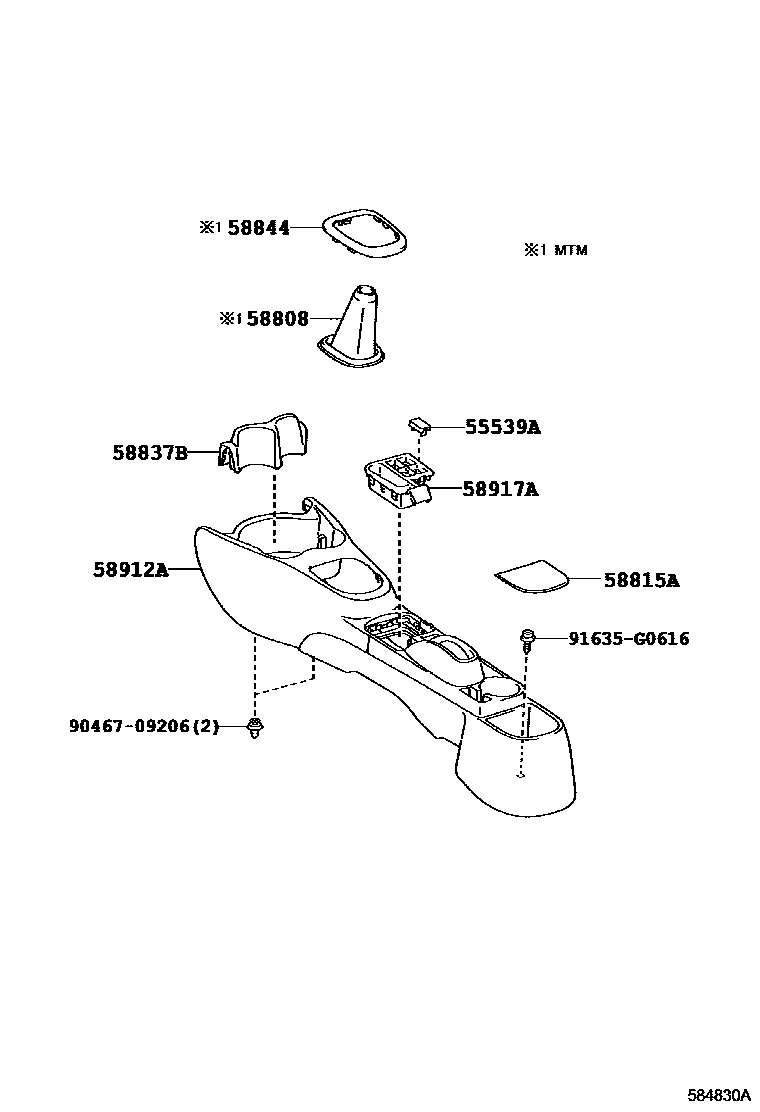

Toyota YARIS (FRP) — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52070-C0i201703-201907

BLACK

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D150-C0i201305-201407

BLACK,TRIM1#

main58808-0D260-B2i201407-201511

LE PACKAGE,LT. GRAY NO.F907,TRIM2#,3#; LT. GRAY NO.F907,TRIM2#,3#; SE PACKAGE,LT. GRAY NO.F907,TRIM2#,3#

main58808-0D260-B8i201511-201703

BLACK/GRAY NO.205,TRIM2#; LE PACKAGE,BLACK/GRAY NO.205,TRIM2#; SE PACKAGE,BLACK/GRAY NO.205,TRIM2#

main58808-0D260-J0i201811-201907

BLUE,TRIM20

main58808-0D290-B1i201407-201511

LT. GRAY NO.F907,TRIM0#,2#; LT. GRAY NO.F907,TRIM2#

main58808-0D290-C0i201511-201703

BLACK,TRIM0#,2#; BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-0D170i201305-201407

main58815-0D280i201407-201703

58837BBOX, CONSOLE CUP HOLDER

main58837-0D010-C0i201305-201407

BLACK,TRIM1#

main58837-0D040-C1i201703-201804

EU BLACK,TRIM2#

main58837-0D060-C1i201407-201703

EU BLACK,TRIM0#,2#; EU BLACK,TRIM2#

58844BEZEL, CONSOLE BOX

main58844-0D060-C0i201305-201407

BLACK,TRIM1#

main58844-0D120i201703-201907

main58844-0D070i201305-201407

REAR SEAT-6:4 FOLDING TYPE, WITHOUT(RECLINING)

58912ABOX, REAR CONSOLE

main58911-0D170-C0i201305-201407

BLACK,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-0D100-C0i201305-201407

BLACK,TRIM1#

main58917-0D160-C1i201407-201703

EU BLACK,TRIM0#,2#; EU BLACK,TRIM2#

9046709206

main90467-09206

91635G0616

main91635-G0616

9 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota YARIS (FRP)

This section contains 17 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS (FRP). Key components include: COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER.
