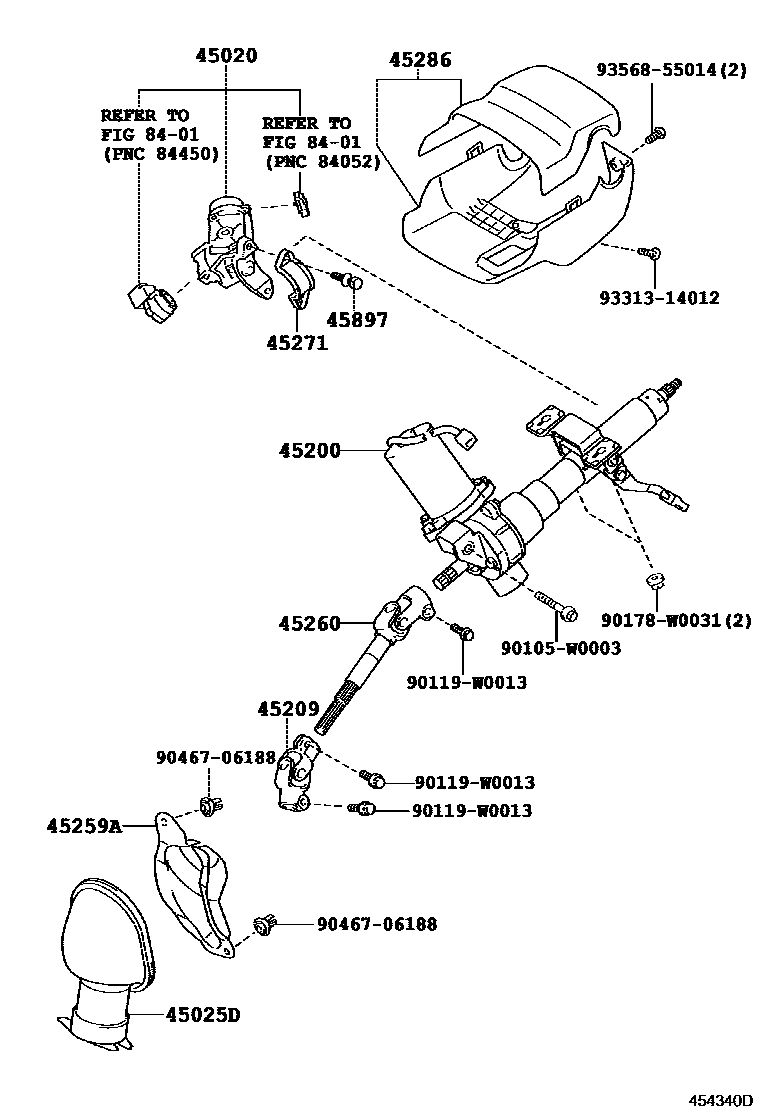

Toyota YARIS (FRP) — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1W(SMART KEY SYSTEM) 0004 1W(SMART KEY SYSTEM)

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-0D030iKSP90,NLP90,SCP90..FRP200511-201107

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D061iKSP90,NLP90,NSP90..FRP..(5F,6F,6FS)200511-201010

sub45025-0D062

main45025-0D062iKSP90,NLP90,NSP90..FRP201011-201103

sub45025-0D061

45200POST ASSY, STEERING

main45200-0D150iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200707

sub45200-0D152

main45200-0D151iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200708-200801

sub45200-0D152

main45200-0D152iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200802-201107

main45200-0D160iKSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200707

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D162

main45200-0D161iKSP90,NLP90,SCP90..FRP..LHD..SOL200708-200801

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D162

main45200-0D162iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200802-200903

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D163

main45200-0D163iKSP90,NLP90,NSP90..FRP..LHD..SOL200904-201101

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D165

main45200-0D164iKSP90,NLP90,NSP90..FRP..LHD..TRSTD201102-201103

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D165

main45200-0D165iKSP90,NLP90,NSP90..FRP..LHD..SOL201104-201107

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D180iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200707

sub45200-0D182

main45200-0D181iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200708-200801

sub45200-0D182

main45200-0D182iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200802-201107

main45200-0D190iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200707

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D192

main45200-0D191iKSP90,NLP90,SCP90..FRP..RHD..SOL200708-200801

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D192

main45200-0D192iKSP90,NLP90,SCP90..FRP..RHD..TRSTD200802-200903

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D193

main45200-0D193iKSP90,NLP90,NSP90..FRP..RHD..TRSTD200904-201101

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D195

main45200-0D194iKSP90,NLP90,NSP90..FRP..RHD..TRSTD201102-201103

STEERING COLUMN-TILT & TELESCOPIC

sub45200-0D195

main45200-0D195iKSP90,NLP90,NSP90..FRP..RHD..SOL201104-201107

STEERING COLUMN-TILT & TELESCOPIC

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D030iKSP90,NLP90,NSP90..FRP200511-200811

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D010iKSP90,SCP90..FRP..LHD200511-200811

main45259-0D020iKSP90,NSP90..FRP..RHD..(5FS,6FS)200511-200811

main45259-0D040iNLP90..FRP..LHD200511-201004

main45259-0D050iNLP90..FRP..RHD..6FS200511-201004

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D080iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main45260-0D090iKSP90,NLP90,SCP90..FRP..LHD200511-200811

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iKSP90,NLP90,SCP90..FRP200511-200811

45286COVER, STEERING COLUMN

main45286-0D914-B0iKSP90,NLP90,SCP90..FRP200511-201107

DK.GRAY,TRIM1#

main45286-0D914-E0iKSP90,NLP90,NSP90..FRP..(5F,6F,6FS)..SOL200811-201001

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020iKSP90,NLP90,NSP90..FRP200511-200811

8401

90105W0003

main90105-W0003

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

16 parts on this diagram · 4 diagrams in section
