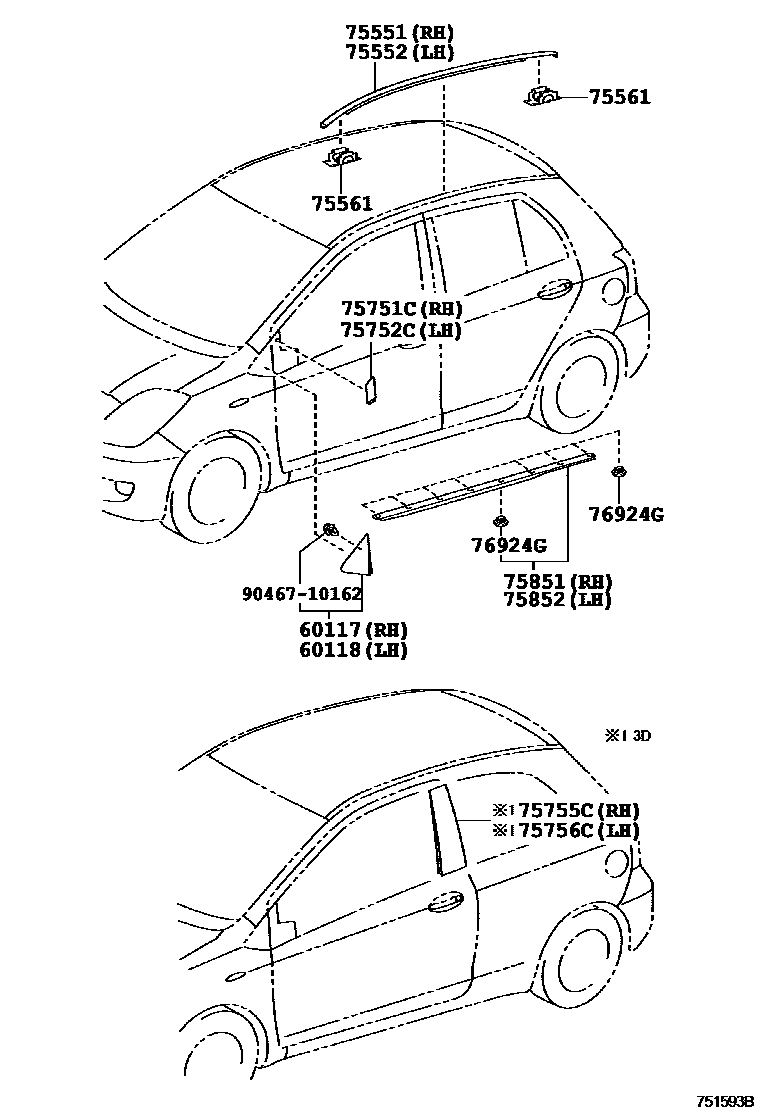

Toyota YARIS (FRP) — SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0D060iKSP90,SCP90..FRP200511-200811

main60117-0D080iNLP90..FRP200511-200811

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0D060iKSP90,NSP90..FRP200511-200811

main60118-0D080iNLP90..FRP200511-200811

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0D070iKSP90,NLP90,SCP90..FRP200511-200811

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75551-0D070iKSP90,NLP90,SCP90..FRP200511-200811

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52040iKSP90,NLP90,SCP90..FRP200511-200811

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-0D010iKSP90,NLP90,SCP90..FRP200511-200811

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-0D010iKSP90,NLP90,SCP90..FRP200511-200811

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-0D010iKSP90,NLP90,SCP90..FRP..3D200601-200811

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-0D010iKSP90,NLP90,SCP90..FRP..3D200601-200811

75851MOULDING, ROCKER PANEL, RH

main75851-0D040iKSP90,NLP90,NSP90..FRP200811

75852MOULDING, ROCKER PANEL, LH

main75852-0D040iKSP90,NLP90,NSP90..FRP200811

76924GRETAINER, ROCKER PANEL MOULDING

main76924-52040iKSP90,NLP90,NSP90..FRP200811

9046710162

main90467-10162

13 parts on this diagram · 1 diagram in section
