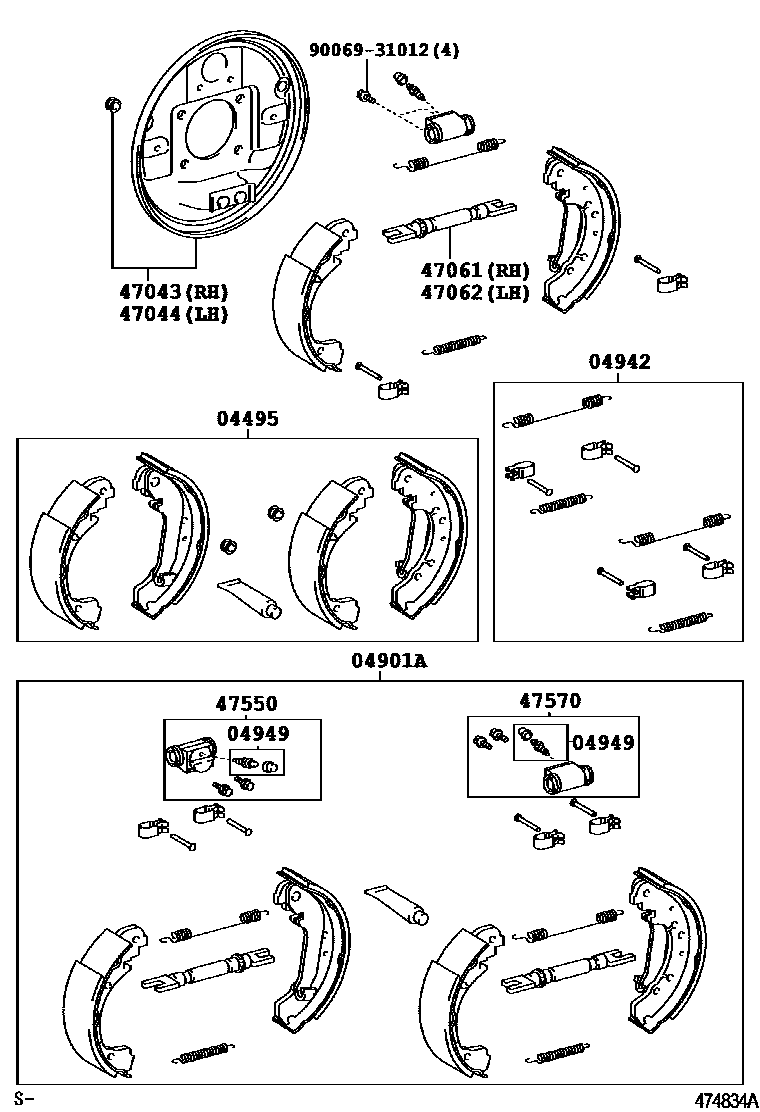

Toyota YARIS (FRP) — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D040iKSP90,NLP90,SCP90..FRP200511-200811

04901AMAINTENANCE KIT, REAR BRAKE

main04907-0D010iKSP90,NLP90,SCP90..FRP200511-200711

sub04907-0D011

main04907-0D011iKSP90,NLP90,SCP90..FRP200712-200811

04942SPRING KIT, REAR BRAKE

main04942-0D050iKSP90,NLP90,SCP90..FRP200511-200811

04949PLUG KIT, REAR BRAKE

main04949-09010iKSP90,NLP90,SCP90..FRP200511-200811

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-09010iKSP90,NLP90,SCP90..FRP200511-200811

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-09010iKSP90,NLP90,SCP90..FRP200511-200811

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-0D040iKSP90,NLP90,SCP90..FRP200511-200811

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-0D040iKSP90,NLP90,SCP90..FRP200511-200811

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09100iKSP90,NLP90,SCP90..FRP200511-200712

sub47550-09101

main47550-09101iKSP90,NLP90,SCP90..FRP200712-200811

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09100iKSP90,NLP90,SCP90..FRP200511-200712

sub47550-09101

main47550-09101iKSP90,NLP90,SCP90..FRP200712-200811

9006931012

main90069-31012

11 parts on this diagram · 1 diagram in section
