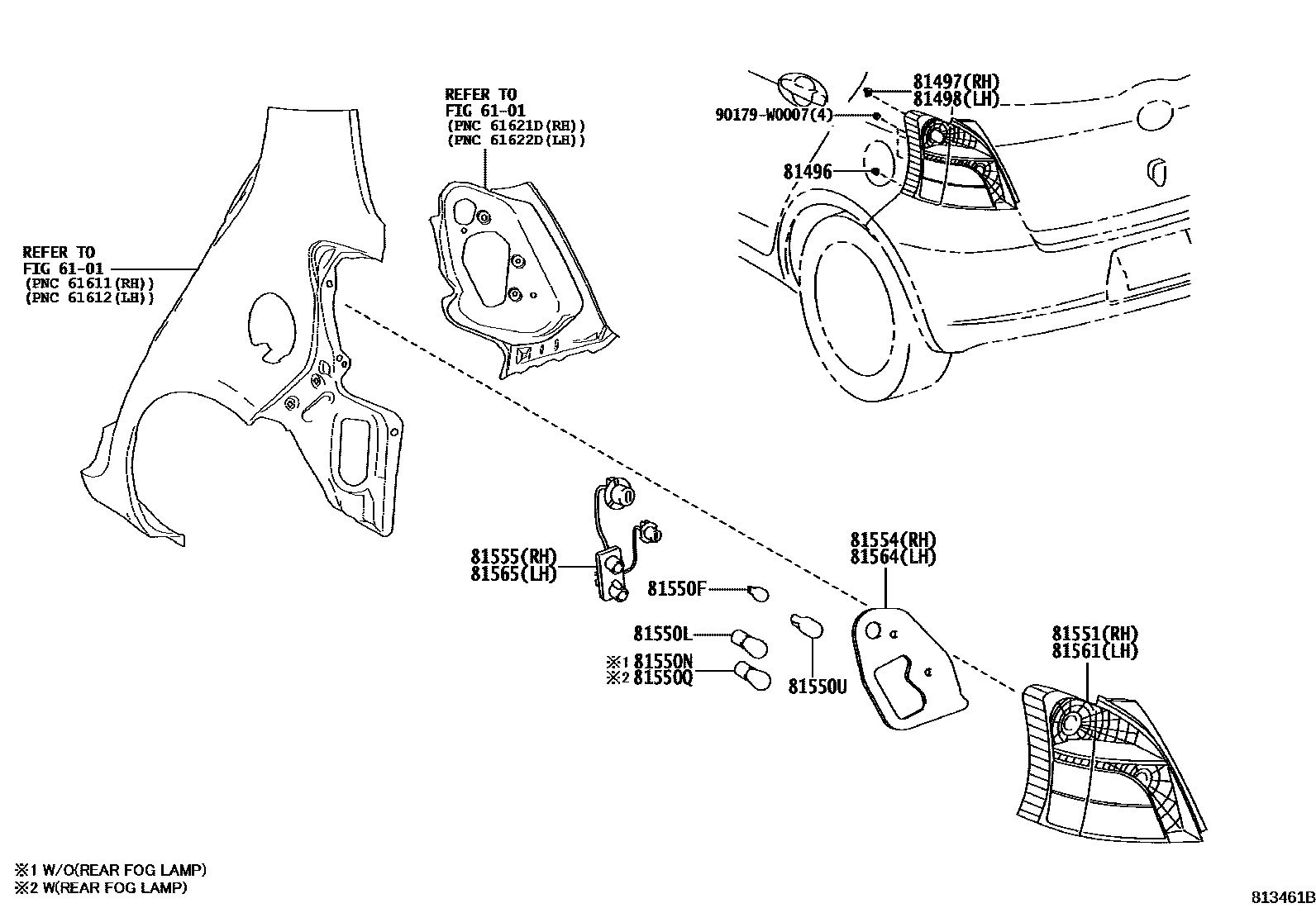

Toyota YARIS (FRP) — REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iKSP90,NLP90,NSP90..FRP200511-201107

81497COVER, REAR COMBINATION LAMP, RH

main81497-52020iKSP90,NLP90,SCP90..FRP200511-201107

81498COVER, REAR COMBINATION LAMP, LH

main81497-52020iKSP90,NLP90,NSP90..FRP200511-201107

81550FBULB, TAILLAMP

main90981-WB006iKSP90,NLP90,SCP90..FRP200511-201107

81550LBULB, REAR TURN SIGNAL LAMP

main90981-WC006iKSP90,NLP90,NSP90..FRP200811-200911

main90981-WF005iKSP90,NLP90,SCP90..FRP200511-201107

81550NBULB, BACK UP LAMP

main90981-WC006iKSP90,NLP90,SCP90..FRP200511-201107

81550QBULB, REAR FOG LAMP, NO.1

main90981-WC006iKSP90,NLP90,SCP90..FRP200511-201107

81550UBULB, STOP LAMP

main90981-WC006iKSP90,NLP90,SCP90..FRP200511-200811

81551LENS, REAR COMBINATION LAMP, RH

main81551-0D110iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main81551-0D120iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main81551-0D250iKSP90,NLP90,NSP90..FRP..LHD200811-200911

main81551-0D251iKSP90,NLP90,NSP90..FRP..LHD200911-201107

main81551-0D260iKSP90,NLP90,NSP90..FRP..RHD200811-200911

main81551-0D261iKSP90,NLP90,NSP90..FRP..RHD200911-201107

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-0D110iKSP90,NLP90,SCP90..FRP200511-200811

main81554-0D250iKSP90,NLP90,NSP90..FRP200811-201107

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D110iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main81555-0D120iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main81555-0D250iKSP90,NLP90,NSP90..FRP..LHD200811-200911

main81555-0D251iKSP90,NLP90,NSP90..FRP..LHD200911-201107

main81555-0D260iKSP90,NLP90,NSP90..FRP..RHD200811-200911

main81555-0D261iKSP90,NLP90,NSP90..FRP..RHD200911-201107

81561LENS, REAR COMBINATION LAMP, LH

main81561-0D110iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main81561-0D120iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main81561-0D250iKSP90,NLP90,NSP90..FRP..LHD200811-200911

main81561-0D251iKSP90,NLP90,NSP90..FRP..LHD200911-201107

main81561-0D260iKSP90,NLP90,NSP90..FRP..RHD200811-200911

main81561-0D261iKSP90,NLP90,NSP90..FRP..RHD200911-201107

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-0D120iKSP90,NLP90,SCP90..FRP200511-200811

main81564-0D250iKSP90,NLP90,NSP90..FRP200811-201107

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-0D110iKSP90,NLP90,SCP90..FRP..LHD200511-200811

main81565-0D120iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main81565-0D250iKSP90,NLP90,NSP90..FRP..LHD200811-200911

main81565-0D251iKSP90,NLP90,NSP90..FRP..LHD200911-201107

main81565-0D260iKSP90,NLP90,NSP90..FRP..RHD200811-200911

main81565-0D261iKSP90,NLP90,NSP90..FRP..RHD200911-201107

90179W0007

main90179-W0007

16 parts on this diagram · 2 diagrams in section
