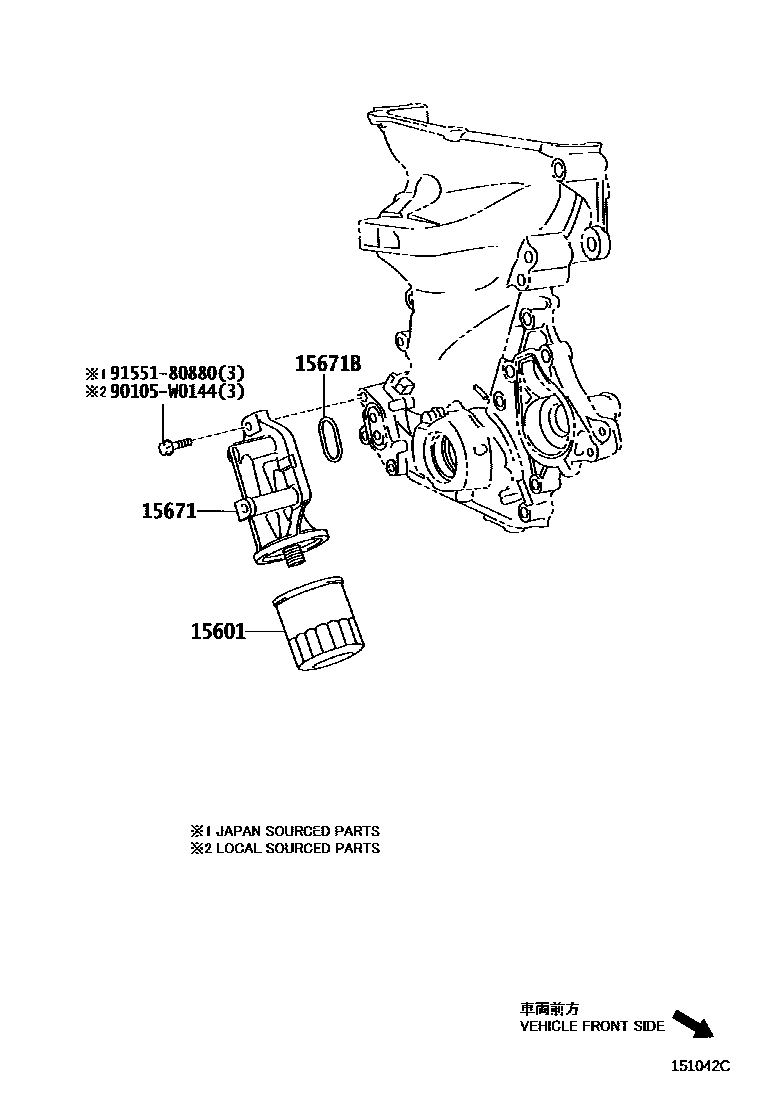

Toyota YARIS (FRP) — OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

15601FILTER SUB-ASSY, OIL

main90915-10001i2SZFE..SCP90..FRP200511-200802

sub90915-10003

main90915-10003i1KRFE..KSP90..FRP200511-201006

(J)

sub90915-10009

main90915-20003i1NDTV..NLP90..FRP200511-200811

sub90915-20005

main90915-CA003i1KRFE..KSP90..FRP200608-201006

(L),MARK 90915-CA003

main90915-CA003i2SZFE..SCP90..FRP200802

main90915-TA001i1KRFE..KSP90..FRP200511-201006

(L),MARK 90915-TA001

15671BRACKET, OIL FILTER

main15671-0Q010i1KRFE..KSP90..FRP..5FS200511-201006

main15677-23010i2SZFE..SCP90..FRP200511

15671BGASKET, OIL FILTER BRACKET

main15691-40020i1KRFE..KSP90..FRP200511-201006

main90301-58004i2SZFE..SCP90..FRP200511

90105W0144

main90105-W0144

9155180880

main91551-80880

5 parts on this diagram · 5 diagrams in section
