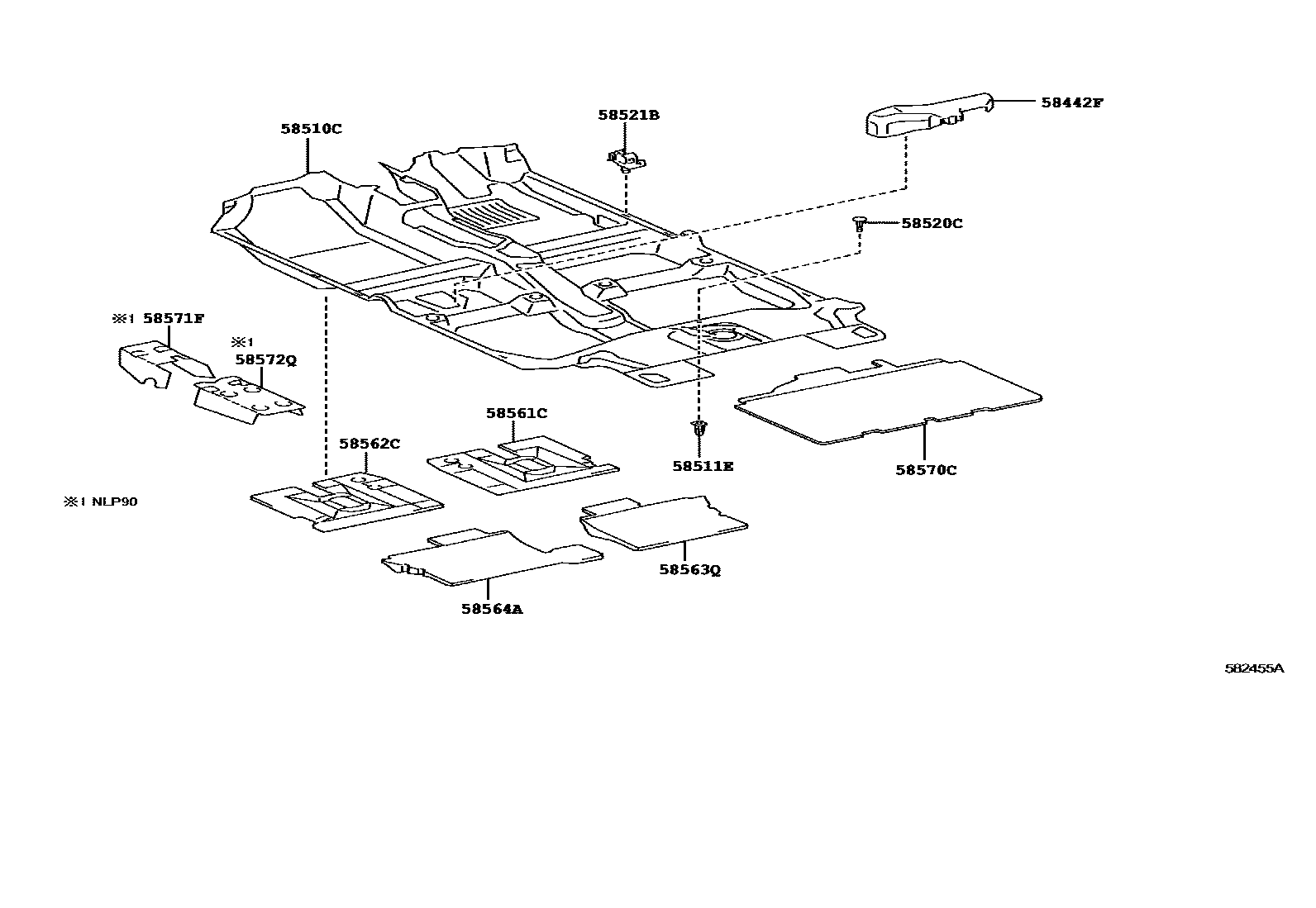

Toyota YARIS (FRP) — MAT & CARPET

58442FCOVER, JACK

main58442-0D040iKSP90,NLP90,NSP90..FRP200511-200811

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0D230-B0iKSP90,SCP90..FRP..LHD..3D200601-200811

GRAY,TRIM1#

main58510-0D232-B0iKSP90..FRP..LHD..3D..5FS;KSP90,NLP90,NSP90..FRP..LHD..3D..TRSTD200811-200910

GRAY,TRIM1#,4#

sub58510-0D740

main58510-0D232-B0iKSP90,NLP90,NSP90..FRP..LHD..3D..(5F,6F,6FS)..SOL200811-200910

GRAY,TRIM1#

sub58510-0D740

main58510-0D250-B0iKSP90,SCP90..FRP..RHD..3D200601-200811

GRAY,TRIM1#

main58510-0D252-B0iKSP90,NLP90,NSP90..FRP..RHD..3D..(5F,6F,6FS)..SOL200811-201107

GRAY,TRIM1#,4#

main58510-0D252-B0iKSP90,NLP90,NSP90..FRP..RHD..3D..(5F,6F,6FS)..SOL200811-201107

GRAY,TRIM1#

main58510-0D340-B0iKSP90,SCP90..FRP..LHD..5D200511-200811

GRAY,TRIM1#

main58510-0D342-B0iKSP90,NLP90,NSP90..FRP..LHD..5D..(5F,6F,6FS)..SOL200811-200910

GRAY,TRIM1#,4#

sub58510-0D720

main58510-0D342-B0iKSP90..FRP..LHD..5D..5FS;KSP90,NLP90,NSP90..FRP..LHD..5D..TRSTD200811-200910

GRAY,TRIM1#

sub58510-0D720

main58510-0D380-B0iKSP90,SCP90..FRP..RHD..5D200511-200811

GRAY,TRIM1#

main58510-0D382-B0iKSP90,NLP90,NSP90..FRP..RHD..5D..(5F,6F,6FS)..SOL200811-201107

GRAY,TRIM1#,4#

main58510-0D382-B0iKSP90..FRP..RHD..5D..5FS;KSP90,NLP90,NSP90..FRP..RHD..5D..TRSTD200811-201107

GRAY,TRIM1#

main58510-0D480-B0iNLP90..FRP..RHD..5D200511-200811

GRAY,TRIM1#

main58510-0D490-B0iNLP90..FRP..LHD..5D200511-200811

GRAY,TRIM1#

main58510-0D510-B0iNLP90..FRP..RHD..3D200601-200811

GRAY,TRIM1#

main58510-0D520-B0iNLP90..FRP..LHD..3D200601-200811

GRAY,TRIM1#

main58510-0D720-B0iKSP90,NLP90,NSP90..FRP..LHD..5D..(5F,6F,6FS)..SOL200910-201107

GRAY,TRIM1#,4#

main58510-0D720-B0iKSP90..FRP..LHD..5D..5FS;KSP90,NLP90,NSP90..FRP..LHD..5D..TRSTD200910-201107

GRAY,TRIM1#

main58510-0D740-B0iKSP90,NLP90,NSP90..FRP..LHD..3D..(5F,6F,6FS)..SOL200910-201107

GRAY,TRIM1#,4#

main58510-0D740-B0iKSP90..FRP..LHD..3D..5FS;KSP90,NLP90,NSP90..FRP..LHD..3D..TRSTD200910-201107

GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-10023iKSP90,NLP90,NSP90..FRP200511-200811

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07115-B0iKSP90,NLP90,NSP90..FRP..SOL200511-201107

DK.GRAY,TRIM1#

sub90467-07115

main90467-07115-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

DK.GRAY,TRIM1#,4#

sub90467-07115

58521BHOOK, FLOOR CARPET

main58521-0D060iKSP90,NLP90,SCP90..FRP..5D200511-200811

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D070iKSP90,NLP90,NSP90..FRP200511-200811

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D070iKSP90,NLP90,NSP90..FRP200511-200811

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D060iKSP90,NLP90,NSP90..FRP200511-200811

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D070iKSP90,NLP90,SCP90..FRP200511-200811

58570CCARPET ASSY, REAR FLOOR

main58570-0D070-B0iNLP90..FRP..LHD..SOL201001-201107

SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iNLP90..FRP..LHD..SOL201001-201107

SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE,DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE,DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL,DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL,DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,4#,(L)

main58570-0D070-B0iKSP90..FRP..LHD..5FS;KSP90,NSP90..FRP..LHD..TRSTD201001-201107

SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,(L)

main58570-52280-B0iKSP90,NSP90..FRP..LHD..5D..TRSTD200811-201005

SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

DARK GRAY,TRIM1#

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

SPARE TIRE-REPAIR KIT&LUGGAGE ROOM SEPARATOR-W/O,DARK GRAY,TRIM1#

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

LUGGAGE ROOM SEPARATOR-W/O,DARK GRAY,TRIM1#

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE,DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE,DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL,DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL,DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

SPARE TIRE-GROUND TIRE (STEEL),DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

main58570-52280-B0iKSP90,NLP90,NSP90..FRP..TRSTD200811-201005

SPARE TIRE-GROUND TIRE (ALLOY WHEEL),DARK GRAY,TRIM1#,4#,(J)

sub58570-0D070

58571FPAD, FRONT FLOOR, FRONT

main58571-0D010iNLP90..FRP200511-200811

58572QPAD, FRONT FLOOR, FRONT NO.2

main58572-0D010iNLP90..FRP200511-200811

12 parts on this diagram · 1 diagram in section
