Toyota YARIS (FRP) — MANIFOLD

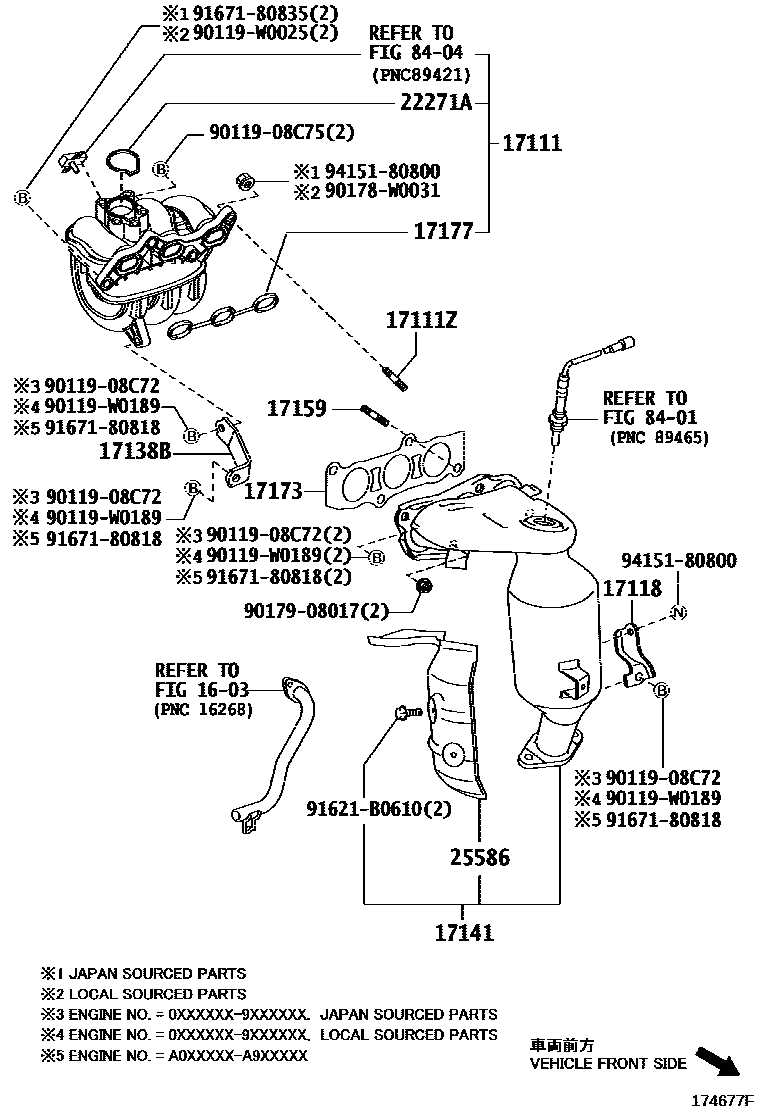

Parts diagram
1603
17111MANIFOLD, INTAKE
main17101-23011i200511
main17120-0Q020i200511-200811
sub17120-0Q021
main17120-0Q030i200811-201006
main17120-47010i200811-201001
sub17120-47011
main17120-47030i201001-201008
main17120-47031i201008-201107
sub17120-47032
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
main90126-08060i200811
main92122-80828i200511-200811
main92122-80845i200811-201006
17118STAY, MANIFOLD
main17118-0Q010i200511-200811
(L)
sub17118-40010
main17118-23030i200511
main17118-33030i200511-200811
main17118-33040i200811
main17118-40010i200511-200811
(J)
main17118-47010i200811
sub17118-47011
17138BSTAY, INTAKE MANIFOLD
main17138-0Q010i200511-201006
(L)
main17138-40040i200511-201006
(J)
17141MANIFOLD, EXHAUST
main17140-0Q020i200511-200811
*114=TOYOTA/0Q020/Y
sub17140-40020
main17140-0Q030i200811-201007
*114=TOYOTA/0Q030/Y
main17140-0Q070i201007
*114=TOYOTA/0Q070/Y
main17140-40040i200811-201007
*114=TOYOTA/40040/Y
main17140-40070i201007
*114=TOYOTA/40070/Y
main17141-0N010i200511-200811
(L)
sub17141-33040
main17141-33040i200511-200811
(J)
main17141-33050i200811
sub17141-33051
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90116-08395i200511-200811
NO.2
main90126-08055i200511-200811
main90126-10033i200811
main92122-80825i200511-200811
NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-0J010i200511
main17173-0N010i200511-200811
(L)
main17173-0Q010i200511-201006
(L)
main17173-33010i200511-200811
(J)
main17173-33030i200811
sub17173-33031
main17173-40020i200511-201006
(J)
main17173-47020i200811-201009
sub17173-47021
main17173-47021i201009
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-0Q010i200511-200811
sub17177-0Q020
main17177-0Q020i201103
(L)
main17177-23020i200511
main17177-40020i200811
(J)
main17177-47010i200811-201107
sub17177-47011
22271AGASKET, THROTTLE BODY
main22271-40010i200511-201006
25586INSULATOR, MANIFOLD CONVERTER, NO.1
main25586-0Q020i200511-200811
main25586-40040i200811
8401
8404
9011908C72
main90119-08C72
9011908C75
main90119-08C75
90119W0025
main90119-W0025
90119W0189
main90119-W0189
90178W0031
main90178-W0031
9017908017
main90179-08017
91621B0610
main91621-B0610
9167180818
main91671-80818
9167180835
main91671-80835
9415180800
main94151-80800

23 parts on this diagram · 9 diagrams in section
