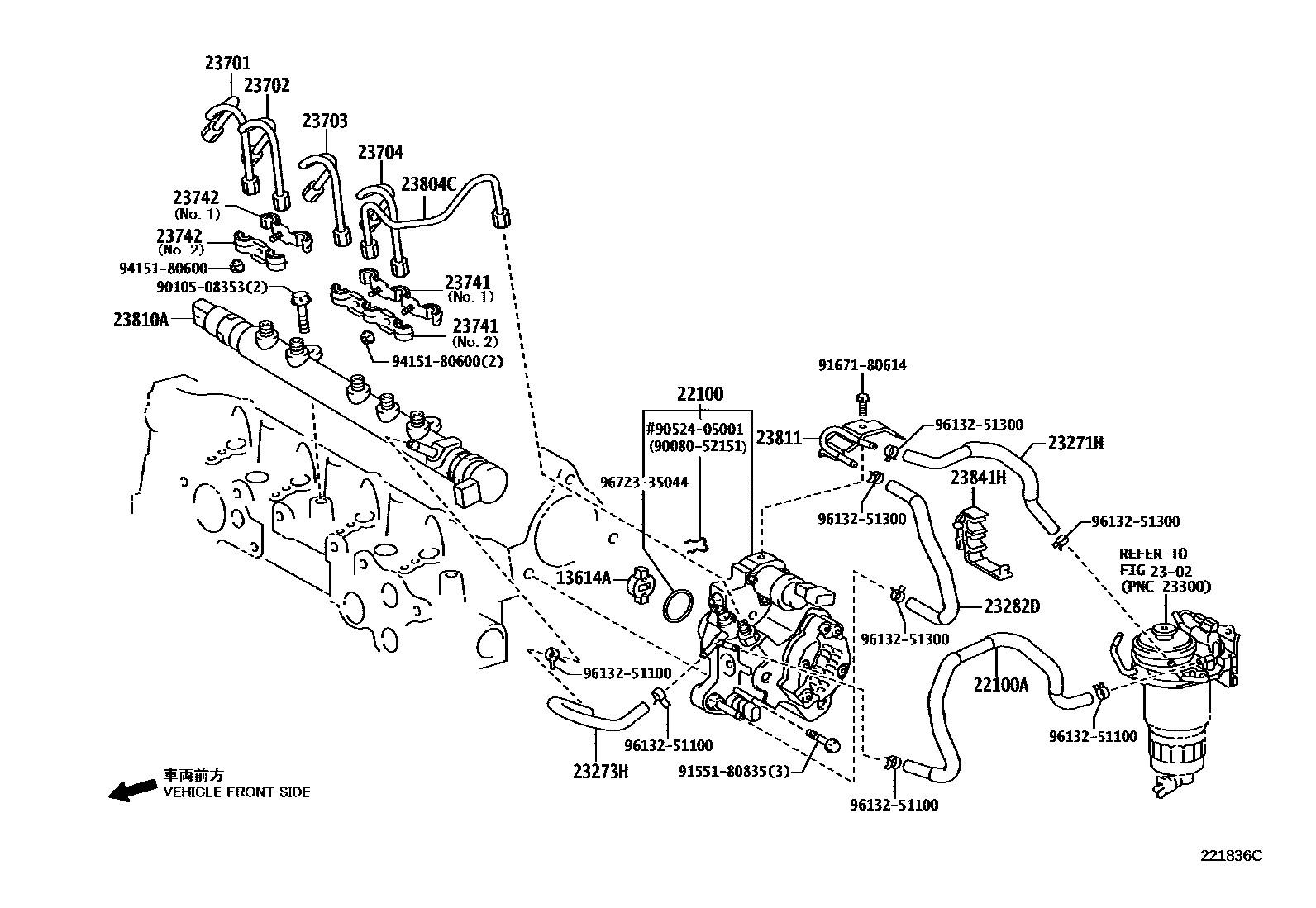

Toyota YARIS (FRP) — INJECTION PUMP ASSEMBLY
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
(L)
(L),*251
*132
(J)
(J),*251
22100PUMP ASSY, INJECTION OR SUPPLY
*137
(L),*132
(L),*251
*132
(J),*132
*132
(J),*251
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
2302
23271HHOSE, FUEL, NO.1
23273HHOSE, FUEL, NO.2
NO.1
NO.2
23282DHOSE, FUEL, NO.4
23701PIPE SUB-ASSY, INJECTION, NO.1
(L)
(J)
23702PIPE SUB-ASSY, INJECTION, NO.2
(L)
(J)
23703PIPE SUB-ASSY, INJECTION, NO.3
(L)
(J)
23704PIPE SUB-ASSY, INJECTION, NO.4
(L)
(J)
23741CLAMP, INJECTION PIPE, NO.1
NO.1
NO.2
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
NO.1
NO.2
23804CPIPE SUB-ASSY, FUEL INLET
(L)
(J)
23810ARAIL ASSY, COMMON
(L)
(J)
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23841HCLAMP, FUEL HOSE
9008052151
main90080-52151
9010508353
main90105-08353
9052405001
main90524-05001
9155180835
main91551-80835
9167180614
main91671-80614
9415180600
main94151-80600
9613251100
main96132-51100
9613251300
main96132-51300
9672335044
main96723-35044
26 parts on this diagram · 2 diagrams in section
