Toyota YARIS (FRP) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---MANUAL 0002 1CONTROL PANEL---AUTO 0003 1CONTROL PANEL---AUTO 0005 1AIR DUCT 0006 1AIR DUCT 0007 1SENSOR 0008 1SENSOR

5501

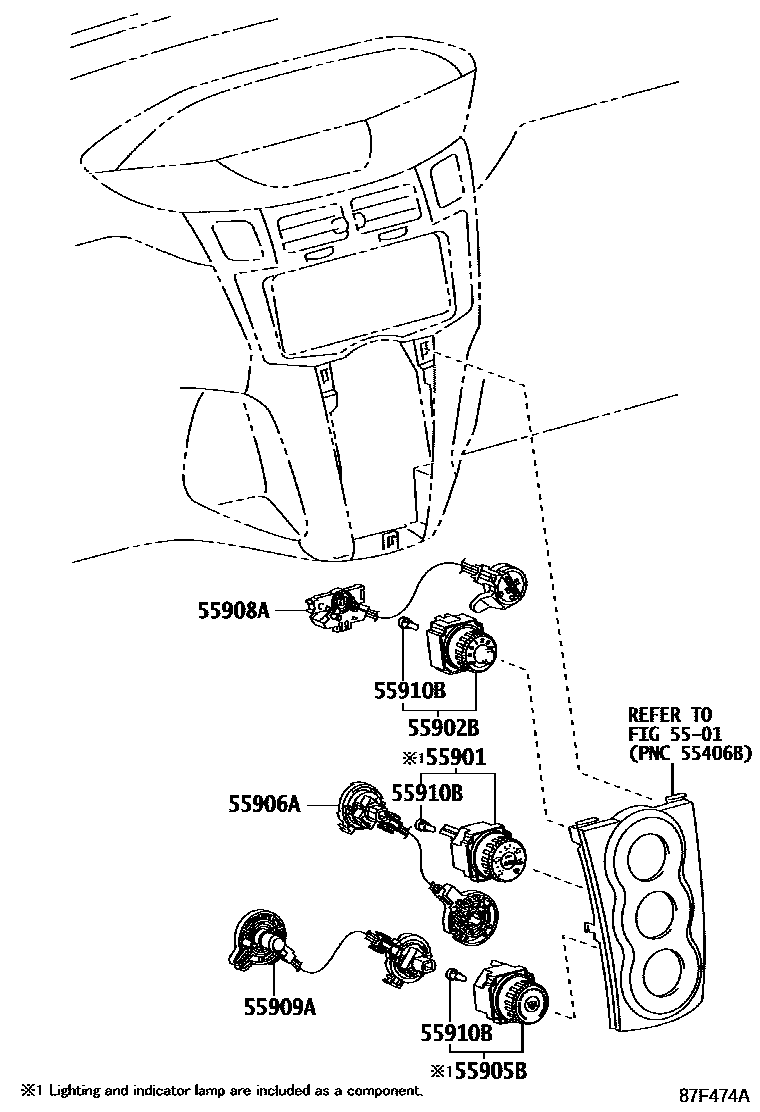

55901BASE SUB-ASSY, HEATER CONTROL

main55901-0D010iKSP90,NLP90,SCP90..FRP200511-200811

FRONT AIR CONDITIONER-AUTO

main55901-0D010iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main55901-0D010iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-MANUAL

main55901-0D020iKSP90,NLP90,SCP90..FRP..SOL200511-200811

FRONT AIR CONDITIONER-W/O

main55901-0D020iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)

main55901-0D140iKSP90,NLP90,NSP90..FRP..SOL200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT

main55901-0D140iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FRONT AIR CONDITIONER-AUTO

main55901-0D140iKSP90,NLP90,NSP90..FRP..SOL200811-201107

EAST PACKAGE&FRONT AIR CONDITIONER-AUTO

main55901-0D140iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main55901-0D140iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

55902BCONTROL SUB-ASSY, HEATER

main55902-0D010iKSP90,NLP90,SCP90..FRP200511-200811

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

EAST PACKAGE&FRONT AIR CONDITIONER-AUTO

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

LUNA PACKAGE&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main55902-0D120iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-201107

FRONT AIR CONDITIONER-AUTO

55905BKNOB, HEATER CONTROL, NO.2

main55903-0D010iKSP90,NLP90,SCP90..FRP200511-200811

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

EAST PACKAGE&COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

EAST PACKAGE&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main55903-0D130iKSP90,NSP90..FRP..LHD..TRSTD200811-201107

EAST PACKAGE&FRONT AIR CONDITIONER-AUTO

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

FRONT AIR CONDITIONER-AUTO

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

LUNA PACKAGE&FRONT HEATER-POWER HEATER & AIR INLET&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

LUNA PACKAGE&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

LUNA PACKAGE&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main55903-0D130iNLP90..FRP..LHD..SOL200811-201107

FRONT HEATER-POWER HEATER & AIR INLET&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iKSP90,NLP90,SCP90..FRP..SOL200511-201107

FRONT AIR CONDITIONER-AUTO

main55906-52132iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

HEATER CONTROL PANEL-MANUAL

main55908-52120iKSP90,NLP90,SCP90..FRP..LHD200511-201107

FRONT AIR CONDITIONER-AUTO

main55908-52130iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

HEATER CONTROL PANEL-MANUAL

main55908-52130iKSP90,NLP90,SCP90..FRP..RHD200511-200811

FRONT AIR CONDITIONER-AUTO

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL

main55909-52120iKSP90,NLP90,NSP90..FRP..TRSTD200511-201107

FRONT AIR CONDITIONER-AUTO

55910BBULB, HEATER CONTROL

main90010-01113iKSP90,NLP90,NSP90..FRP..SOL200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT,GREEN

main90010-01113iKSP90,NLP90,SCP90..FRP200511-201107

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,SCP90..FRP200511-200811

FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,SCP90..FRP200511-201107

FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,SCP90..FRP200511-200811

FRONT AIR CONDITIONER-DEALER KIT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

LUNA PACKAGE&FRONT HEATER-AIR INLET & PTC600W&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

LUNA PACKAGE&FRONT HEATER-AIR INLET & PTC600W&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

LUNA PACKAGE&FRONT HEATER-POWER HEATER & AIR INLET&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

LUNA PACKAGE&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

LUNA PACKAGE&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FRONT HEATER-AIR INLET & PTC600W&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FRONT HEATER-AIR INLET & PTC600W&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER KIT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FRONT HEATER-POWER HEATER & AIR INLET&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FRONT AIR CONDITIONER-DEALER KIT,GREEN

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

EAST PACKAGE&COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

EAST PACKAGE&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

main90010-01113iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

EAST PACKAGE&FRONT AIR CONDITIONER-AUTO

8 parts on this diagram · 7 diagrams in section
