Toyota YARIS (FRP) — HEATING & AIR CONDITIONING - COMPRESSOR

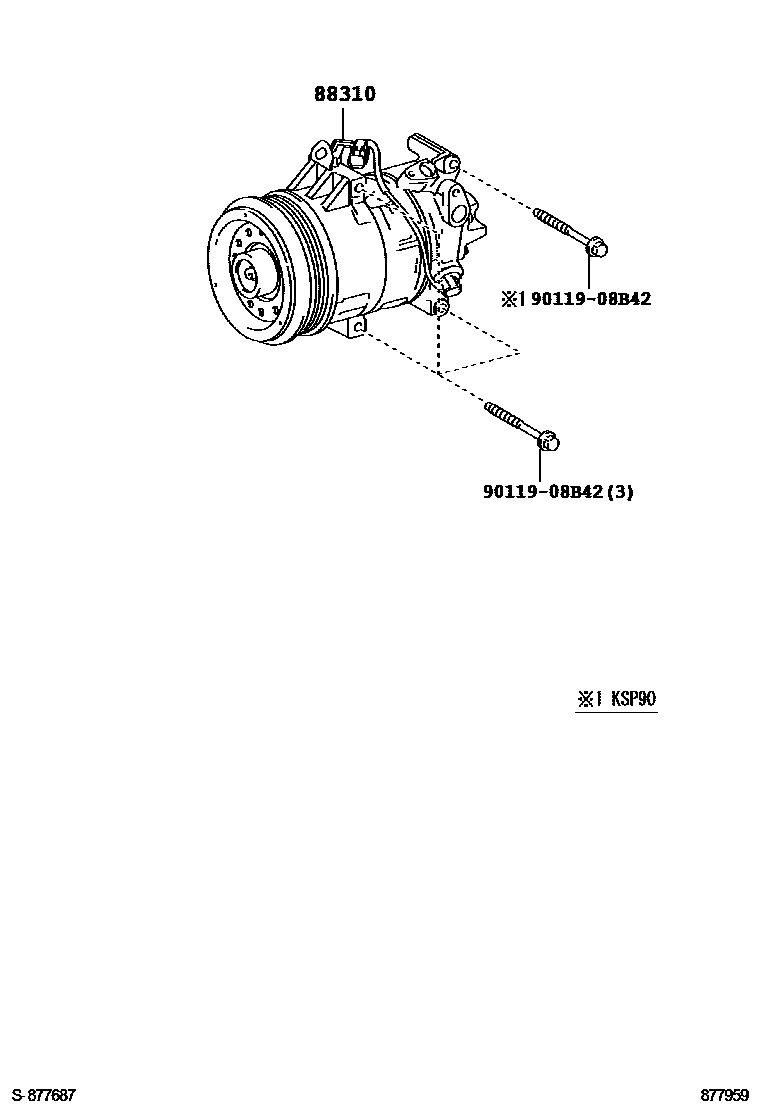

Parts diagram
88310COMPRESSOR ASSY, W/PULLEY
main88310-0D200i200511-200609
FRONT AIR CONDITIONER-MANUAL
sub88310-0D201
sub91551-80625
main88310-0D200i200511-200609
AIR CONDITIONER COMPR.-W/O
sub88310-0D201
sub91551-80625
main88310-0D201i200610-200701
AIR CONDITIONER COMPR.-W/O
sub88310-0D202
main88310-0D201i200610-200701
FRONT AIR CONDITIONER-MANUAL
sub88310-0D202
main88310-0D202i200702-200811
AIR CONDITIONER COMPR.-W/O
main88310-0D202i200702-200811
FRONT AIR CONDITIONER-MANUAL
main88310-0D210i200511-200609
FRONT AIR CONDITIONER-MANUAL
sub88840-0D010
main88310-0D210i200511-200609
AIR CONDITIONER COMPR.-W/O
sub88840-0D010
main88310-0D211i200610-200701
FRONT AIR CONDITIONER-MANUAL
sub88310-0D212
main88310-0D211i200610-200701
AIR CONDITIONER COMPR.-W/O
sub88310-0D212
main88310-0D212i200702-200811
AIR CONDITIONER COMPR.-W/O
main88310-0D212i200702-200811
FRONT AIR CONDITIONER-MANUAL
main88310-0D230i200511-200609
FRONT AIR CONDITIONER-MANUAL
sub88310-0D231
sub90105-W0033
main88310-0D230i200511-200609
AIR CONDITIONER COMPR.-W/O
sub88310-0D231
sub90105-W0033
main88310-0D231i200610-200701
FRONT AIR CONDITIONER-MANUAL
sub88310-0D232
main88310-0D231i200610-200701
AIR CONDITIONER COMPR.-W/O
sub88310-0D232
main88310-0D232i200811-201107
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT
main88310-0D232i200702-201107
FRONT AIR CONDITIONER-MANUAL
main88310-0D232i200702-200811
AIR CONDITIONER COMPR.-W/O
main88310-0D232i200811-201107
FRONT AIR CONDITIONER-DEALER KIT
main88310-0D232i200811-201107
AIR CONDITIONER COMPRESSOR-WITHOUT
main88310-0D320i200811-201107
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT
main88310-0D320i200811-201107
FRONT AIR CONDITIONER-DEALER KIT
main88310-0D320i200811-201107
FRONT AIR CONDITIONER-MANUAL
main88310-0D320i200811-201107
AIR CONDITIONER COMPRESSOR-WITHOUT
main88310-0D330i200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT
main88310-0D330i200811-201107
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT
main88310-0D330i200811-201107
FRONT AIR CONDITIONER-DEALER KIT
main88310-0D330i200811-201107
FRONT AIR CONDITIONER-MANUAL
main88310-0D330i200811-201107
AIR CONDITIONER COMPRESSOR-WITHOUT
9011908B42
main90119-08B42

2 parts on this diagram · 4 diagrams in section
