Toyota YARIS (FRP) — FRONT SEAT & SEAT TRACK

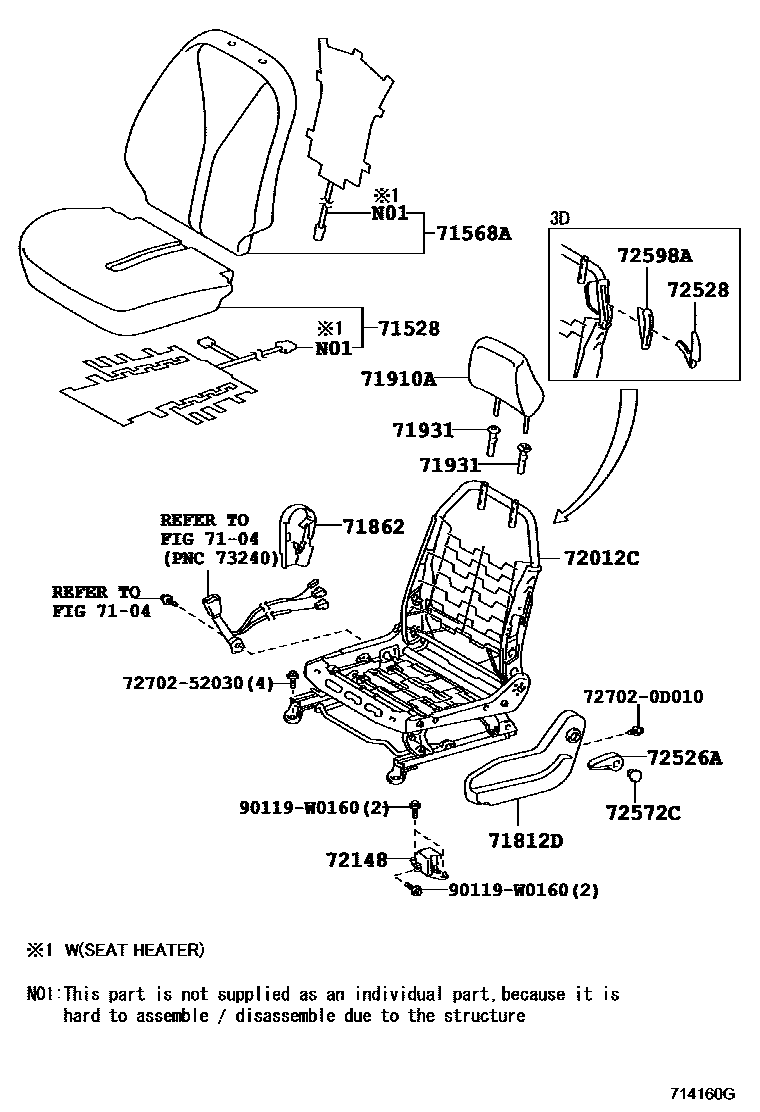

Parts diagram
7104
71528PAD, FRONT SEAT CUSHION W/COVER, LH
main71528-0D140-C0i200511-200811
BLACK,TRIM1#
main71528-0D170-B0i200511-200811
GRAY,TRIM19
main71528-0D170-C0i200511-200811
BLACK,TRIM18
main71528-0D190-B0i200511-200811
GRAY,TRIM19
main71528-0D190-C0i200511-200811
BLACK,TRIM18
main71528-0D200-C0i200511-200811
BLACK,TRIM1#
main71528-0D260-B0i200811-201107
DARK GRAY,TRIM1#
main71528-0D270-B4i200811-201107
DARK GRAY,TRIM1#
main71528-0D270-E0i200811-201001
GREGE,TRIM4#
main71528-0D280-B4i200811-201107
DARK GRAY,TRIM1#
main71528-0D280-E0i200811-201001
GREGE,TRIM4#
main71528-0D290-B0i200811-201107
DARK GRAY,TRIM1#
71568APAD, FRONT SEATBACK W/COVER, LH
main71568-0D311-C0i200601-200811
BLACK,TRIM1#
main71568-0D331-B0i200601-200811
GRAY,TRIM19
main71568-0D331-C0i200601-200811
BLACK,TRIM18
main71568-0D351-C0i200511-200811
BLACK,TRIM1#
main71568-0D371-B0i200511-200811
GRAY,TRIM19
main71568-0D371-C0i200511-200811
BLACK,TRIM18
main71568-0D470-B0i200811-201107
DARK GRAY,TRIM1#
main71568-0D480-B4i200811-201107
DARK GRAY,TRIM1#
main71568-0D480-E0i200811-201001
GREGE,TRIM4#
main71568-0D490-B0i200811-201107
DARK GRAY,TRIM1#
main71568-0D500-B4i200811-201107
DARK GRAY,TRIM1#
main71568-0D500-E0i200811-201001
GREGE,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D061-B2i200511-200811
DK.GRAY,TRIM1#
main71812-0D062-B2i200712-201107
DK.GRAY,TRIM1#
main71812-0D062-E0i200811-201001
GREGE,TRIM4#
main71812-0D070-B2i200511-200811
W/O(SEAT LIFTER),DK.GRAY,TRIM1#
main71812-0D070-B2i200511-200811
W/O(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#
main71812-0D070-B2i200511-201107
DK.GRAY,TRIM1#
main71812-0D070-B2i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),DK.GRAY,TRIM1#
main71812-0D070-B2i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#
main71812-0D070-B2i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main71812-0D070-B2i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main71812-0D070-E0i200811-201001
GREGE,TRIM4#
main71812-0D070-E0i200811-201001
LUNA PACKAGE&DOOR TRIM ORNAMENT-FABRIC LOW(LUNA PACKAGE)&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
main71812-0D070-E0i200811-201001
LUNA PACKAGE&DOOR TRIM ORNAMENT-FABRIC LOW(LUNA PACKAGE)&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,GREGE,TRIM4#
main71812-0D070-E0i200811-201001
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
main71812-0D070-E0i200811-201001
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,GREGE,TRIM4#
main71812-0D071-B2i200712-200807
DK.GRAY,TRIM1#
sub71812-0D070
main71812-0D071-B2i200712-200807
W/O(SEAT LIFTER),DK.GRAY,TRIM1#
sub71812-0D070
main71812-0D071-B2i200712-200807
W/O(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#
sub71812-0D070
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0D040-B2i200511-201107
DK.GRAY,TRIM1#
main71862-0D040-E0i200811-201001
GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0D280-C0i200511-200811
BLACK,TRIM1#
main71910-0D280-C1i200811-201107
BLACK,TRIM1#
main71910-0D290-B0i200511-200811
W/O(SEAT LIFTER),GRAY,TRIM19
main71910-0D290-B0i200511-200811
GRAY,TRIM19
main71910-0D290-C0i200511-200811
W/O(SEAT LIFTER),BLACK,TRIM18
main71910-0D290-C0i200511-200811
BLACK,TRIM18
main71910-0D660-B4i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),DARK GRAY,TRIM1#
main71910-0D660-B4i200811-201107
DARK GRAY,TRIM1#
main71910-0D660-E0i200811-201001
GREGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D010-B1i200511-200607
W(LOCK),DK.GRAY,TRIM18
sub71930-0D011
main71930-0D010-B1i200511-200607
W(LOCK),W/O(SEAT LIFTER),DK.GRAY,TRIM18
sub71930-0D011
main71930-0D010-B1i200511-200607
W(LOCK),DK.GRAY,TRIM1#
sub71930-0D011
main71930-0D010-B2i200511-200607
W(LOCK),GRAY,TRIM19
sub71930-0D011
main71930-0D010-B2i200511-200607
W(LOCK),W/O(SEAT LIFTER),GRAY,TRIM19
sub71930-0D011
main71930-0D011-B1i200608-201107
W(LOCK),DK.GRAY,TRIM1#
main71930-0D011-B1i200608-200811
W(LOCK),W/O(SEAT LIFTER),DK.GRAY,TRIM18
main71930-0D011-B1i200608-200811
W(LOCK),DK.GRAY,TRIM18
main71930-0D011-B1i200811-201107
W(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),DK.GRAY,TRIM1#
main71930-0D011-B1i200811-201107
W(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main71930-0D011-B2i200608-200811
W(LOCK),GRAY,TRIM19
main71930-0D011-B2i200608-200811
W(LOCK),W/O(SEAT LIFTER),GRAY,TRIM19
main71930-0D011-E0i200811-201001
W(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
main71930-0D011-E0i200811-201001
W(LOCK),GREGE,TRIM4#
main71931-0D010-B1i200511-200811
W/O(LOCK),W/O(SEAT LIFTER),DK.GRAY,TRIM18
main71931-0D010-B1i200511-201107
W/O(LOCK),DK.GRAY,TRIM1#
main71931-0D010-B1i200511-200811
W/O(LOCK),DK.GRAY,TRIM18
main71931-0D010-B1i200811-201107
W/O(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),DK.GRAY,TRIM1#
main71931-0D010-B1i200811-201107
W/O(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main71931-0D010-B2i200511-200811
W/O(LOCK),GRAY,TRIM19
main71931-0D010-B2i200511-200811
W/O(LOCK),W/O(SEAT LIFTER),GRAY,TRIM19
main71931-0D010-E0i200811-201001
W/O(LOCK),GREGE,TRIM4#
main71931-0D010-E0i200811-201001
W/O(LOCK),FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
72012CADJUSTER SUB-ASSY, FRONT SEAT, LH
main72020-0D320i200601-200811
W/O(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER
main72020-0D320i200601-200811
W/O(SEAT LIFTER)
main72020-0D330i200601-201107
main72020-0D340i200511-200811
W/O(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER
main72020-0D340i200511-200811
W/O(SEAT LIFTER)
main72020-0D350i200511-201107
main72020-0D360i200601-201107
main72020-0D370i200511-201107
72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
main72148-52010i200511-200811
sub72148-52060
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0D030-B2i200511-200811
DK.GRAY,TRIM1#
main72526-0D140-B0i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM1#
main72526-0D140-B0i200811-201107
DK.GRAY,TRIM1#
main72526-0D140-B0i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),DK.GRAY,TRIM1#
main72526-0D140-B0i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main72526-0D140-B0i200811-201107
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),DK.GRAY,TRIM1#
main72526-0D140-E0i200811-201001
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,GREGE,TRIM4#
main72526-0D140-E0i200811-201001
FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
main72526-0D140-E0i200811-201001
LUNA PACKAGE&DOOR TRIM ORNAMENT-FABRIC LOW(LUNA PACKAGE)&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)&SEAT HEATER-DRIVER & PASSENGER,GREGE,TRIM4#
main72526-0D140-E0i200811-201001
LUNA PACKAGE&DOOR TRIM ORNAMENT-FABRIC LOW(LUNA PACKAGE)&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),GREGE,TRIM4#
main72526-0D140-E0i200811-201001
GREGE,TRIM4#
main72526-0D150-B0i200811-201107
DK.GRAY,TRIM1#
main72526-0D150-E0i200811-201001
GREGE,TRIM4#
72528HANDLE, RECLINING ADJUSTER MEMORY, LH
main72527-0D010-B2i200601-201107
DK.GRAY,TRIM1#
main72527-0D010-B2i200601-200811
DK.GRAY,TRIM18
main72527-0D010-B3i200601-200811
GRAY,TRIM19
main72527-0D010-E0i200811-201001
GREGE,TRIM4#
72572CCAP, RECLINING ADJUSTER KNOB, LH
main72572-0D010-B2i200511-201107
DK.GRAY,TRIM1#
main72572-0D010-E0i200811-201001
GREGE,TRIM4#
72598ABEZEL, RECLINING REMOTE CONTROL, LH
main72597-0D010-B2i200601-200811
DK.GRAY,TRIM18
main72597-0D010-B2i200601-201107
DK.GRAY,TRIM1#
main72597-0D010-B3i200601-200811
GRAY,TRIM19
main72597-0D010-E0i200811-201001
GREGE,TRIM4#
727020D010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0D010
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
90119W0160
main90119-W0160

16 parts on this diagram · 10 diagrams in section
