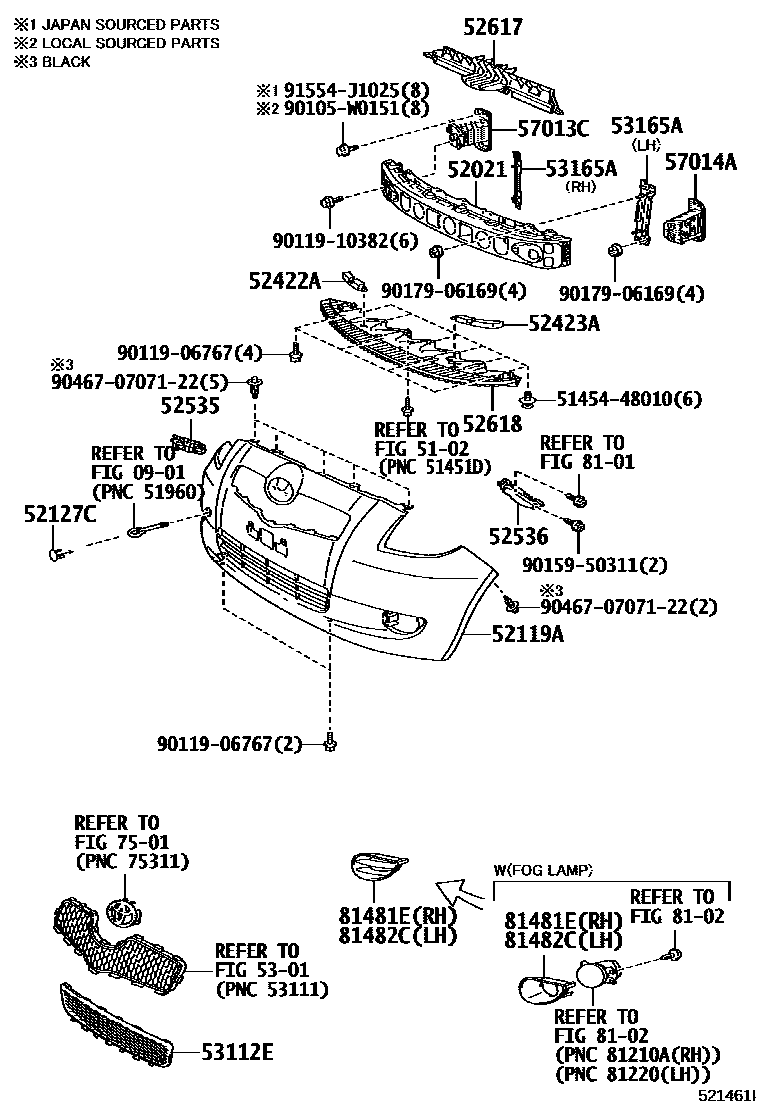

Toyota YARIS (FRP) — FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

0901

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D060iKSP90,NLP90,SCP90..FRP200511-201107

52119ACOVER, FRONT BUMPER

main52119-0D908iKSP90,NLP90,NSP90..FRP200811-201107

PAINT REQ.

main52119-0D977iKSP90,NLP90,SCP90..FRP200511-200811

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-52915iKSP90,NLP90,SCP90..FRP200511-200811

sub52127-52907

main52127-52925iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

main52127-52925iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE

main52127-52925iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR

main52127-52925iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main52127-52925iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

52422APAD, FRONT BUMPER, RH

main52422-0D010iKSP90,NLP90,NSP90..FRP200511-200811

(L)

main52422-52010iKSP90,NLP90,NSP90..FRP200511-200811

(J)

52423APAD, FRONT BUMPER, LH

main52423-0D010iKSP90,NLP90,SCP90..FRP200511-200811

(L)

main52423-52010iKSP90,NLP90,SCP90..FRP200511-200811

(J)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

main52535-0D030iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE

main52535-0D030iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR

main52535-0D030iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main52535-0D030iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

main52535-0D030iKSP90,NLP90,SCP90..FRP200511-200811

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

main52536-0D030iKSP90,NLP90,SCP90..FRP200511-200811

main52536-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE

main52536-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR

main52536-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main52536-0D030iKSP90,NLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52020iKSP90,NLP90,NSP90..FRP200511-200811

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0D010iKSP90,NLP90,SCP90..FRP200511-200811

main52618-0D020iKSP90,NLP90,NSP90..FRP200811

5301

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D050iKSP90,NLP90,SCP90..FRP200511-200811

NO PAINT REQ.

main53112-0D140iNLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

main53112-0D140iNLP90,NSP90..FRP200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

main53112-0D140iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

NO PAINT REQ.

main53112-0D140iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR

main53112-0D140iNSP90..FRP..5D..SOL;NSP90..FRP..LHD..5D..TRSTD200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main53112-0D140iNSP90..FRP..5D..6F..SOL200811

DAIHATSU CHARADE

main53112-0D160iKSP90..FRP200811

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52010iKSP90,NLP90,SCP90..FRP200511-201011

RH

main53164-52060iKSP90,NLP90,NSP90..FRP201011-201107

main53165-52020iKSP90,NLP90,NSP90..FRP200511-201011

LH

sub53164-52060

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D010iKSP90,NLP90,SCP90..FRP200511-201107

sub57013-0D011

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D010iKSP90,NLP90,NSP90..FRP200511-201107

7501

8101

8102

81481ECOVER, FOG LAMP, RH

main81481-0D010iKSP90,NLP90,SCP90..FRP200511-200811

main81481-0D090iKSP90,NLP90,NSP90..FRP..TRSTD200811

RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main81481-0D090iKSP90,NLP90,NSP90..FRP..TRSTD200811

FRONT FOG & DRIVING LAMP-WITHOUT

main81481-0D090iKSP90,NLP90,NSP90..FRP..TRSTD200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

main81481-0D100iKSP90,NLP90,NSP90..FRP..SOL200811

FRONT FOG & DRIVING LAMP-WITH

main81481-0D100iKSP90,NLP90,NSP90..FRP..SOL200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main81481-0D100iKSP90,NLP90,NSP90..FRP..SOL200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

81482CCOVER, FOG LAMP, LH

main81482-0D020iKSP90,NLP90,SCP90..FRP200511-200811

main81482-0D100iKSP90,NLP90,NSP90..FRP..TRSTD200811

RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main81482-0D100iKSP90,NLP90,NSP90..FRP..TRSTD200811

FRONT FOG & DRIVING LAMP-WITHOUT

main81482-0D100iKSP90,NLP90,NSP90..FRP..TRSTD200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITH

main81482-0D110iKSP90,NLP90,NSP90..FRP..SOL200811

FRONT FOG & DRIVING LAMP-WITH

main81482-0D110iKSP90,NLP90,NSP90..FRP..SOL200811

DAIHATSU CHARADE&RADIATOR GRILLE-MATERIAL COLOR&FRONT FOG & DRIVING LAMP-WITHOUT

main81482-0D110iKSP90,NLP90,NSP90..FRP..SOL200811

DAIHATSU CHARADE&FRONT FOG & DRIVING LAMP-WITHOUT

5145448010CLIP

main51454-48010

90105W0151

main90105-W0151

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

29 parts on this diagram · 3 diagrams in section
