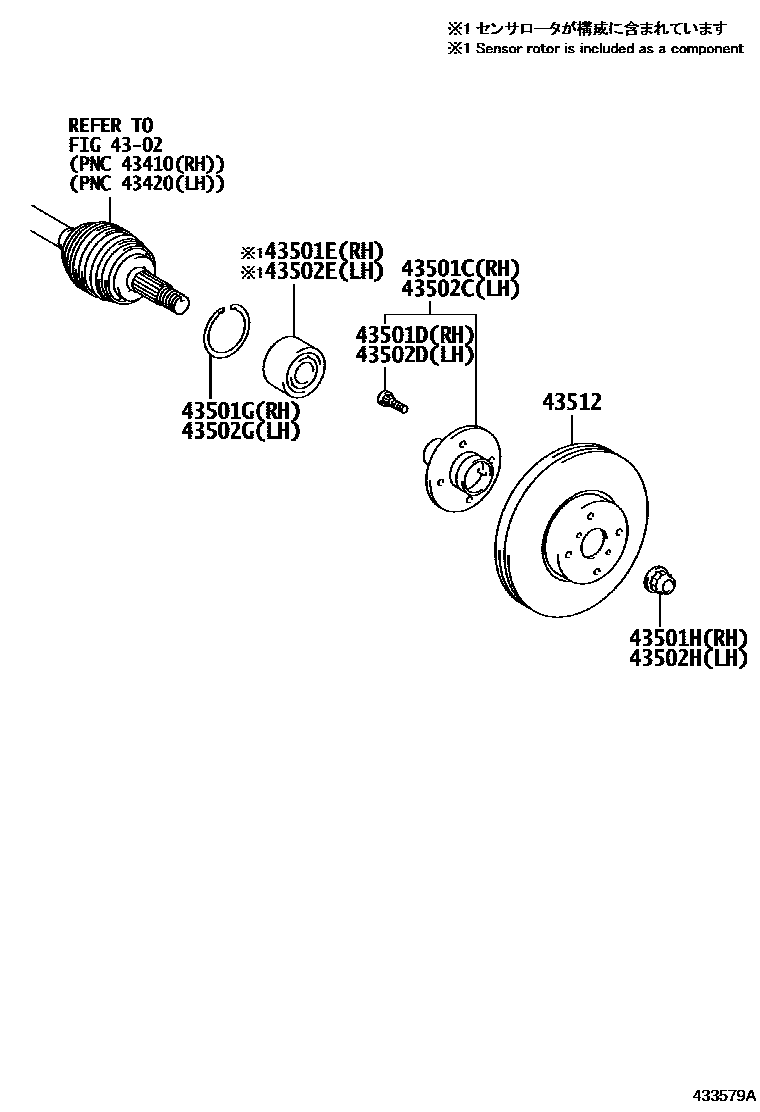

Toyota YARIS (FRP) — FRONT AXLE HUB
4302
43501CHUB SUB-ASSY, FRONT AXLE, RH
sub43502-0D100
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501EBEARING (FOR FRONT AXLE HUB RH)
sub90369-W0002
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
sub43502-0D100
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502EBEARING (FOR FRONT AXLE HUB LH)
sub90369-W0002
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43512DISC, FRONT
12 parts on this diagram · 1 diagram in section
