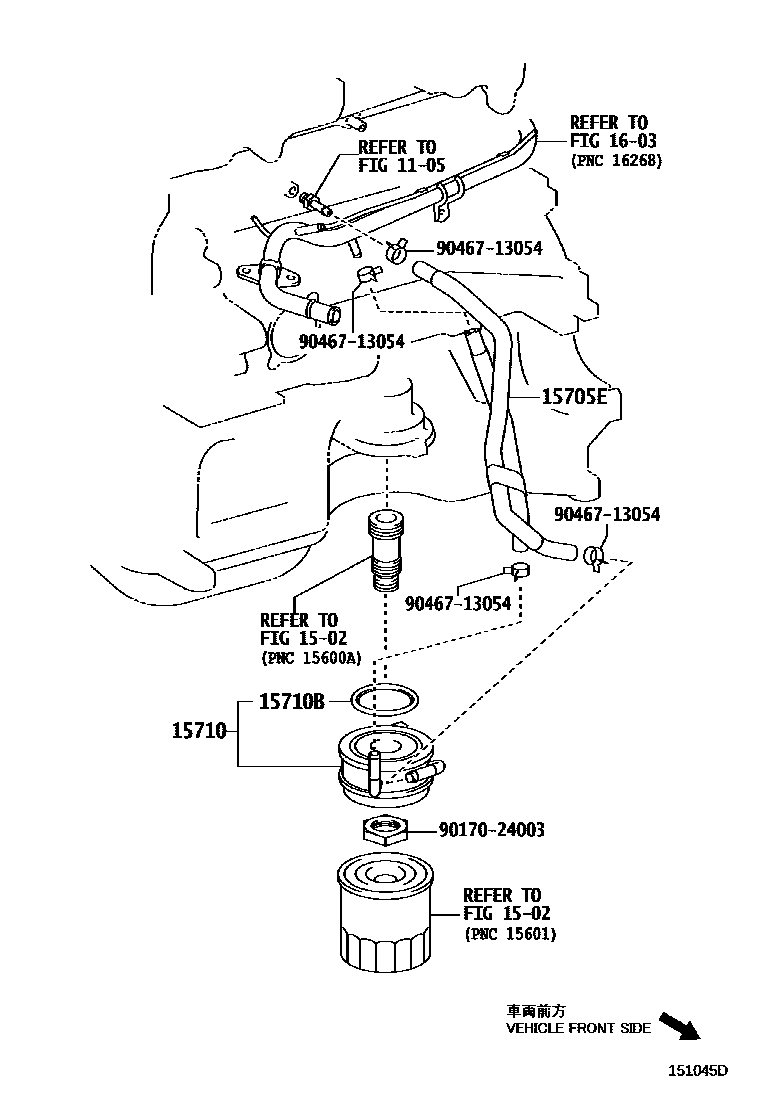

Toyota YARIS (FRP) — ENGINE OIL COOLER

0001 1 0002 1 0003 1EX.EMISSION CONTROL-EUROPE ST0004 1

1105

1502

15705EHOSE SUB-ASSY, OIL COOLER

main15705-33040i1NDTV..NLP90..FRP200511-200811

15710COOLER ASSY, OIL

main15710-33030i1NDTV..NLP90..FRP200511-200811

main15710-33050i1NDTV..NLP90..FRP200811

15710BRING, O(FOR OIL COOLER)

main90301-58002i1NDTV..NLP90..FRP200511-200811

main96723-35024i1NDTV..NLP90..FRP200811

1603

9017024003

main90170-24003

9046713054

main90467-13054

8 parts on this diagram · 4 diagrams in section
