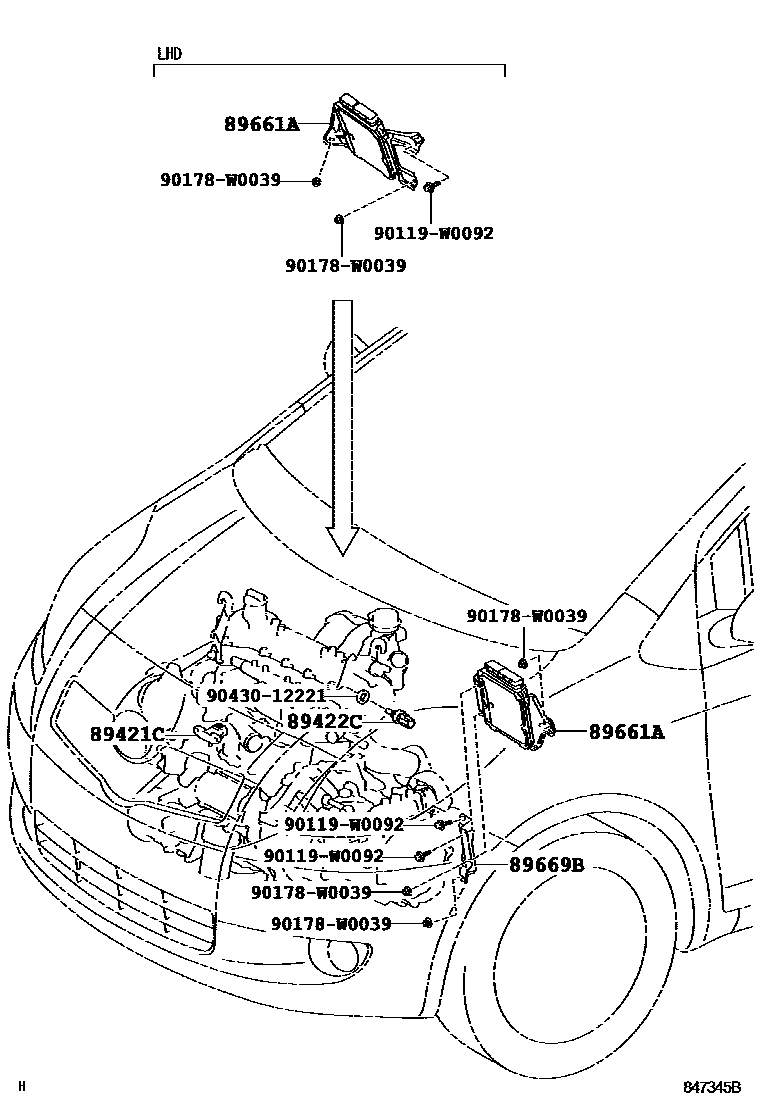

Toyota YARIS (FRP) — ELECTRONIC CONTROLED DIESEL (ECD)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
(J)
89661ACOMPUTER, ENGINE CONTROL
sub89601-0D011
sub89601-0D021
sub89601-0D071
P/N LABEL=896610DC21
sub89601-0D081
P/N LABEL=896610DC31
P/N LABEL=896610DG50
P/N LABEL=896610DG60
sub89660-0D651
sub89660-0D671
sub89660-0DE61
P/N LABEL=896610DC21
sub89660-0DE81
P/N LABEL=896610DC31
P/N LABEL=896610DG50
P/N LABEL=896610DG60
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
90119W0092
main90119-W0092
90178W0039
main90178-W0039
9043012221
main90430-12221
7 parts on this diagram · 2 diagrams in section
