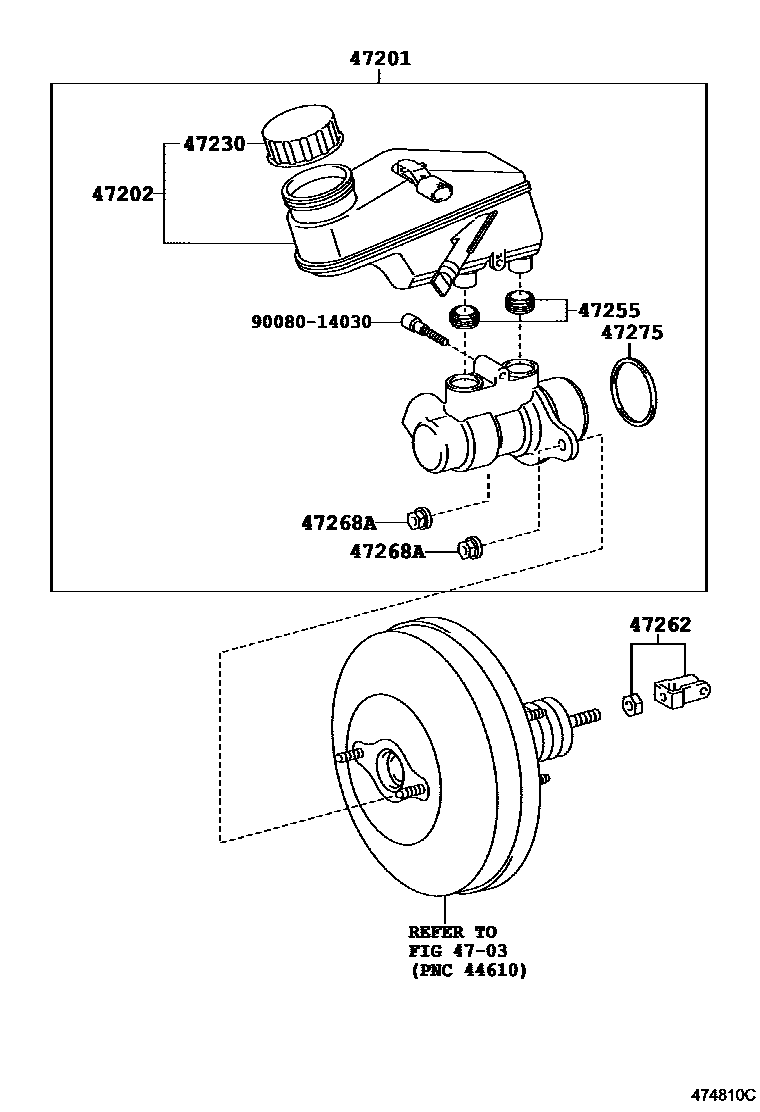

Toyota YARIS (FRP) — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09160iKSP90,NLP90,SCP90..FRP..LHD200511-200712

sub47201-09161

main47201-09161iKSP90,NLP90,NSP90..FRP..LHD200712-200811

main47201-09180iKSP90,NLP90,SCP90..FRP..RHD200511-200712

sub47201-09181

main47201-09181iKSP90,NLP90,SCP90..FRP..RHD200712-200811

main47201-09490iNLP90..FRP..RHD200811

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0D060iKSP90,NLP90,NSP90..FRP..LHD200511-201107

main47220-0D070iKSP90,NLP90,SCP90..FRP..RHD200511-201107

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D060iKSP90,NLP90,SCP90..FRP200511-200811

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09030iKSP90,NLP90,SCP90..FRP200511-200811

47262NUT, MASTER CYLINDER PUSH ROD

main47262-09010iKSP90,NLP90,SCP90..FRP200511-200811

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iKSP90,NLP90,SCP90..FRP200511-201107

47275GASKET, BRAKE MASTER CYLINDER

main47275-0D020iKSP90,NLP90,SCP90..FRP200511-200811

9008014030

main90080-14030

9 parts on this diagram · 2 diagrams in section
