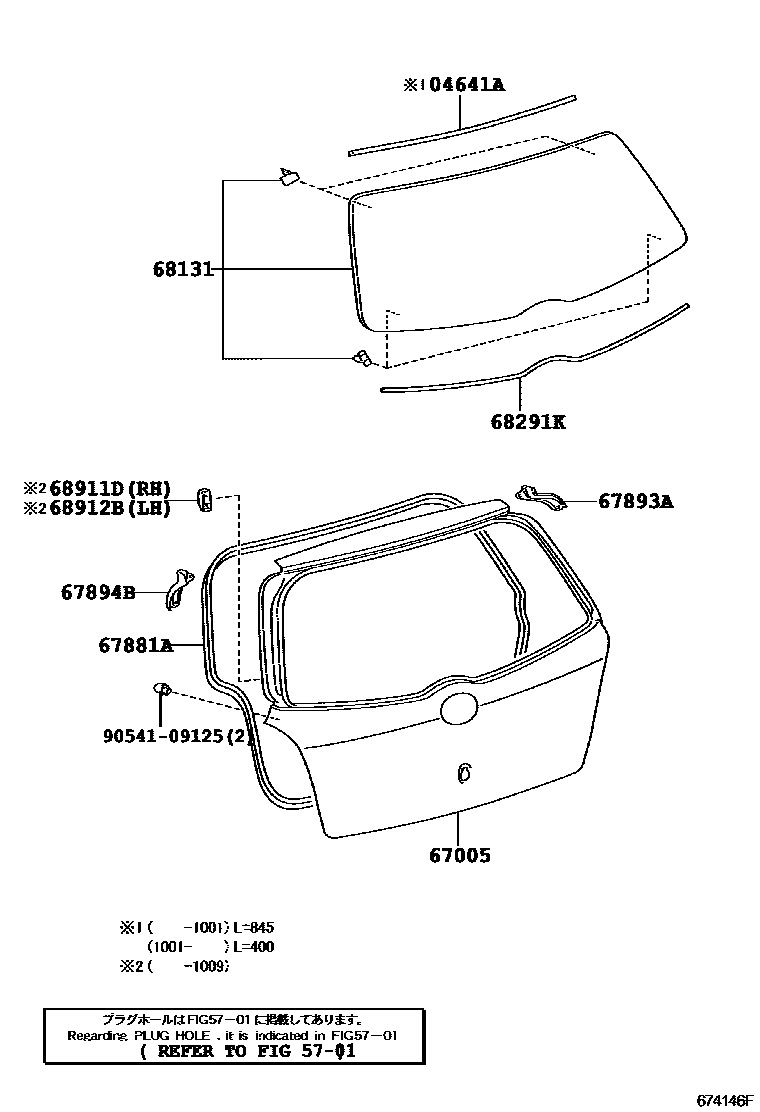

Toyota YARIS (FRP) — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-0D060iKSP90,NLP90,SCP90..FRP200511-200604

sub64813-52070

main64813-52070iKSP90,NLP90,SCP90..FRP200605-201001

sub56117-74010

main64813-52180iKSP90,NLP90,NSP90..FRP201001

sub64813-68010

5701

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D030iKSP90,NLP90,SCP90..FRP200511-201008

sub67005-0D160

main67005-0D160iKSP90,NLP90,NSP90..FRP201009

67881AWEATHERSTRIP, BACK DOOR

main67881-0D020iKSP90,NLP90,NSP90..FRP200511-200811

sub67881-52110

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D010iKSP90,NLP90,SCP90..FRP200511-200811

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-0D010iKSP90,NLP90,SCP90..FRP200511-200811

68131GLASS, BACK DOOR

main68105-0D050iKSP90,NLP90,SCP90..FRP200511-200811

*EHT,T=3.1,GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-0D010iKSP90,NLP90,SCP90..FRP200511-200604

sub64814-52040

main64814-52040iKSP90,NLP90,SCP90..FRP200605-200811

sub56117-50140

68911DCOVER, BACK DOOR STAY, RH

main68911-52010iKSP90,NLP90,SCP90..FRP200511-201009

68912BCOVER, BACK DOOR STAY, LH

main68912-52010iKSP90,NLP90,SCP90..FRP200511-201009

9054109125

main90541-09125

11 parts on this diagram · 2 diagrams in section
