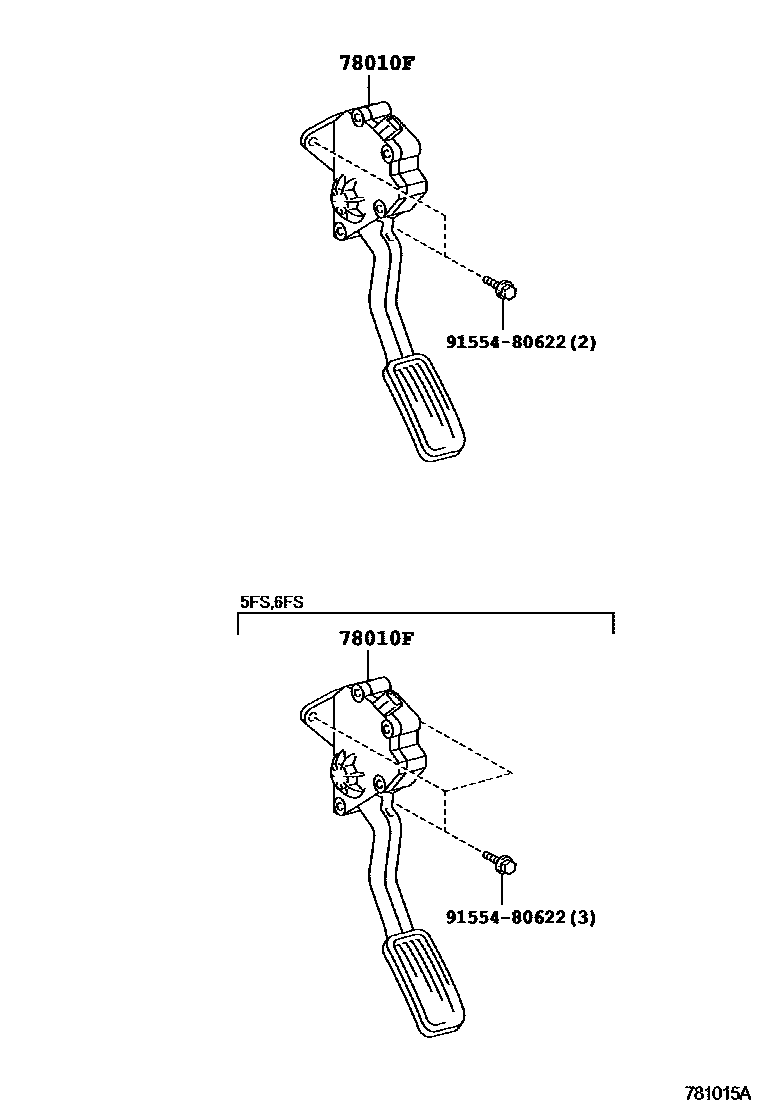

Toyota YARIS (FRP) — ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78110-0D010iKSP90,NLP90,SCP90..FRP..LHD..5F200511-200907

main78110-0D011iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F)200908

main78110-0D020iKSP90,NLP90,SCP90..FRP..RHD200511-200905

sub78110-0D021

main78110-0D021iKSP90,NLP90,NSP90..FRP..RHD200908

main78110-0D030iKSP90,NLP90,NSP90..FRP..LHD..(5FS,6FS)200511-200907

main78110-0D031iKSP90,NLP90,NSP90..FRP..LHD..(5FS,6FS)200908

main78110-52010iKSP90,NLP90,NSP90..FRP..RHD200905-200908

sub78110-52011

9155480622

main91554-80622

2 parts on this diagram · 2 diagrams in section
