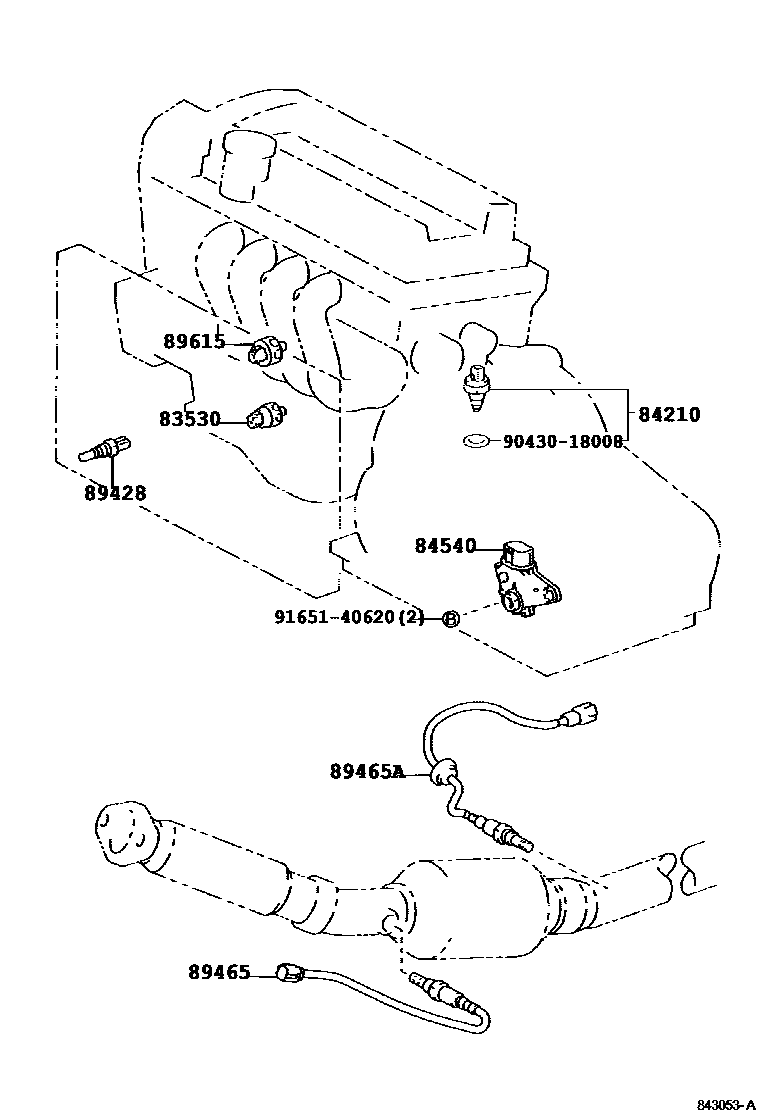

Toyota YARIS/ECHO VERSO — SWITCH & RELAY & COMPUTER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010i200110-200211

DENSO

main83530-28020i199908-200211

main83530-60010i200110-200211

YAZAKI

main83530-60020i200308-200509

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i199908-200211

84540SWITCH ASSY, NEUTRAL START

main84540-52010i199908-200211

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110i199908-200211

89465SENSOR, OXYGEN

main89465-20810i200211-200509

TYPE A:REFER TO ILLUSTRATION

main89465-52050i199908-200211

main89465-52190i200211-200509

TYPE B:REFER TO ILLUSTRATION

89465ASENSOR, OXYGEN NO.2

main89465-52060i199908-200211

main89465-52070i200008-200211

main89465-52200i200211-200509

TYPE B:REFER TO ILLUSTRATION

main89465-52220i200211-200509

TYPE A:REFER TO ILLUSTRATION

89615SENSOR, KNOCK CONTROL

main89615-22050i199908-200008

DENSO

main89615-52010i199908-200008

MATSUSHITA

main89615-52030i200211-200309

DENSO

main89615-52040i200211-200309

TOYOTA

9043018008

main90430-18008

9165140620

main91651-40620

9 parts on this diagram · 13 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota YARIS/ECHO VERSO

This section contains 120 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota YARIS/ECHO VERSO. Key components include: RELAY ASSY, STARTER, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, SHIFT LOCK UNIT, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
