Toyota YARIS/ECHO VERSO — HEATING & AIR CONDITIONING - SET

88300COOLER & ACCESSORY ASSY

main88300-52290i199908-200008

main88300-52291i200008-200211

main88300-52300i199908-200008

W(HEATER)

main88300-52301i200008-200211

W(HEATER)

main88300-52310i199908-200008

W(BOOST VENTILATOR)

main88300-52311i200008-200211

W(BOOST VENTILATOR)

main88300-52390i200110-200211

main88300-52392i200211-200308

main88300-52393i200308-200312

main88300-52394i200312-200509

main88300-52400i200110-200211

W(HEATER)

main88300-52402i200211-200308

main88300-52403i200308-200312

main88300-52404i200312-200509

main88300-52410i200110-200211

W(BOOST VENTILATOR)

main88300-52412i200211-200212

W(BOOST VENTILATOR)

main88300-52471i200211-200308

main88300-52472i200308-200509

main88300-52481i200211-200308

main88300-52482i200308-200509

main88300-52490i200211-200212

W(BOOST VENTILATOR)

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-52040i200008-200211

main88820-52041i200211-200509

main88820-52101i200301-200509

main88820-52111i200301-200509

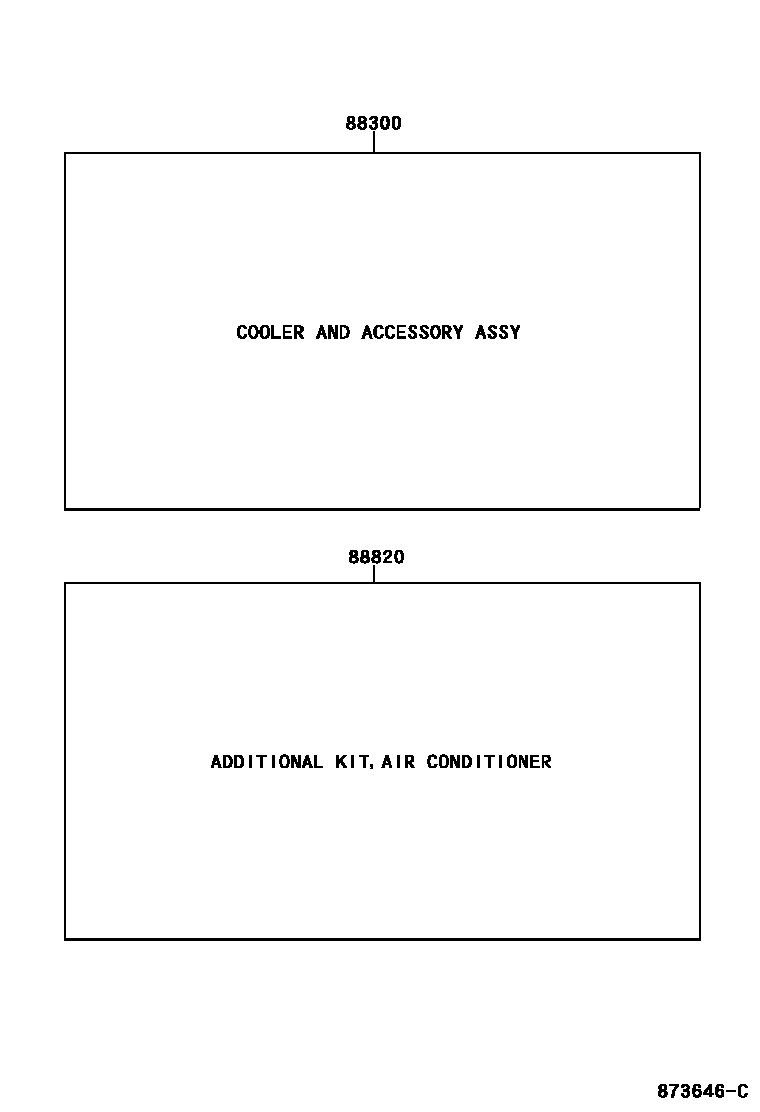

2 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota YARIS/ECHO VERSO

This section contains 2 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota YARIS/ECHO VERSO. Key components include: COOLER & ACCESSORY ASSY, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1.
