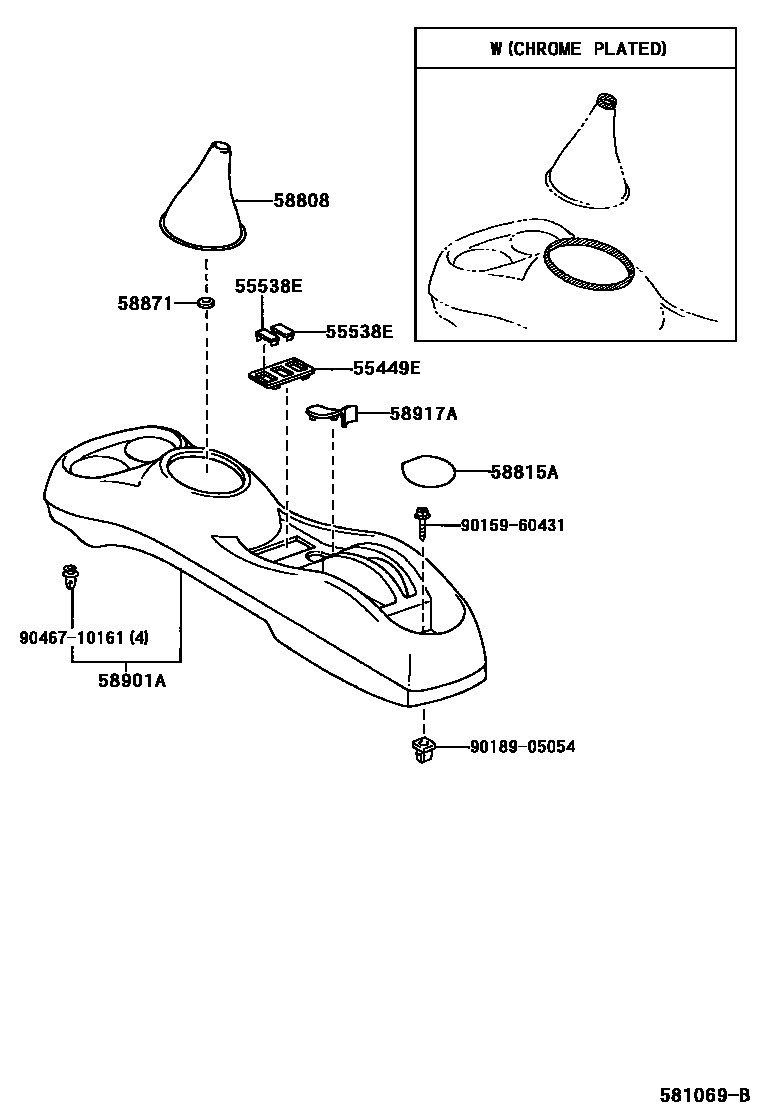

Toyota YARIS/ECHO VERSO — CONSOLE BOX & BRACKET

55449EBASE, SWITCH

main55449-52010-B0i199908-200211

MD.GRAY,TRIM9#

main55449-52010-B3i200211-200509

DK.GRAY,TRIM1#

main55449-52010-G0i199908-200211

MIST GREEN,TRIM7#

55538ECOVER, SPARE SWITCH HOLE

main55539-32010-B7i199908-200211

MD.GRAY,TRIM9#

main55539-32010-G3i199908-200211

MIST GREEN,TRIM7#

main55539-32010-P3×2i200211-200509

DK.GRAY,TRIM1#; W(POWER DOOR LOCK & POWER HEATER),DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52020-B0i199908-200211

BLUE GRAY,TRIM9#

main58808-52020-B4i200211-200509

DK.GRAY,TRIM1#

main58808-52020-G0i199908-200211

MIST GREEN,TRIM7#

main58808-52050-B0i200211-200509

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52010i199908-200211

58871CUSHION, CONSOLE BOX

main58871-20060i200211-200509

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52010-B0i199908-200211

MD.GRAY,TRIM9#

main58911-52010-B3i200211-200509

DK.GRAY,TRIM1#

main58911-52010-G0i199908-200211

MIST GREEN,TRIM7#

main58911-52020-B2i200211-200509

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52010-B0i199908-200211

MD.GRAY,TRIM9#

main58917-52010-B3i200211-200509

DK.GRAY,TRIM1#

main58917-52010-G0i199908-200211

MIST GREEN,TRIM7#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

10 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota YARIS/ECHO VERSO

This section contains 10 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS/ECHO VERSO. Key components include: BASE, SWITCH, COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, CUSHION, CONSOLE BOX.
