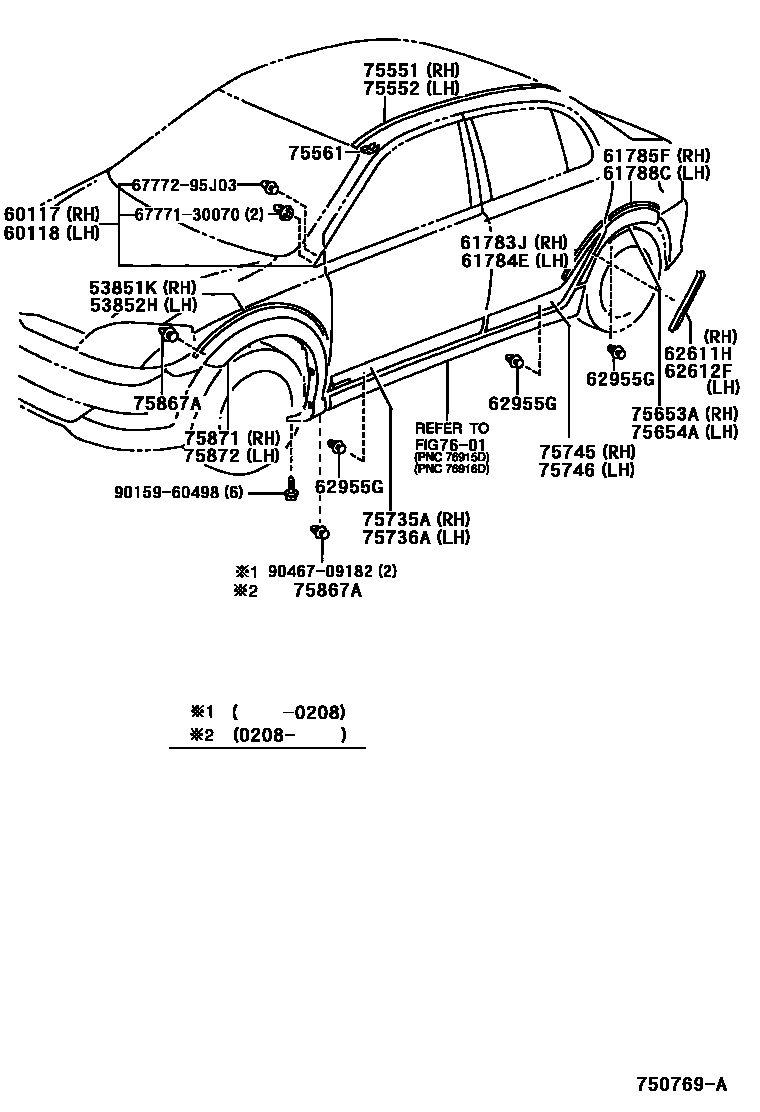

Toyota YARIS/ECHO 4D — SIDE MOULDING
53851KPAD, FRONT WHEEL OPENING EXTENSION, RH
53852HPAD, FRONT WHEEL OPENING EXTENSION, LH
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61783JPAD, REAR WHEEL OPENING EXTENSION, NO.2
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
61785FPAD, REAR WHEEL OPENING EXTENSION, NO.3
61788CPAD, REAR WHEEL OPENING EXTENSION, NO.4
62611HPAD, QUARTER WHEEL HOUSE, RH
62612FPAD, QUARTER WHEEL HOUSE, LH
62955GRETAINER, QUARTER VENT LOUVER
DOOR MOULDING; QUARTER MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75653AMOULDING, QUARTER, OUTSIDE REAR RH
75654AMOULDING, QUARTER, OUTSIDE REAR LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75867ACLIP, ROCKER PANEL MOULDING
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
7601MUDGUARD & SPOILER
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9015960498
main90159-60498
9046709182
main90467-09182
28 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota YARIS/ECHO 4D
This section contains 28 genuine Toyota parts for the SIDE MOULDING system of the Toyota YARIS/ECHO 4D. Key components include: PAD, FRONT WHEEL OPENING EXTENSION, RH, PAD, FRONT WHEEL OPENING EXTENSION, LH, COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, PAD, REAR WHEEL OPENING EXTENSION, NO.2.
