Toyota YARIS/ECHO 4D — METER

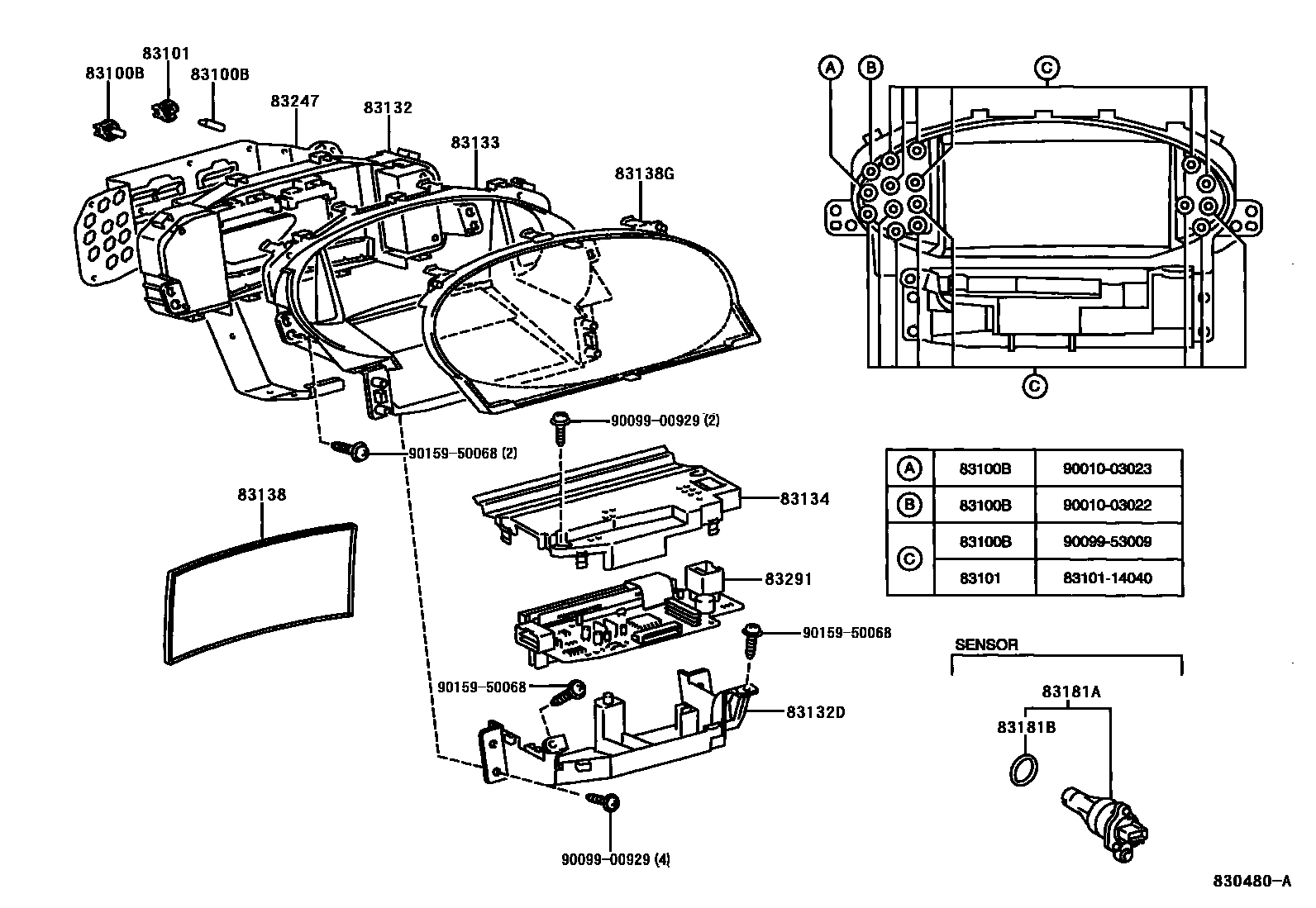

Parts diagram
83100METER ASSY, COMBINATION
main83800-52380i199908-200208
main83800-5C110i200208
83100BBULB, COMBINATION METER, NO.1
main83119-32010i199908-200208
14V 3.0W,TYPE B:REFER TO ILLUSTRATION
main83120-24010i199908-200208
13.5V,W(SOCKET),TYPE F:REFER TO ILLUSTRATION
main90010-03022i199908-200208
14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION
main90010-03023i199908-200208
14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION
main90010-03024i199908-200208
14V 1.4W,TYPE D:REFER TO ILLUSTRATION
main90010-03031i199908-200208
14V 2.0W,TYPE D:REFER TO ILLUSTRATION
main90010-03067i200208-200512
14V 1.12W,TYPE B:REFER TO ILLUSTRATION
main90099-53009i199908-200208
14V0.84W W/O(SOCKET),TYPE C OR TYPE F:REFER TO ILLUSTRATION
main90981-11018i199908-200208
12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION
main99132-12034i199908-200208
12V 3.4W,TYPE A:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030i200208
TYPE A:REFER TO ILLUSTRATION
main83101-14040i199908-200208
TYPE C OR TYPE E:REFER TO ILLUSTRATION
main83101-32020i200208
TYPE B:REFER TO ILLUSTRATION
83132CASE, COMBINATION METER
main83841-52040i199908-200208
ANALOGUE METER
main83841-52120i199908-200208
DIGITAL METER W/TACHO,KM/H & W(LIGHT REMIND WARNING)
main83841-52130i199908-200208
DIGITAL METER W/TACHO,MILE/H+KM/H
main83841-52180i199908-200208
DIGITAL METER W/TACHO,KM/H
main83841-52190i199908-200208
DIGITAL METER W/TACHO,KM/H OR DIGITAL METER W/TACHO,MILE/H+KM/H
main83841-52200i199908-200208
DIGITAL METER
main83841-52430i199908-200208
main83841-52470i199908-200208
ANALOGUE METER
main83841-5C060i200208
DIGITAL METER
main83841-5C120i200208
main83841-5C140i200208
ANALOGUE METER
main83841-5C150i200208
DIGITAL METER
main83841-5C160i200208
ANALOGUE METER
83132DCASE, COMBINATION METER, NO.2
main83842-52100i200208
main83842-52120i200208
83133PLATE, COMBINATION METER, NO.1
main83811-52040i199908-200208
ANALOGUE METER
main83811-52100i199908-200208
DIGITAL METER
main83811-52120i200208
DIGITAL METER
main83811-5C060i200208
83134COVER, COMBINATION METER, NO.1
main83821-52100i200208
main83821-52120i200208
83138GLASS, SPEEDOMETER
main83852-52110i199908-200208
83138GGLASS, COMBINATION METER
main83852-52040i199908-200208
ANALOGUE METER
main83852-52100i199908-200208
main83852-52120i199908-200208
W(LIGHT REMIND WARNING)
sub83852-52480
main83852-52130i199908-200208
W(LIGHT REMIND WARNING)
83181ASENSOR, SPEEDOMETER
main83181-12020i199908-200208
main83181-12040i200208-200512
83181BRING, O (FOR SPEEDOMETER SENSOR)
main96711-24018i200208
main96711-24030i199908-200208
83247PLATE, METER CIRCUIT
main83861-52060i200208
W(LIGHT REMIND WARNING)
main83861-52070i199908-200009
ANALOGUE METER,KM/H OR ANALOGUE METER,MILE/H+KM/H
main83861-52090i200208
ANALOGUE METER
main83861-52120i199908-200208
DIGITAL METER W/TACHO,KM/H OR DIGITAL METER W/TACHO,MILE/H+KM/H
main83861-52130i199908-200208
DIGITAL METER W/TACHO,KM/H OR DIGITAL METER W/TACHO,MILE/H+KM/H
main83861-52200i199908-200208
DIGITAL METER,KM/H OR DIGITAL METER W/TACHO,KM/H
main83861-52430i199908-200208
main83861-52470i199908-200208
main83861-5C120i200208
DIGITAL METER
main83861-5C140i200208
ANALOGUE METER
main83861-5C150i200208
DIGITAL METER
83291COMPUTER, COMBINATION METER
main83291-52030i199908-200208
DIGITAL METER W/TACHO,KM/H & W(LIGHT REMIND WARNING)
main83291-52040i199908-200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(LIGHT REMIND WARNING)
main83291-52050i199908-200208
DIGITAL METER W/TACHO,KM/H & W(LIGHT REMIND WARNING)
main83291-52060i199908-200208
DIGITAL METER W/TACHO,KM/H
main83291-52070i199908-200208
DIGITAL METER W/TACHO,KM/H
main83291-52080i199908-200208
main83291-52100i199908-200208
DIGITAL METER W/TACHO,MILE/H+KM/H
main83291-52110i199908-200208
main83291-52120i199908-200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(LIGHT REMIND WARNING)
main83291-52130i199908-200208
DIGITAL METER W/TACHO,MILE/H+KM/H
main83291-52460i200208
main83291-52490i200208
main83291-52510i200208
DIGITAL METER W/TACHO,KM/H & W(*80 & LIGHT REMIND WARNING)
main83291-52520i200208
DIGITAL METER W/TACHO,KM/H & W(*80)
main83291-52530i200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(*80 & LIGHT REMIND WARNING)
main83291-52540i200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(*80)
main83291-52590i200208
DIGITAL METER W/TACHO,KM/H & W(*80 & LIGHT REMIND WARNING)
main83291-52600i200208
DIGITAL METER W/TACHO,KM/H & W(*80)
main83291-52610i200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(*80 & LIGHT REMIND WARNING)
main83291-52620i200208
DIGITAL METER W/TACHO,MILE/H+KM/H & W(*80)
9009900929
main90099-00929
9015950068
main90159-50068

15 parts on this diagram · 6 diagrams in section
