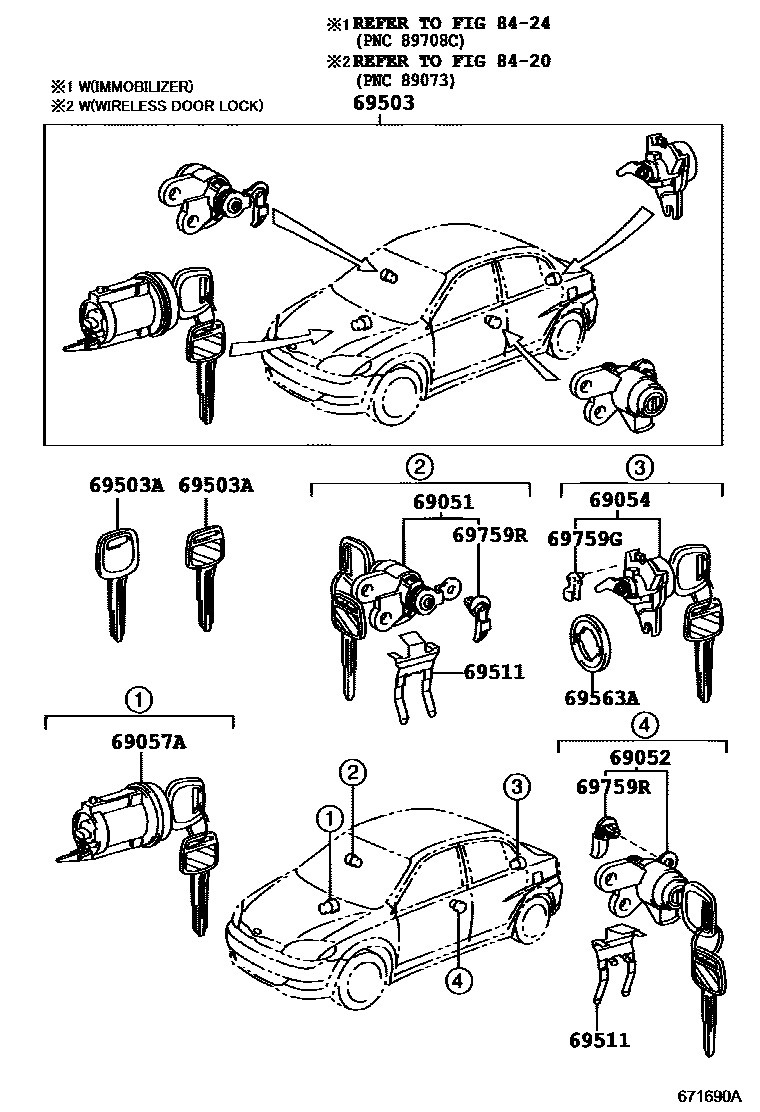

Toyota YARIS/ECHO 4D — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52030i199908-200208

main69051-52040i199908-200208

W(IMMOBILIZER)

main69051-52210i200208-200601

W(LUGGAGE COMPARTMENT DOOR OPENER=W/CANCEL)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52030i199908-200208

main69052-52040i199908-200208

W(IMMOBILIZER)

main69052-52260i200208-200601

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-52080i199908-200208

main69055-52090i199908-200208

W(IMMOBILIZER)

main69055-52100i199908-200112

main69055-52250i200208-200601

W(IMMOBILIZER & WIRELESS OR IMMOBILIZER)

main69055-52260i200208-200601

W(KEY LESS ENTRY)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20480i200208-200512

main69057-52030i199908-200208

69503CYLINDER SET, LOCK

main69005-52180i199908-200208

main69005-52560i200208

69503AKEY, BLANK

main90999-00149i199908-200208

MASTER KEY,W(*68)

main90999-00163i199908-200208

MASTER KEY

main90999-00186i200208

MASTER KEY

main90999-00199i200208

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030i199908-200208

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-10020i199908-200208

main69563-52030i200208

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080i199908-200208

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090i199908-200208

main69759-32100i199908-200208

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

12 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota YARIS/ECHO 4D

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota YARIS/ECHO 4D. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
