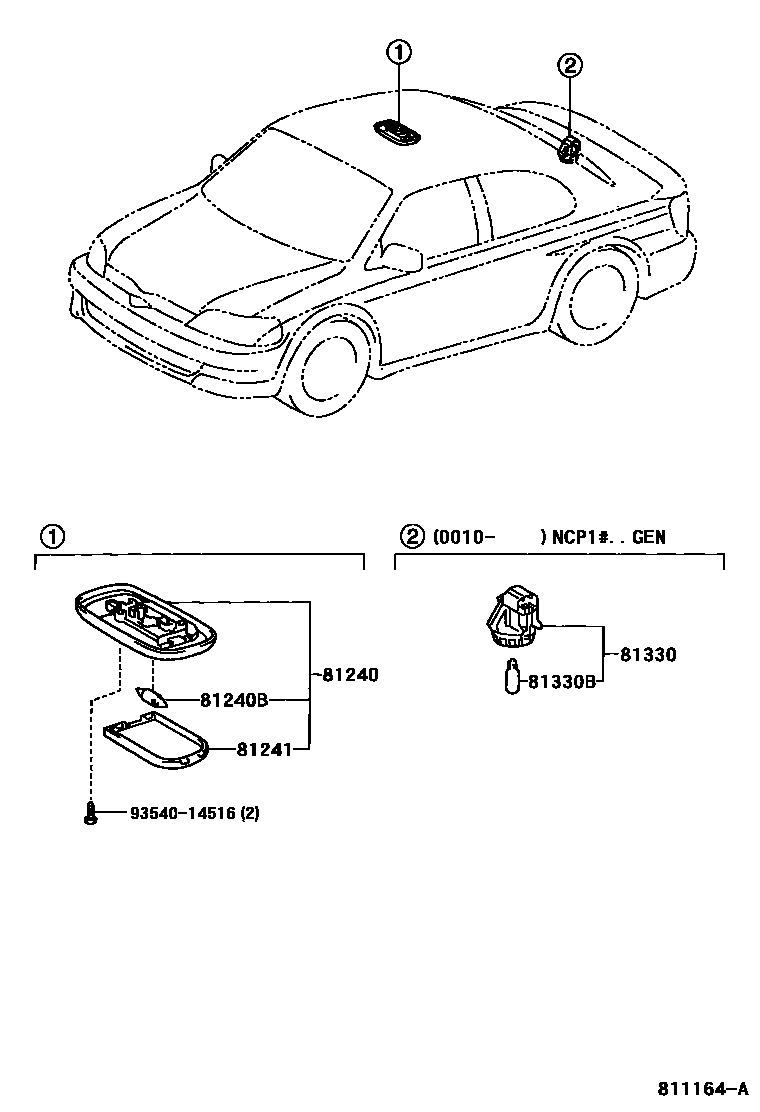

Toyota YARIS/ECHO 4D — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A2i200208-200512

IVORY,TRIM4#

main81240-12060-P0i199908-200208

LT.GRAY,TRIM1#,9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199908-200208

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020i199908-200208

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i200010-200208

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i200010-200208

12V 3.8W

9354014516

main93540-14516

6 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota YARIS/ECHO 4D

This section contains 6 genuine Toyota parts for the INTERIOR LAMP system of the Toyota YARIS/ECHO 4D. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, LUGGAGE COMPARTMENT, NO.1, BULB, LUGGAGE COMPARTMENT LAMP.
