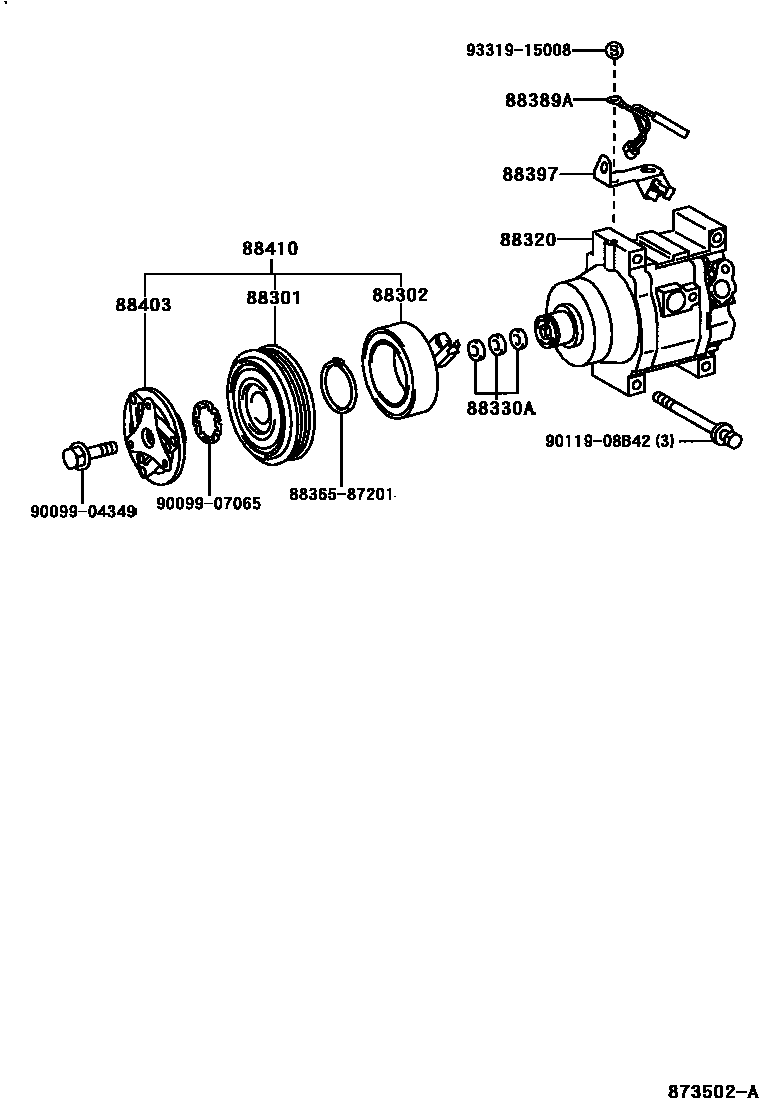

Toyota YARIS/ECHO 4D — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-1A160i200008-200208

main88412-52040i199908-200008

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070i199908-200008

main88411-1A050i200008-200208

88320COMPRESSOR ASSY, COOLER

main88320-52010i200103-200208

DEALER OPTION & W(MANUAL AIR CONDITIONER---DIAL TYPE)

main88320-52030i199908-200208

main88320-52040i199908-200208

main88320-52120i200208-200308

main88320-52190i200208-200308

main88320-52400i200308-200512

main88320-52410i200308-200512

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199908-200208

88389AWIRE, COMPRESSOR

main88389-10020i199908-200208

MAKER OPTION

88397CLIP, SENSOR

main88397-52020i199908-200208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020i199908-200008

main88403-1A020i200008-200208

88410CLUTCH ASSY, MAGNET

main88410-1A210i200008-200208

W(MANUAL AIR CONDITIONER---DIAL TYPE)

main88410-2B260i200303-200308

OD=105

main88410-2B280i200308-200601

OD=105

main88410-52050i199908-200103

main88410-52140i200208-200308

DEALER OPTION

main88410-52141i200307-200308

main88410-52230i200308-200405

DEALER OPTION

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota YARIS/ECHO 4D

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota YARIS/ECHO 4D. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), WIRE, COMPRESSOR.
