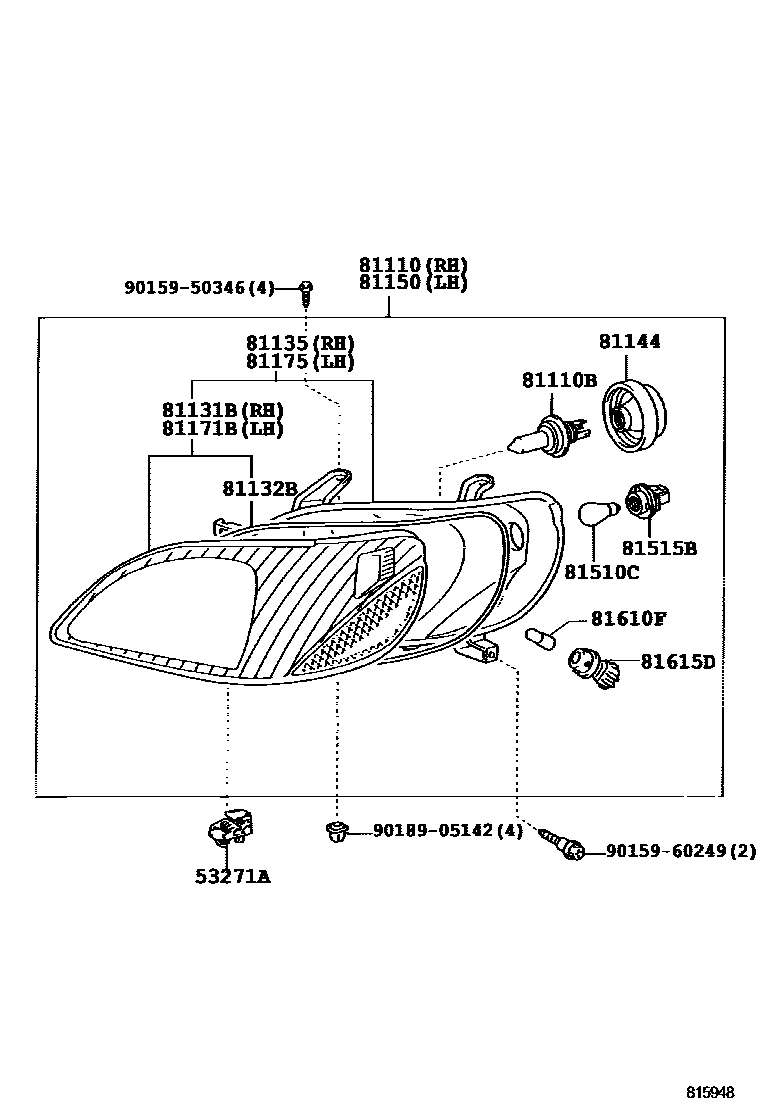

Toyota YARIS/ECHO 4D — HEADLAMP
81110HEADLAMP ASSY, RH
LH TRAFFIC SPEC
SINGAPORE SPEC
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
12V 60/55W,HALOGEN
12V 60/55W,*HAL *WH
81131BHEAD LAMP LENS, RH
LH TRAFFIC SPEC
SINGAPORE SPEC
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
LH TRAFFIC SPEC
SINGAPORE SPEC
LH TRAFFIC SPEC
SAUDI ARABIA SPEC
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
LH TRAFFIC SPEC
SINGAPORE SPEC
81171BHEAD LAMP LENS, LH
LH TRAFFIC SPEC
SINGAPORE SPEC
81175UNIT ASSY, HEADLAMP, LH
LH TRAFFIC SPEC
SINGAPORE SPEC
LH TRAFFIC SPEC
SAUDI ARABIA SPEC
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER; 12V 21W,AMBER,LH TRAFFIC SPEC
12V 21W,AMBER; 12V 21W,AMBER,SINGAPORE SPEC
81515BSOCKET, FRONT TURN SIGNAL LAMP
SINGAPORE SPEC
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
9015950346
main90159-50346
9015960249
main90159-60249
9018905142
main90189-05142
17 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota YARIS/ECHO 4D
This section contains 23 genuine Toyota parts for the HEADLAMP system of the Toyota YARIS/ECHO 4D. Key components include: FRONT BUMPER & BUMPER STAY, BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), HEAD LAMP LENS, RH.
