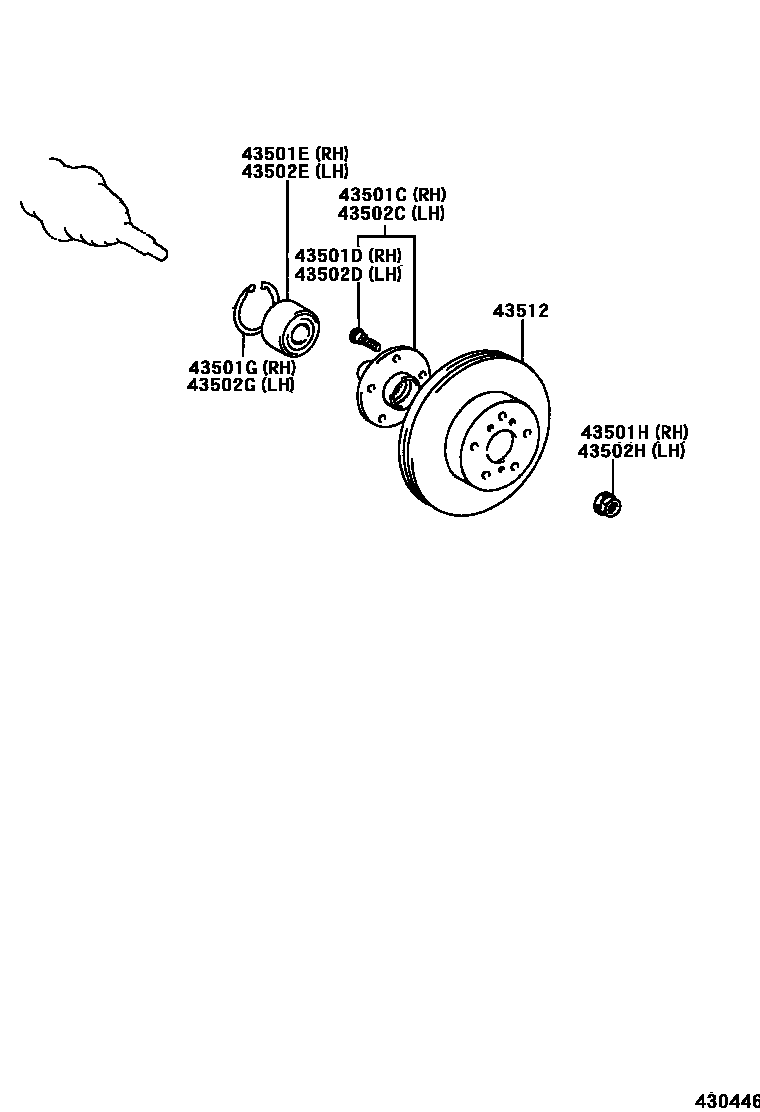

Toyota YARIS/ECHO 4D — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010i199908-200208

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i199908-200208

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021i199908-200208

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i199908-200208

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i199908-200208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010i199908-200208

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i199908-200208

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021i200208

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i199908-200208

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200208

43512DISC, FRONT

main43512-52020×2i199908-200001

W(ABS)

main43512-52050×2i199908-200001

W/O(ABS)

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota YARIS/ECHO 4D

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota YARIS/ECHO 4D. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
