Toyota YARIS/ECHO 4D — FLOOR PAN & LOWER BACK PANEL

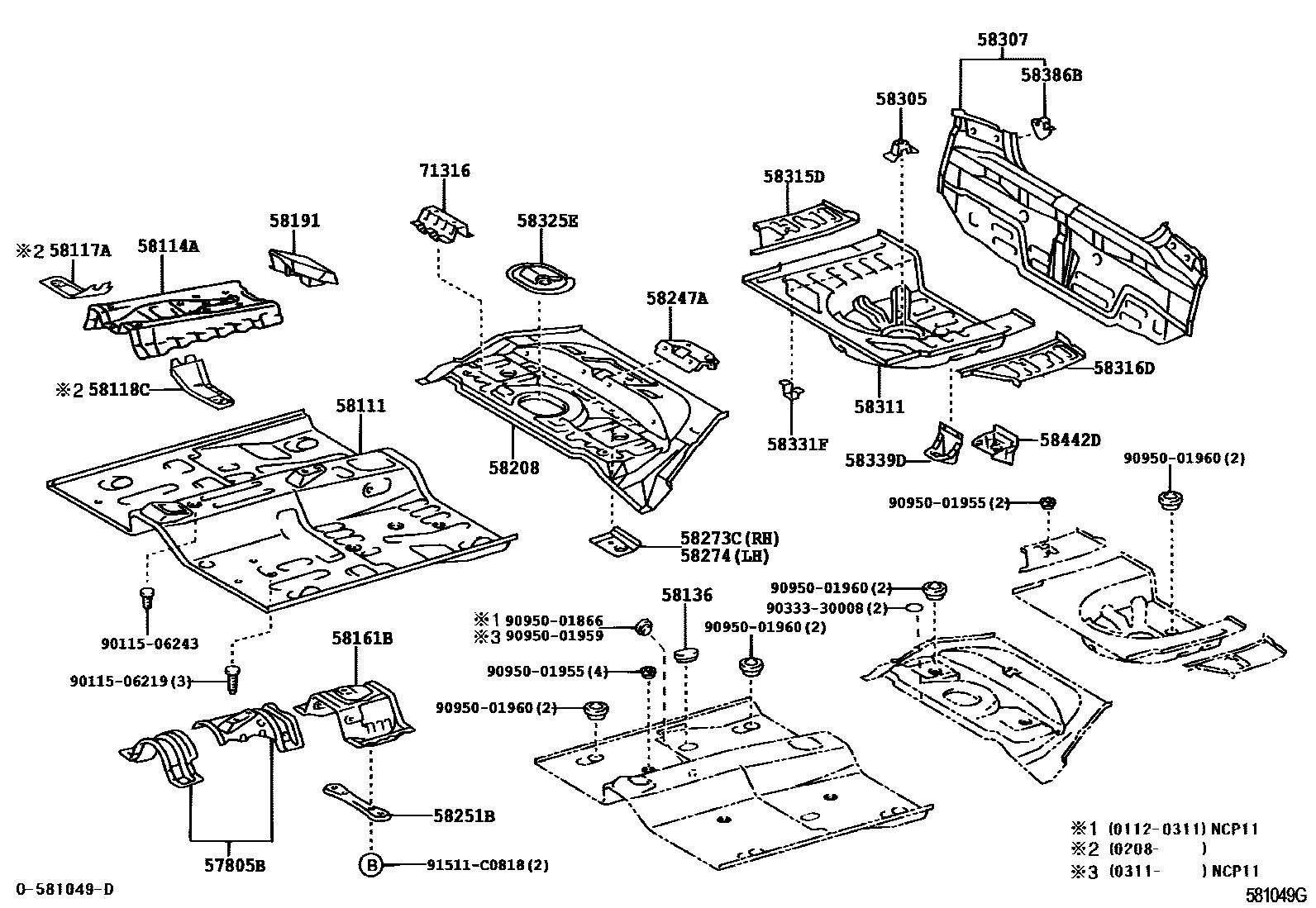

Parts diagram
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
main57805-52021i199908-200008
main57805-52022i200008-200208
main57805-52120i200212
58111PAN, FRONT FLOOR
main58111-52900i199908-200005
main58111-52906i200005-200208
58114AREINFORCEMENT, FRONT FLOOR PANEL
main58103-52010i200208-200212
main58103-52011i200212
sub58103-52013
main58114-52010i199908-200203
sub58114-52011
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
main58117-52040i200208
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
main58118-52030i200208
58136COVER, FRONT FLOOR HOLE
main58136-52010×2i199908-200208
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
main58161-52010i200208
58191FOOTREST, FRONT FLOOR
main58191-52010i199908-200208
main58191-52060i200212-200301
main58191-52061i200301
58208PAN, CENTER FLOOR
main58211-52050i199908-200208
W(FIXED TYPE REAR SEAT)
main58211-52051i200212
W(FIXED TYPE REAR SEAT)
main58211-52060i200208-200212
W(6:4 SPRIT REAR SEAT)
main58211-52061i200212
W(6:4 SPRIT REAR SEAT)
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
main58247-52010i199908-200208
W(FIXED TYPE REAR SEAT)
main58247-52020i199908-200208
W(6:4 SPRIT REAR SEAT)
58251BBRACE, FLOOR PANEL, FRONT
main58251-52010i199908-200208
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
main58273-52030i199908-200208
main58273-52031i200212
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
main58274-52020i199908-200208
main58274-52021i200212
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
main58351-32010i199908-200102
main58351-33010i200102-200208
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-52080i199908-200208
main58307-52090i199908-200208
main58307-52240i200208-200512
main58307-52270i200208-200511
58311PAN, REAR FLOOR
main58311-52050i199908-200208
58315DEXTENSION, REAR FLOOR PAN, RH
main58315-52050i199908-200208
58316DEXTENSION, REAR FLOOR PAN, LH
main58316-52050i199908-200208
58325ECOVER, REAR FLOOR SERVICE HOLE
main58325-52010i199908-200208
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
main58331-10010i199908-200208
58339DBRACKET, JACK UP
main58339-52010i199908-200208
58386BBRACKET, REAR BUMPER COVER, NO.2
main58386-52020×2i199908-200208
58442DCOVER, JACK
main58442-52030i199908-200208
71316BRACKET, REAR SEAT SUPPORT
main71316-52060×2i199908-200208
sub71307-52011
main71316-52061×2i200208
9011506219
main90115-06219
9011506243
main90115-06243
9033330008
main90333-30008
9095001866
main90950-01866
9095001955
main90950-01955
9095001959
main90950-01959
9095001960
main90950-01960
91511C0818
main91511-C0818

32 parts on this diagram · 1 diagram in section
