Toyota YARIS/ECHO 4D — CONSOLE BOX & BRACKET

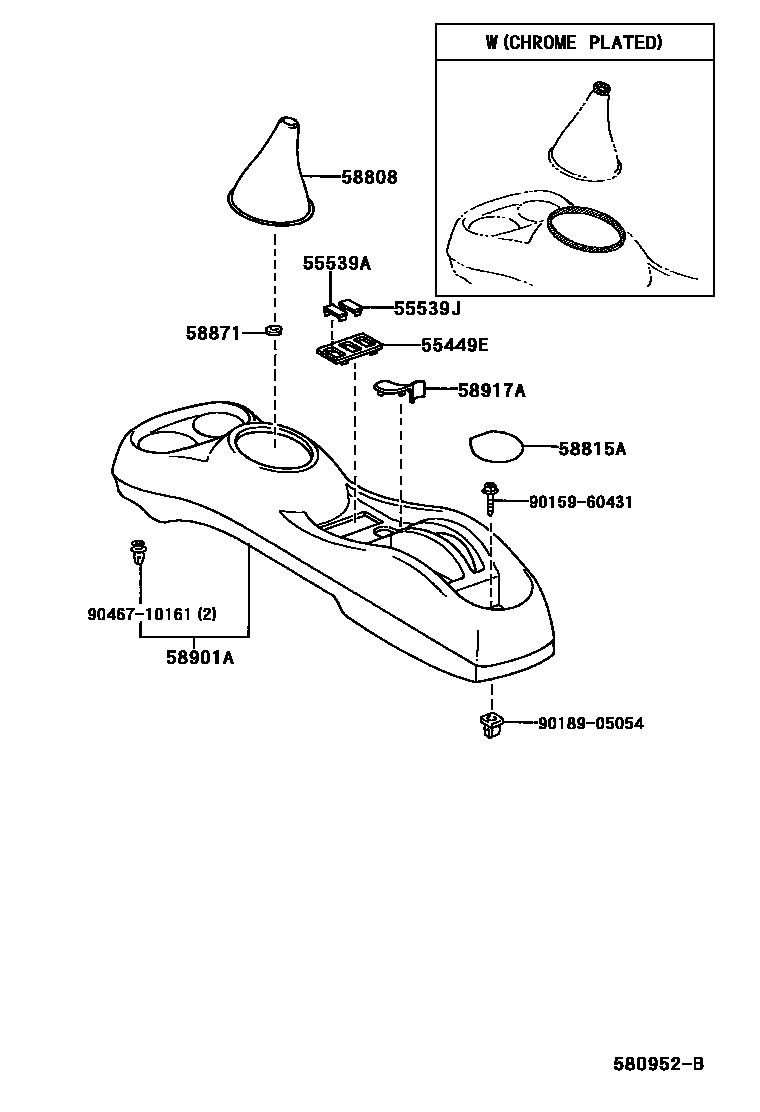

Parts diagram
55449EBASE, SWITCH
main55449-52010-B0i199908-200208
MD.GRAY,TRIM1#
main55449-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main55449-52010-B3i200212-200512
DK.GRAY,TRIM1#
main55449-52010-E0i200208-200512
SANDAL WOOD,TRIM4#
55539ACOVER, SPARE SWITCH HOLE
main55539-32010-B5i199908-200208
LT. AMETHYST,TRIM9#
sub55539-32030
main55539-32010-B7i199908-200208
MD.GRAY,TRIM1#
sub55539-32030
main55539-32010-E8i200208-200512
MD.NEUTRAL BONE,TRIM4#
sub55539-32030
main55539-32010-P5i200212-200512
MD.GRAY,TRIM1#
sub55539-32030
55539JCOVER, SPARE SWITCH HOLE
main55539-32010-B5i199908-200208
LT. AMETHYST,TRIM9#
sub55539-32030
main55539-32010-B7i199908-200208
MD.GRAY,TRIM1#
sub55539-32030
main55539-32010-E8i200208-200512
MD.NEUTRAL BONE,TRIM4#
sub55539-32030
main55539-32010-P5i200212-200512
MD.GRAY,TRIM1#
sub55539-32030
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-52020-B0i199908-200208
BLUE GRAY,TRIM1#
main58808-52020-B1i199908-200208
MD.CHARCOAL,TRIM9#
main58808-52020-B4i200212-200512
DK.GRAY,TRIM1#
main58808-52020-E0i200208-200512
SANDAL WOOD,TRIM4#
main58808-52040-B2i200208-200212
W(CHROME PLATED),BLUE GRAY,TRIM1#
main58808-52040-E0i200208-200212
W(CHROME PLATED),SANDAL WOOD,TRIM4#
main58808-52050-B0i200212-200512
W(CHROME PLATED),DK.GRAY,TRIM1#
main58808-52050-E0i200212-200512
W(CHROME PLATED),SANDAL WOOD,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-52010i200208
58871CUSHION, CONSOLE BOX
main58871-20060i200208
58901ABOX SUB-ASSY, CONSOLE, REAR
main58911-52010-B0i199908-200208
MD.GRAY,TRIM1#
main58911-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main58911-52010-B3i200212-200512
DK.GRAY,TRIM1#
main58911-52010-E0i200208-200512
SANDAL WOOD,TRIM4#
main58911-52020-B0i200208-200212
W(CHROME PLATED),MD.GRAY,TRIM1#
main58911-52020-B2i200212-200512
W(CHROME PLATED),DK.GRAY,TRIM1#
main58911-52020-E0i200208-200512
W(CHROME PLATED),SANDAL WOOD,TRIM4#
58917ACOVER, CONSOLE BOX, REAR
main58917-52010-B0i200208-200212
MD.GRAY,TRIM1#
main58917-52010-B1i199908-200208
LT.AMETHYST,TRIM9#
main58917-52010-B3i200212-200512
DK.GRAY,TRIM1#
main58917-52010-E0i200208-200512
SANDAL WOOD,TRIM4#
9015960431
main90159-60431
9018905054
main90189-05054
9046710161
main90467-10161

11 parts on this diagram · 1 diagram in section
