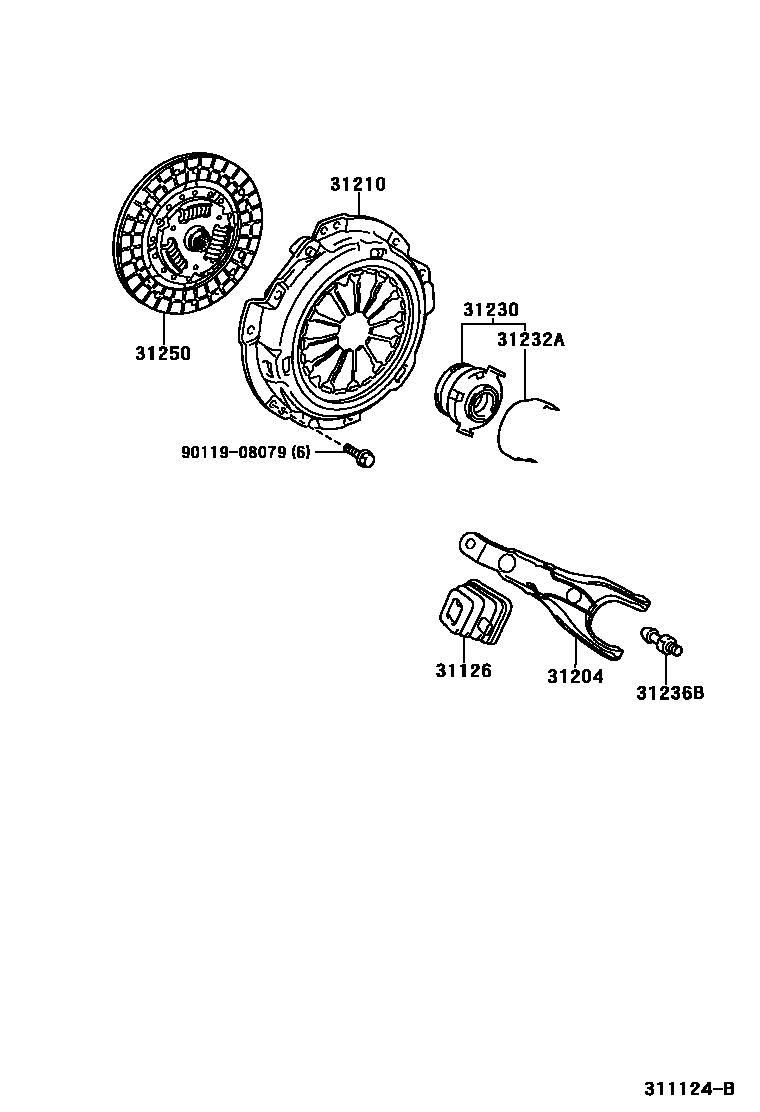

Toyota YARIS/ECHO 4D — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP1#..MTM199908-200208

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP1#..MTM199908-200208

31210COVER ASSY, CLUTCH

main31210-12191iNCP12..MTM199908-200406

main31210-12192iNCP12..MTM..ARL200407-200601

main31210-12210iNCP11..MTM199908-200601

main31210-27040iNCP12..MTM..ARL200411-200503

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP1#..MTM200109-200512

main31230-52020iNCP1#..MTM199908-200109

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP1#..MTM200109-200512

main31232-52020iNCP1#..MTM199908-200109

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP1#..MTM199908-200208

31250DISC ASSY, CLUTCH

main31250-12360iNCP12..MTM199908-200506

main31250-12361iNCP12..MTM200507-200601

main31250-12391iNCP11..MTM199908-200206

main31250-12392iNCP11..MTM200206-200601

main31250-52090iNCP12..MTM..ARL200411-200503

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
