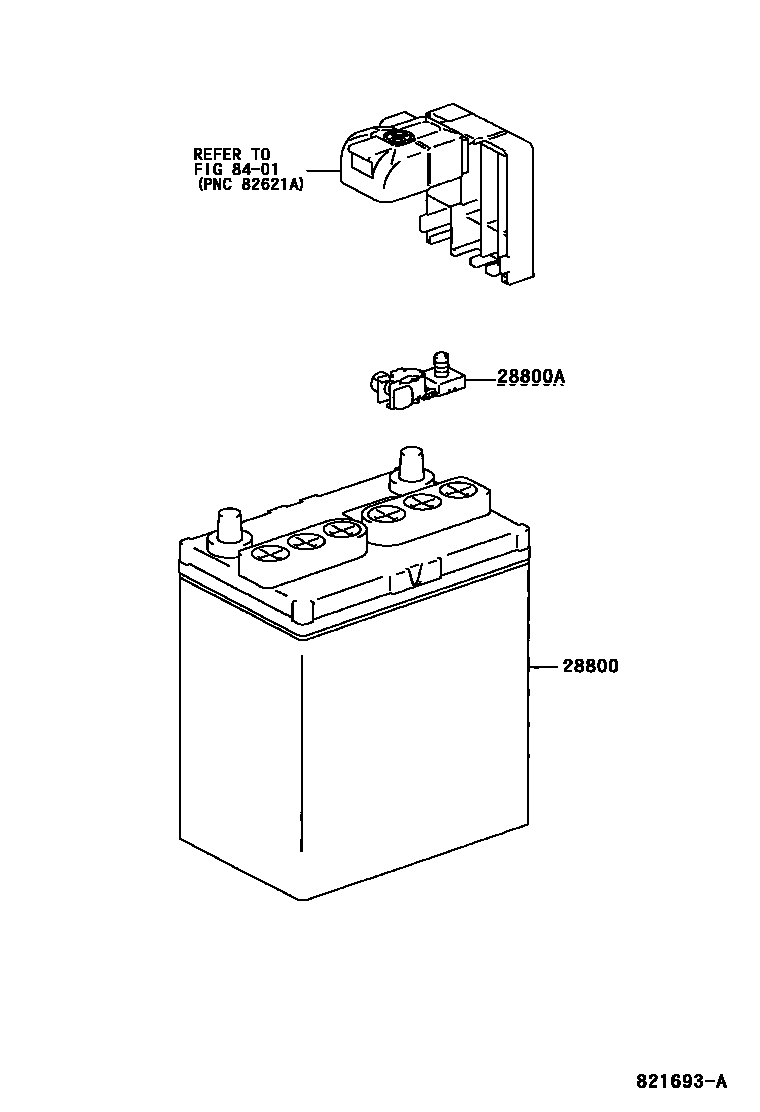

Toyota YARIS/ECHO 4D — BATTERY & BATTERY CABLE

28800BATTERY

main28800-21070i199908-200208

34B19R(S)

main28800-21100i199908-200001

46B24R(S),MATSUSHITA

main28800-74200i199908-200103

34B19R(S)

main28800-74201i200208-200601

34B19R(S)

main28800-74231i200208-200601

46B24R(S),FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i199908-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota YARIS/ECHO 4D

This section contains 3 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota YARIS/ECHO 4D. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, SWITCH & RELAY & COMPUTER.
