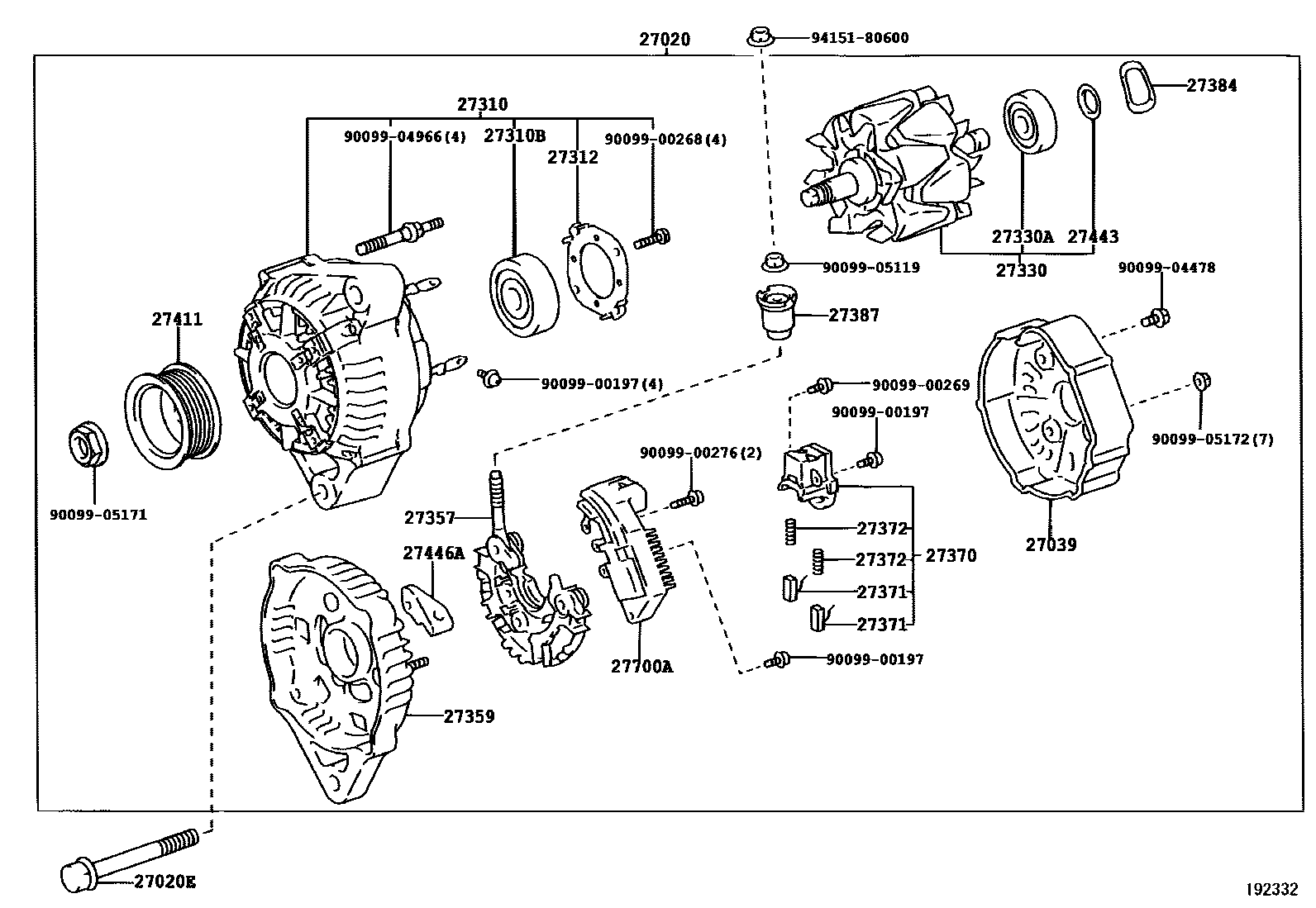

Toyota YARIS/ECHO 4D — ALTERNATOR

27020ALTERNATOR ASSY

main27060-21030i200208-200305

12V 80A

main27060-21031i200305-200311

12V 80A

main27060-21040i199908-200208

12V 70A

main27060-21041i200305-200601

12V 70A

main27060-21140i200311-200601

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i199908-200208

27039COVER, ALTERNATOR REAR END

main27039-21020i199908-200104

main27039-21060i200104-200208

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-21020i199908-200208

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10220i199908-200208

27312PLATE, RETAINER

main27312-72100i199908-200208

27330ROTOR ASSY, ALTERNATOR

main27330-16390i200208-200601

12V 80A

main27330-67100i199908-200208

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10216i199908-200208

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-21060i200204-200208

main27357-22050i200208-200601

12V 80A

main27357-67100i199908-200204

27359FRAME, ALTERNATOR RECTIFIER END

main27359-21020i199908-200208

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199908-200208

main27370-75060i200208-200601

12V 80A

27371BRUSH, ALTERNATOR

main27371-70300×2i199908-200208

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i199908-200012

main27372-87501×2i200012-200208

27384WASHER

main27384-16380i199908-200208

27387INSULATOR, TERMINAL

main27387-70171i199908-200208

27411PULLEY, ALTERNATOR

main27411-11060i200208-200305

12V 80A

main27411-21030i200305-200601

12V 80A

main27411-65010i199908-200208

12V 70A

main27411-70140i200305-200601

12V 70A

27443COVER, ALTERNATOR BEARING

main27443-63020i199908-200208

27446ACLAMP

main27446-21020i199908-200208

27700AREGULATOR ASSY, GENERATOR

main27700-21010i200208-200601

12V 80A

main27700-21020i199908-200208

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9415180600

main94151-80600

29 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota YARIS/ECHO 4D

This section contains 29 genuine Toyota parts for the ALTERNATOR system of the Toyota YARIS/ECHO 4D. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
