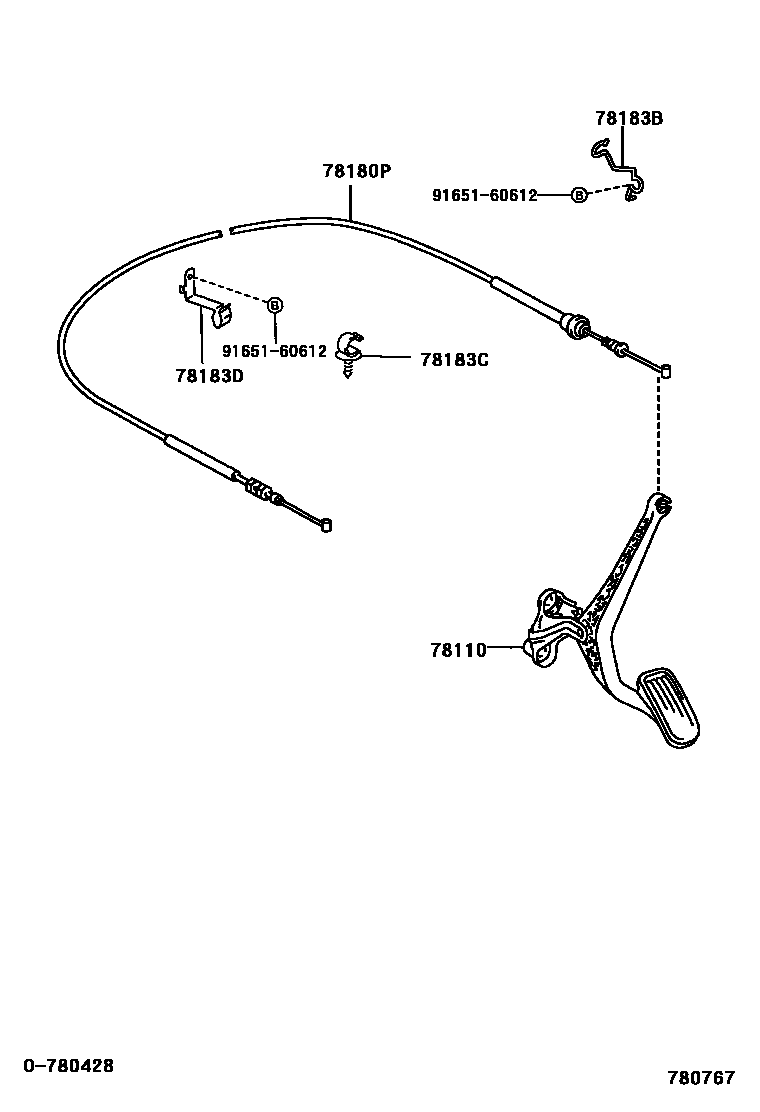

Toyota YARIS/ECHO 4D — ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iNCP1#..RHD199908-200208

main78120-52060iNCP1#..LHD199908-200208

main78120-52110iNCP1#..RHD200403

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52010iNCP1#..LHD199908-200208

main78180-52011iNCP1#..LHD200510-200601

main78180-52030iNCP1#..RHD200208-200601

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-52080iNCP1#..RHD199908-200208

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52060iNCP1#..LHD199908-200110

main78183-52070iNCP1#..RHD200208

main78183-52140iNCP1#..LHD200208

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52030iNCP1#199908-200109

main78183-52120iNCP1#200109-200208

9165160612

main91651-60612

6 parts on this diagram · 2 diagrams in section
