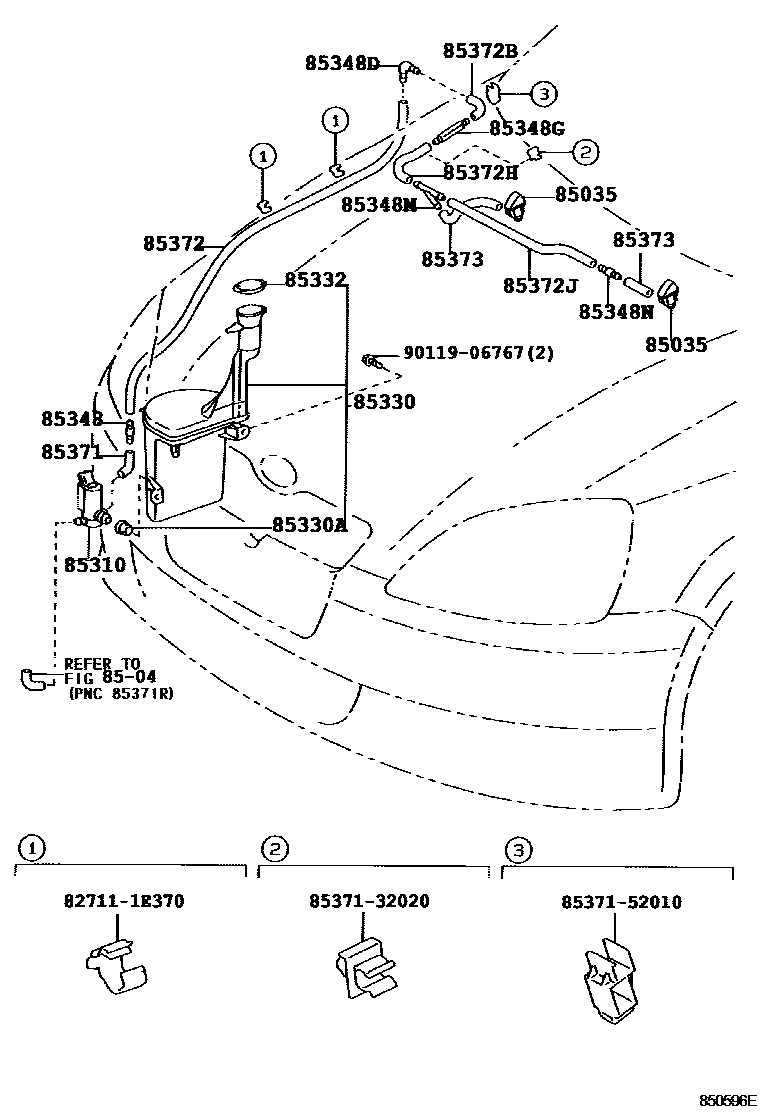

Toyota YARIS/ECHO (3D,5D) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
W(REAR WIPER)
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=50)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=1070)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=150)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=325)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1800(*H,L=550)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=100)
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-32020
8537152010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52010
9011906767
main90119-06767
21 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota YARIS/ECHO (3D,5D)
This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota YARIS/ECHO (3D,5D). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
