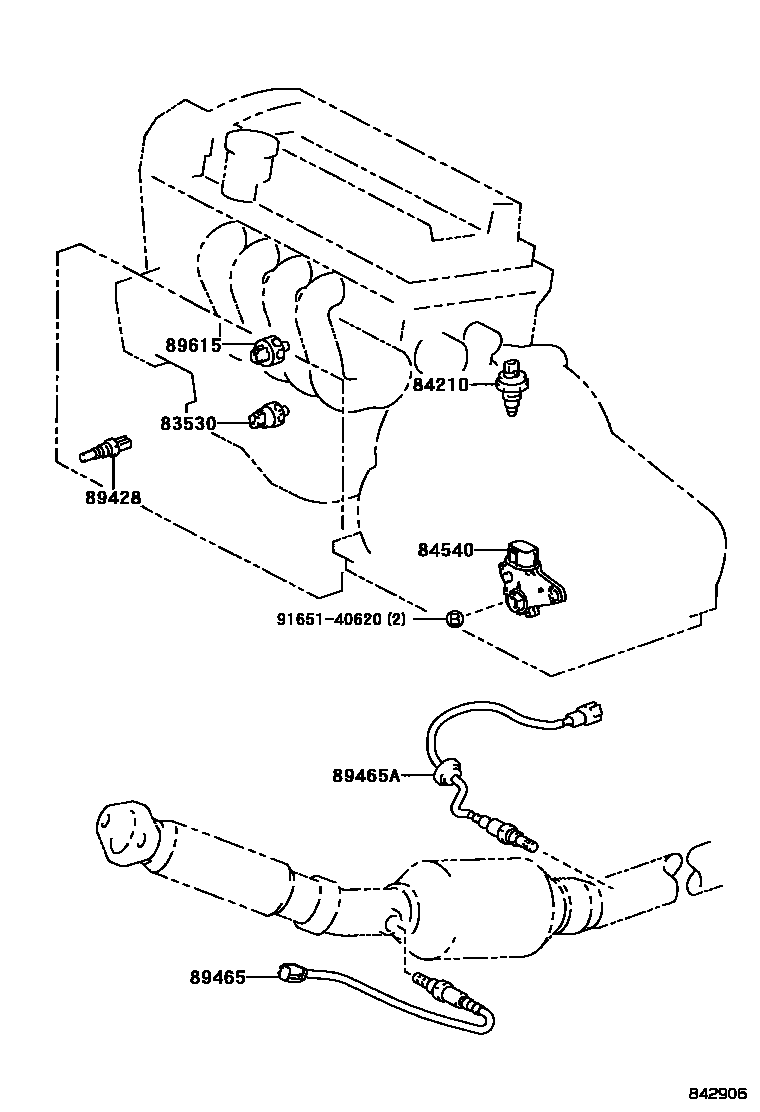

Toyota YARIS/ECHO (3D,5D) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP1#,SCP10199903-200212

DENSO

main83530-60020iNCP1#,SCP10199903-200212

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP1#..MTM199908-200212

sub84210-52050

main84210-60030iSCP10..MTM199903-200212

84540SWITCH ASSY, NEUTRAL START

main84540-52010iNCP10,SCP10..ATM199903-200212

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iNCP10..GEN200212

89465SENSOR, OXYGEN

main89465-52010iSCP10200212

main89465-52050iNCP1#199908-200212

main89465-52190iNCP1#200212

89465ASENSOR, OXYGEN NO.2

main89465-52060iNCP10199908-200212

PART NUMBER LABEL=89465-52060

main89465-52120iNCP10199908-200212

PART NUMBER LABEL=89465-52120

main89465-52200iNCP1#200212

89615SENSOR, KNOCK CONTROL

main89615-22050iNCP10199908-200007

TOYOTA

main89615-52010iSCP10200212

main89615-52030iNCP1#200007-200212

DENSO

main89615-52040iNCP1#200007-200212

TOYOTA

9165140620

main91651-40620

8 parts on this diagram · 11 diagrams in section
