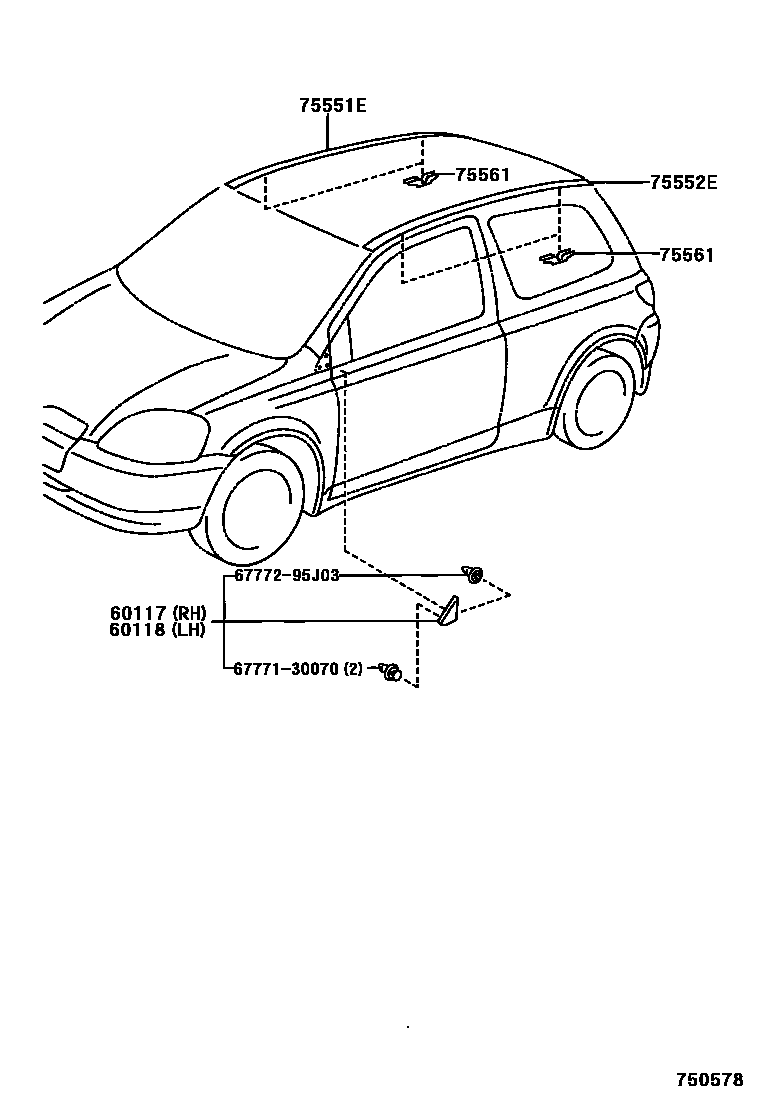

Toyota YARIS/ECHO (3D,5D) — SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52010i199903-200212

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-52010i199903-200212

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52010i199903-200212

main75551-52011i200307

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75551-52010i199903-200212

main75551-52011i200307

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52010×4i199903-200003

main75561-52020×4i200003-200212

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

7 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota YARIS/ECHO (3D,5D)

This section contains 7 genuine Toyota parts for the SIDE MOULDING system of the Toyota YARIS/ECHO (3D,5D). Key components include: COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1.
