Toyota YARIS/ECHO (3D,5D) — PARTIAL ENGINE ASSEMBLY

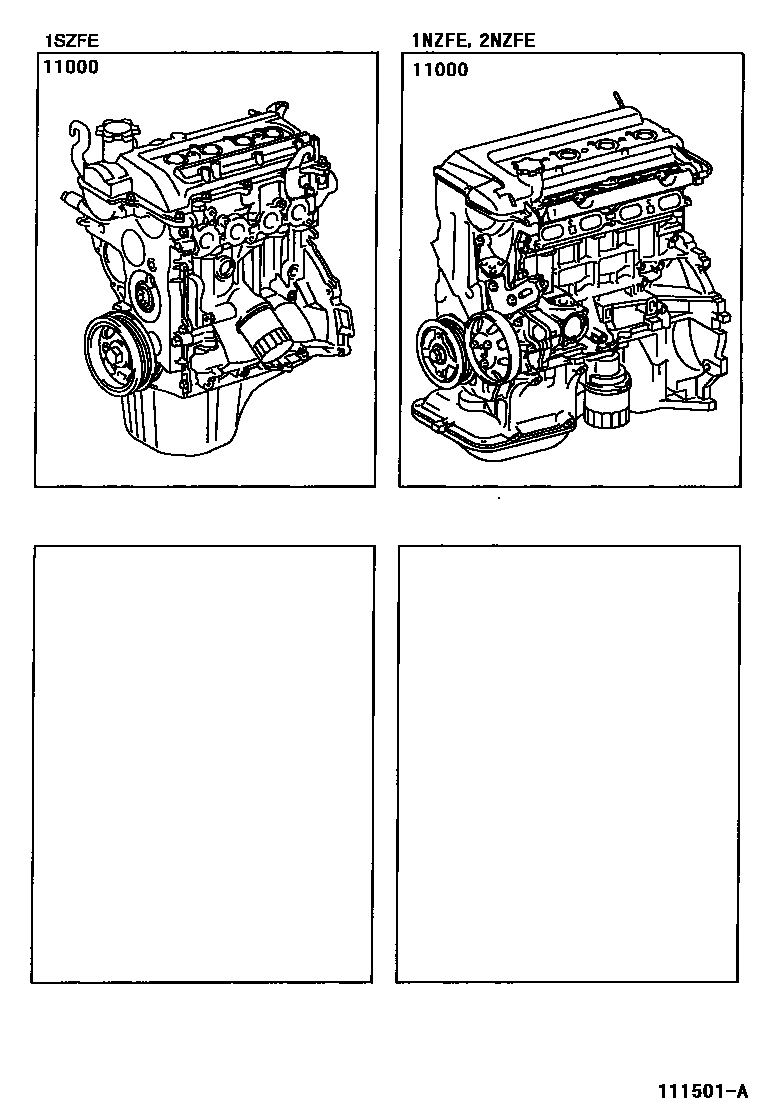

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21040i199908-200002
main19000-21041i200002-200008
sub19000-21042
main19000-21060i199908-200002
LEADED GASOLINE SPEC
main19000-21061i200002-200008
LEADED GASOLINE SPEC
main19000-21062i200008-200212
LEADED GASOLINE SPEC
sub19000-21063
sub12204-21011
main19000-21110i200312-200508
FOR GENERAL(LEADED GASOLINE SPEC)
sub19000-21C21
sub12204-21011
main19000-21160i200008-200212
sub19000-21161
sub12204-21011
main19000-21191i200101-200212
main19000-21210i200212-200508
sub19000-21621
sub12204-21011
main19000-21230i200212-200312
sub12204-21011
main19000-21231i200312-200508
main19000-21690i200212-200312
FOR GENERAL(LEADED GASOLINE SPEC)
sub89422-16010
main19000-23090i199903-200001
main19000-23091i200001-200105
main19000-23120i200212-200312
main19000-23210i200312-200508

1 parts on this diagram · 1 diagram in section
